162 Rockwell Automation Publication 1756-UM540E-EN-P - December 2017
Chapter 8 Calibrate the ControlLogix Analog I/O Modules

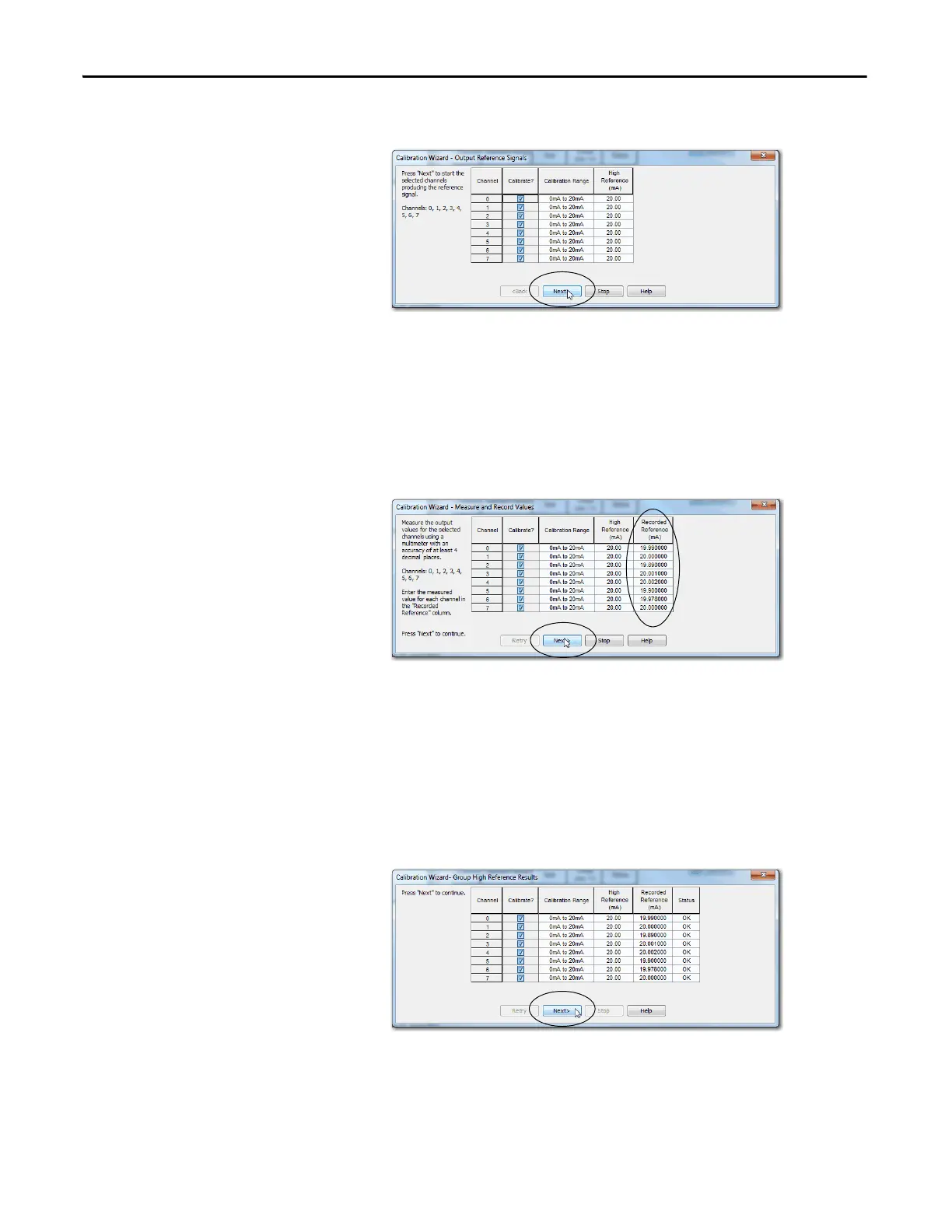

13. Click Next.
The Measure and Record Values dialog box appears.
14. For each channel being calibrated, use your current meter to measure the
reference value of each channel individually.
15. In the Recorded Reference (mA) column record the measured value for
each channel that was recorded and click Next.
The Group High Reference Results dialog box indicates the status of each
channel. If the status is not OK for any channels, repeat the
calibration process.
If the error persists indefinitely, click Stop to exit calibration. The channel
remains calibrated to the accuracy level achieved at factory calibration.
16. Click Next.
The Calibration Completed dialog box indicates the status of each
channel.
