Chapter 7 Configure ControlLogix Analog I/O Modules
1756-IRT8I Module
For information on this tab’s configurable parameters, see Chapter 4,
Temperature-sensing Analog Modules
on page 59.

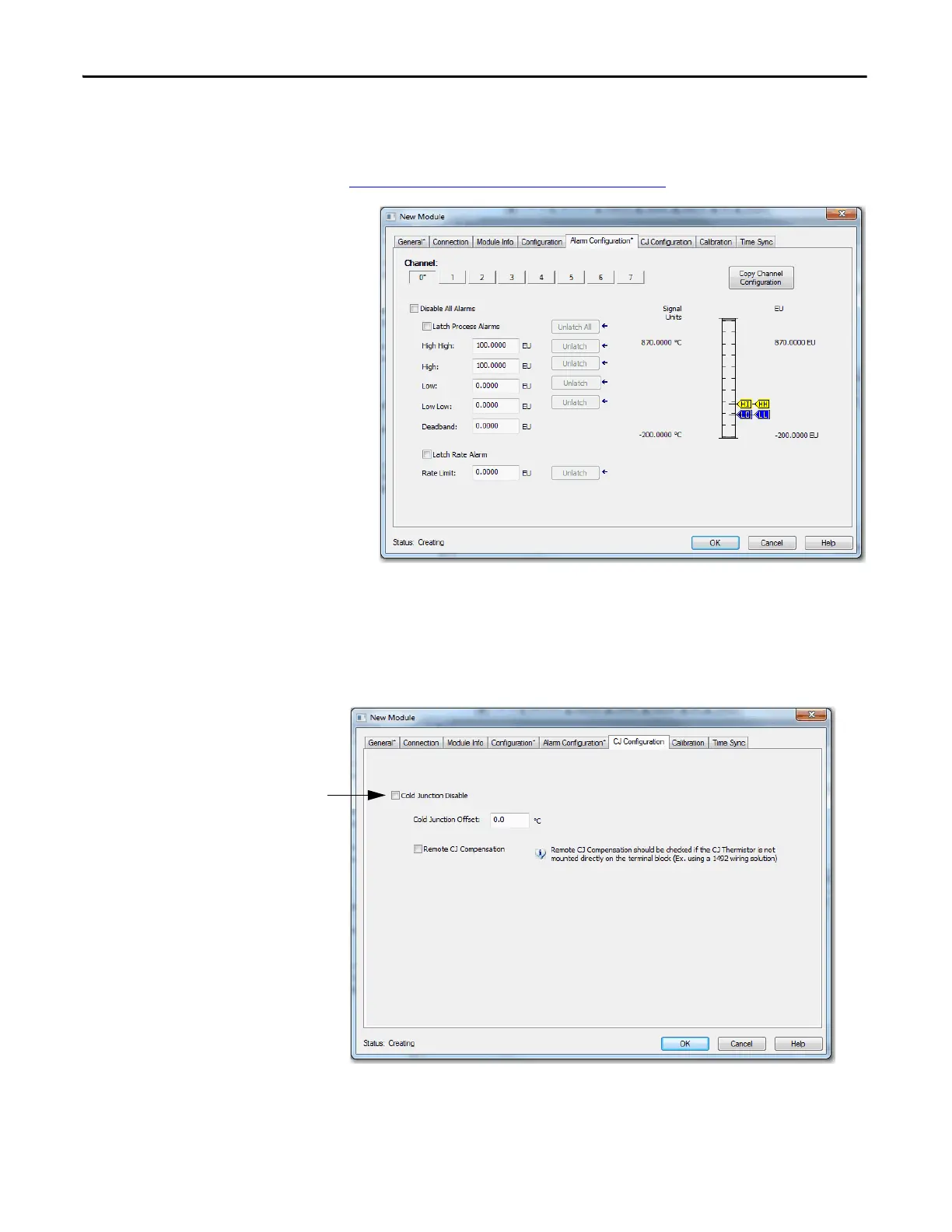

CJ Configuration Tab
The CJ Configuration tab is available with the 1756-IRT8I and 1756-IT16
modules. You use this tab to configure the cold junction compensation option.
IMPORTANT: If all channels on
the module use the RTD input
type, the Cold Junction Disable
option appears dimmed and the
checkbox is automatically
checked.
