86 Rockwell Automation Publication 1756-UM540E-EN-P - December 2017
Chapter 4 Temperature-sensing Analog Modules
1756-IT16 Diagrams

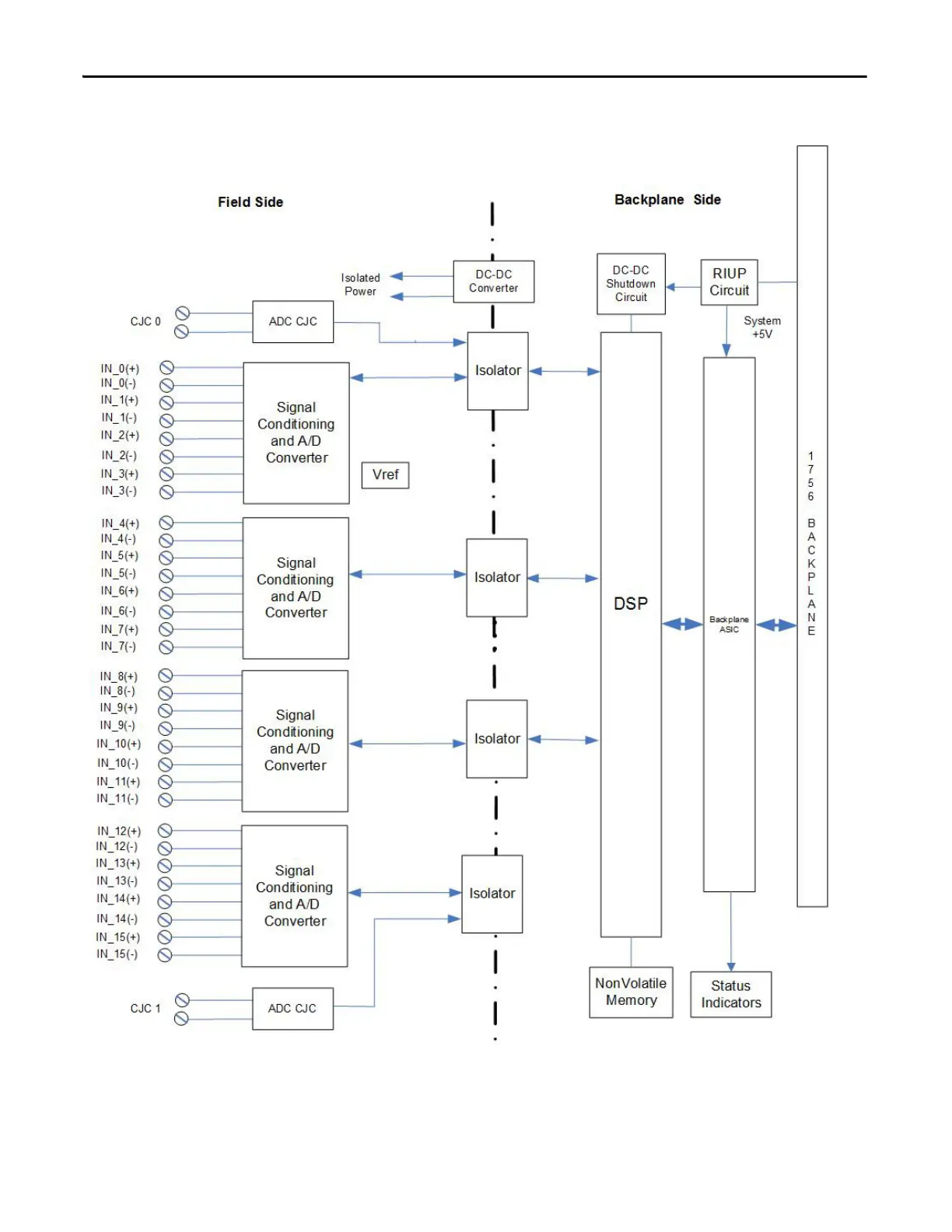

Figure 23 - 1756-IT16 Module Block Diagram
