140 Rockwell Automation Publication 1756-UM540E-EN-P - December 2017
Chapter 7 Configure ControlLogix Analog I/O Modules

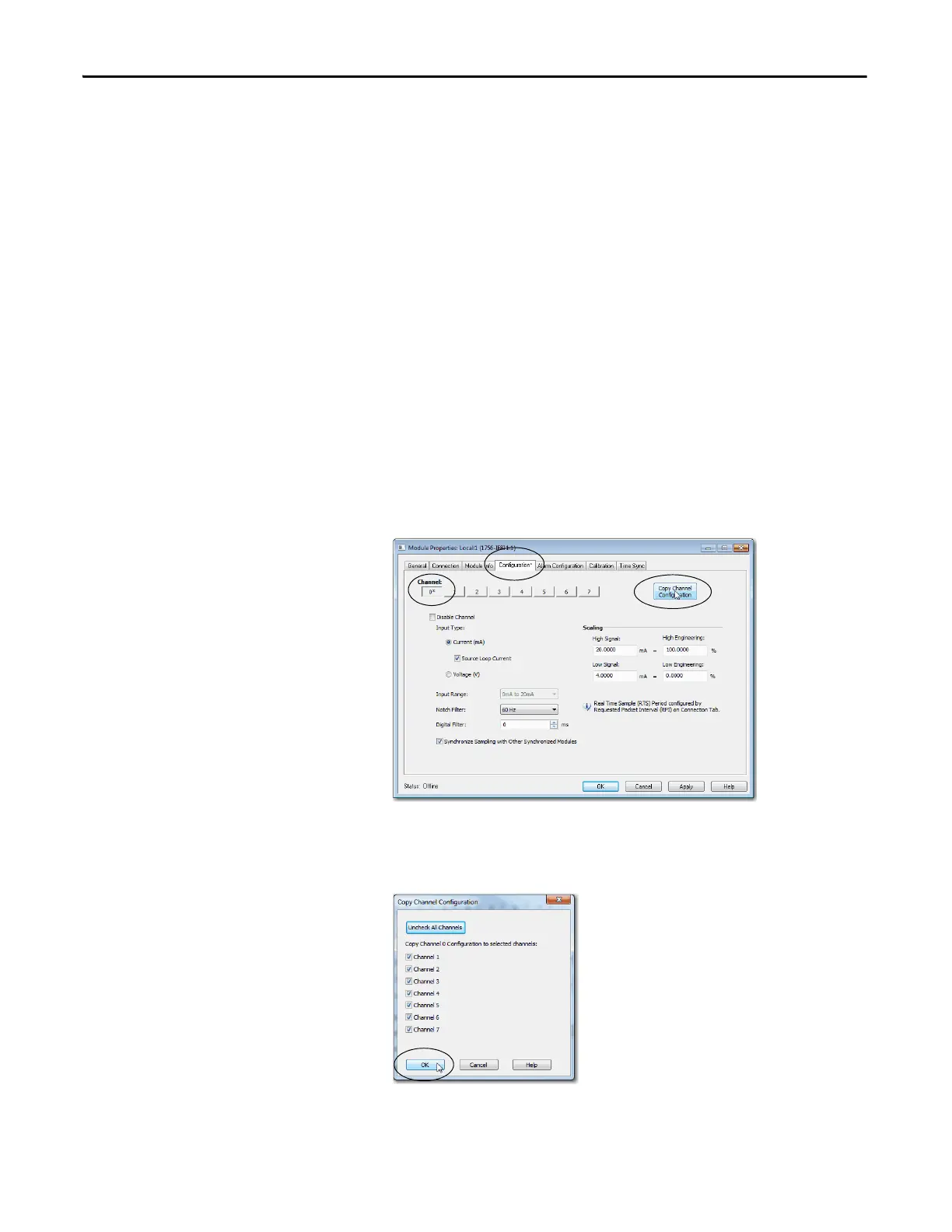

The Copy Channel Configuration feature copies all channel configuration from
one channel to one or more other channels. For example, if you use the Copy
Channel Configuration feature on the Configuration tab for a 1756-IF8I
module, the configuration values on the Configuration tab and the Alarm
Configuration tab are copied to the selected channels.
Complete the following steps to copy channel configuration from one channel
to others.
1. Verify that your controller is not in Run mode.
If so, change it to Remote Run, Remote Program, or Program mode, as
applicable to your system.
2. Access the Module Properties dialog box.
3. Click the Configuration tab and make the required configuration changes.
In this example, the channel 0 configuration for a 1756-IF8I module is
copied to all other channels on the module.
4. Click Copy Channel Configuration.
5. Click the channels to which you want to copy channel configuration and
click OK.
The configuration is copied to the other channels.
