56 Rockwell Automation Publication 1756-UM540E-EN-P - December 2017
Chapter 3 1756-IF8I Isolated Analog Input Module

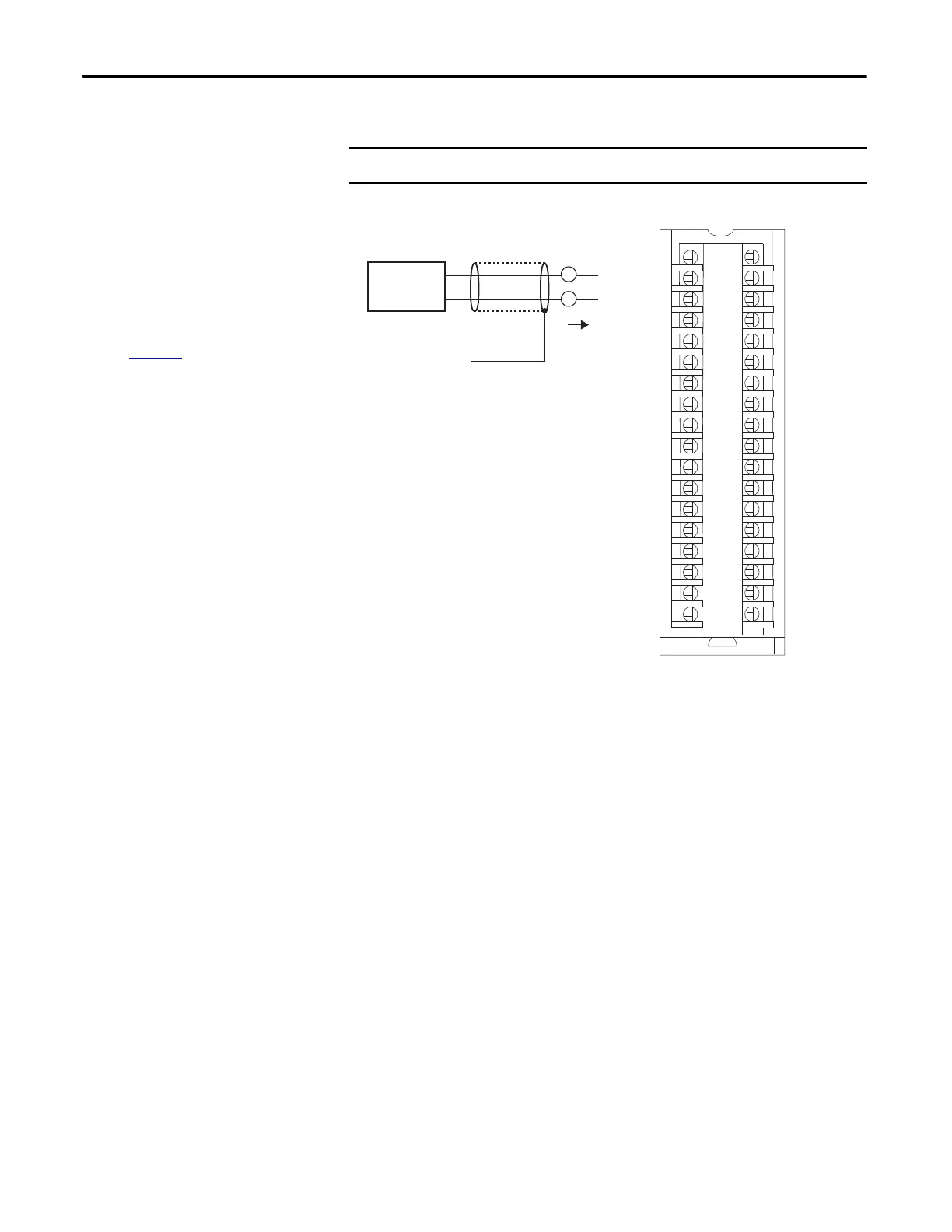

Figure 10 - 1756-IF8I Module Wiring Diagram -Current Mode with Internal Loop Power
IMPORTANT
In this wiring diagram, the module provides 24V DC loop power.
i
+
-
A
A
1
3
5
7
019
1112
4131
6151
8171
0291
2212
4232
6252
8272
0392
2313
33
6353
2
34
8
6
4
IN_0/V
IN_0/I/SRC
RTN-0
Not used
IN_2/V
IN_2/I/SRC
RTN_2
Not used
Shield Ground
IN_4/V
IN_4/I/SRC
RTN-4
Not used
IN_6/V
IN_6/I/SRC
RTN_6
Not used
Not used
Not used
IN_1/V
IN_1/I/SRC
RTN-1
Not used
IN_3/V
IN_3/I/SRC
RTN_3
Not used
IN_5/V
IN_5/I/SRC
RTN-5
Not used
IN_7/V
IN_7/I/SRC
RTN_7
Not used
Not used
Not used
IMPORTANT: Remember the following:
If separate power sources are used, do
not exceed the specific isolation
voltage. For more information on
module specifications, see the 1756
ControlLogix I/O Specifications
Technical Data, publication
1756-TD002
.
Place additional loop devices, for
example, strip chart recorders, at either
A’ location in the current loop.
2-wire
Transmi tter
