Rockwell Automation Publication 1756-RM011A-EN-P - June 2016 35
RTB Wiring Appendix A

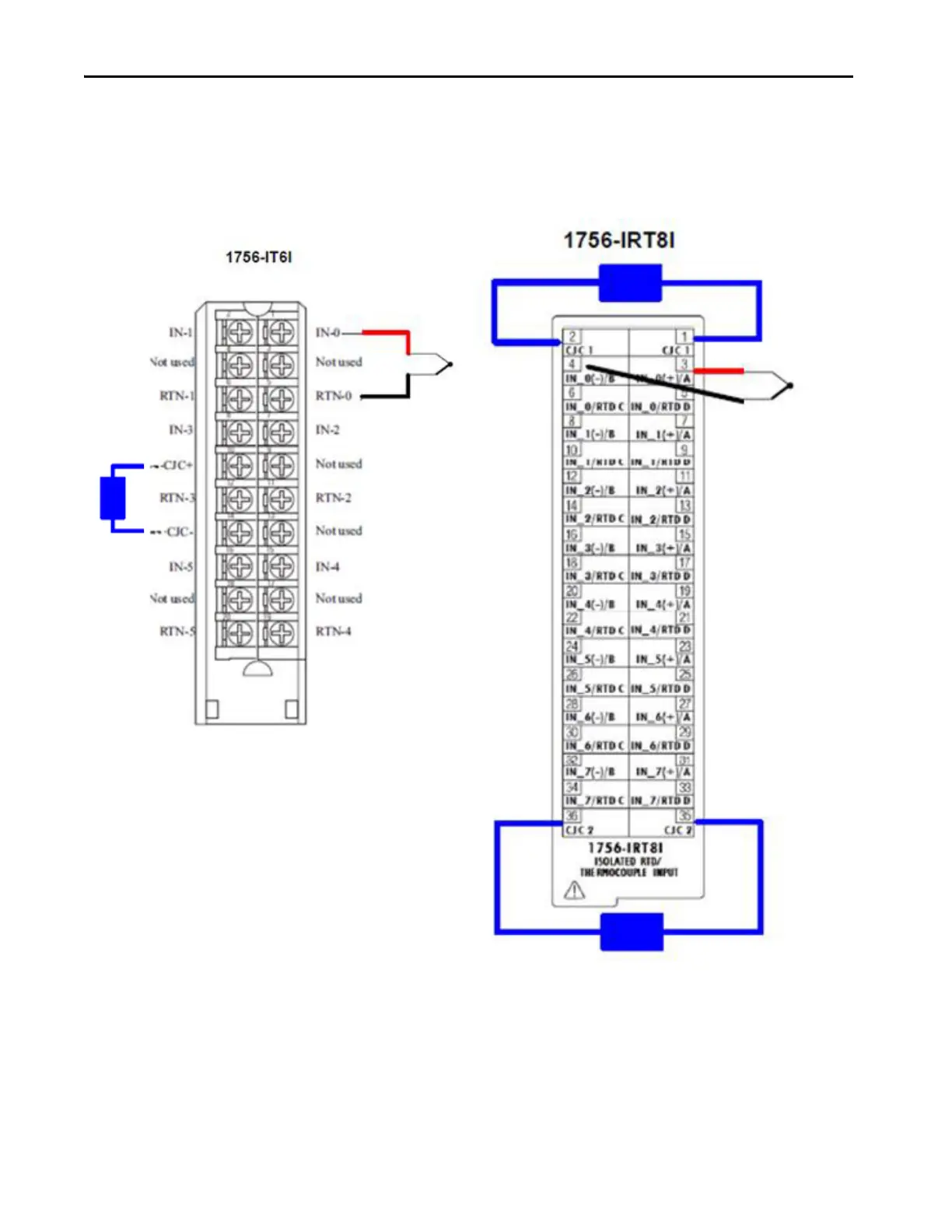

1756-IT6I to 1756-IRT8I TC or mV
CJC only needed if
using 1 or more
Thermocouples
