32 Rockwell Automation Publication 1756-RM011A-EN-P - June 2016
Appendix A RTB Wiring

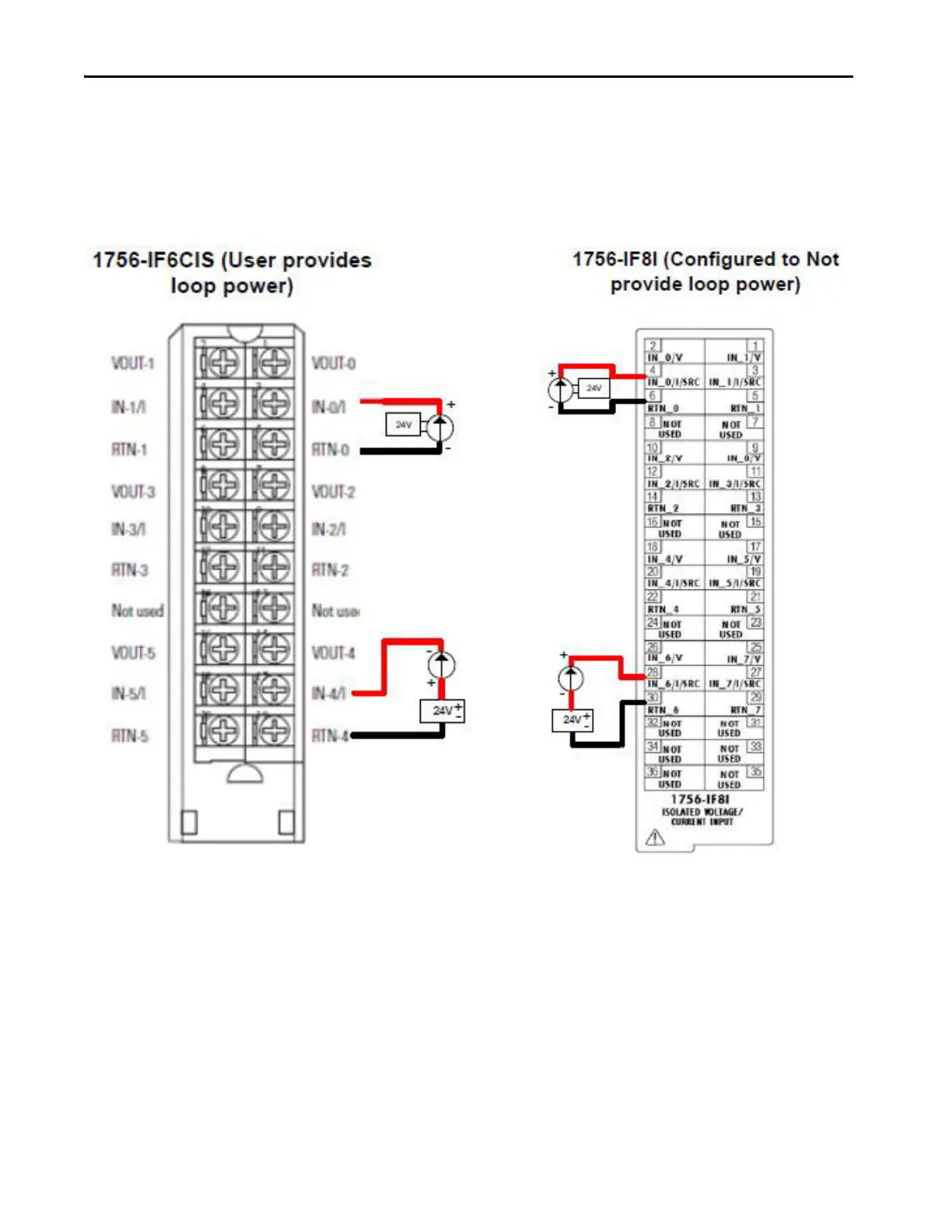

1756-IF6CIS to 1756-IF8I User Supplied Loop Power
4-Wire
Transmitter
2-Wire
Transmitter
