Analog Output Module 17
Publication 1762-IN016D-EN-P - June 2013
Type/Range Select (Bits 11…8)
These bits indicate the type and range as in the following table. Other combinations of these bits
are not supported and result in an error.
Configuration via RSLogix 500

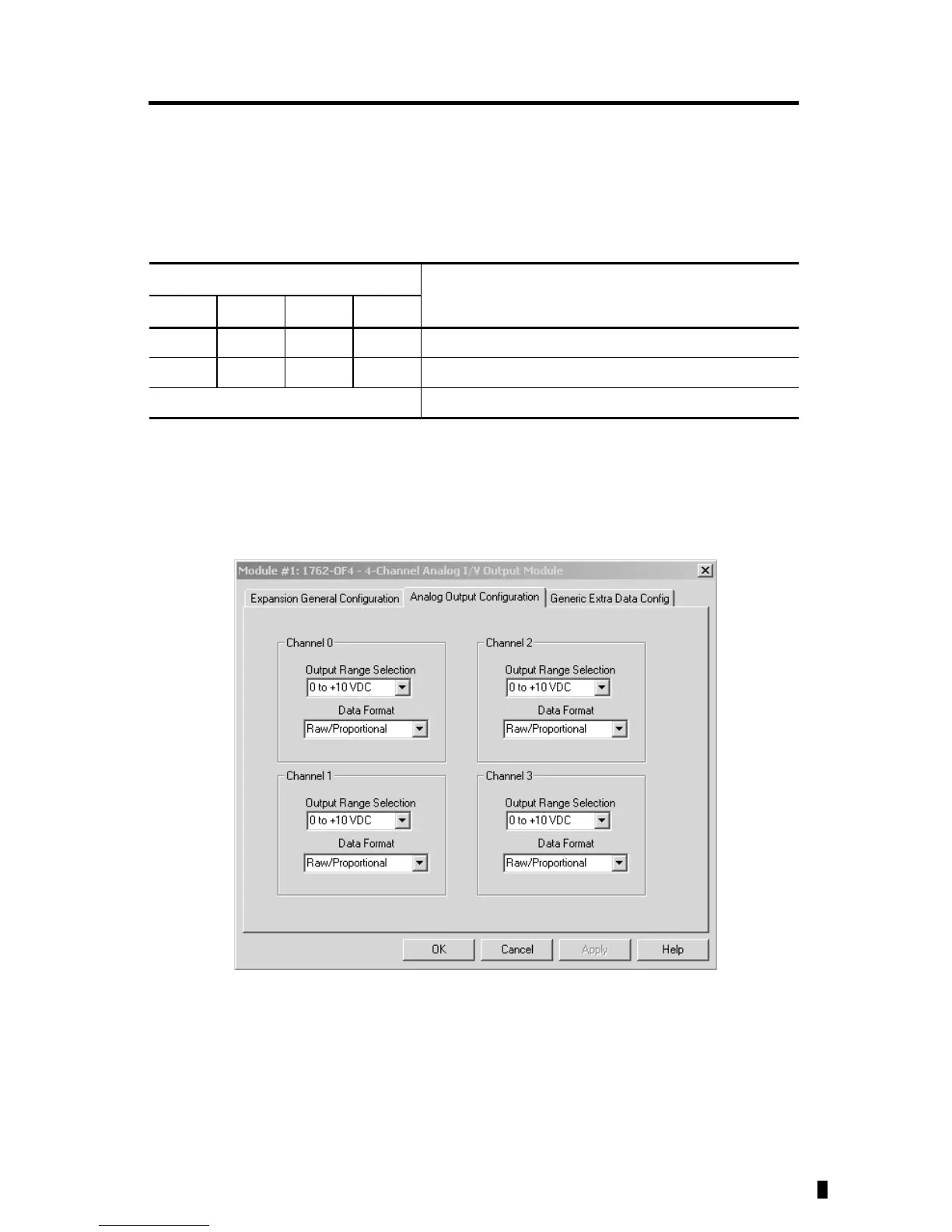

The module can be configured using RSLogix 500 programming software, as shown below.
Bit Settings Data Format
11 10 9 8
0000Voltage Mode 0…10V DC
0011Current Mode 4…20 mA
other Not Supported
