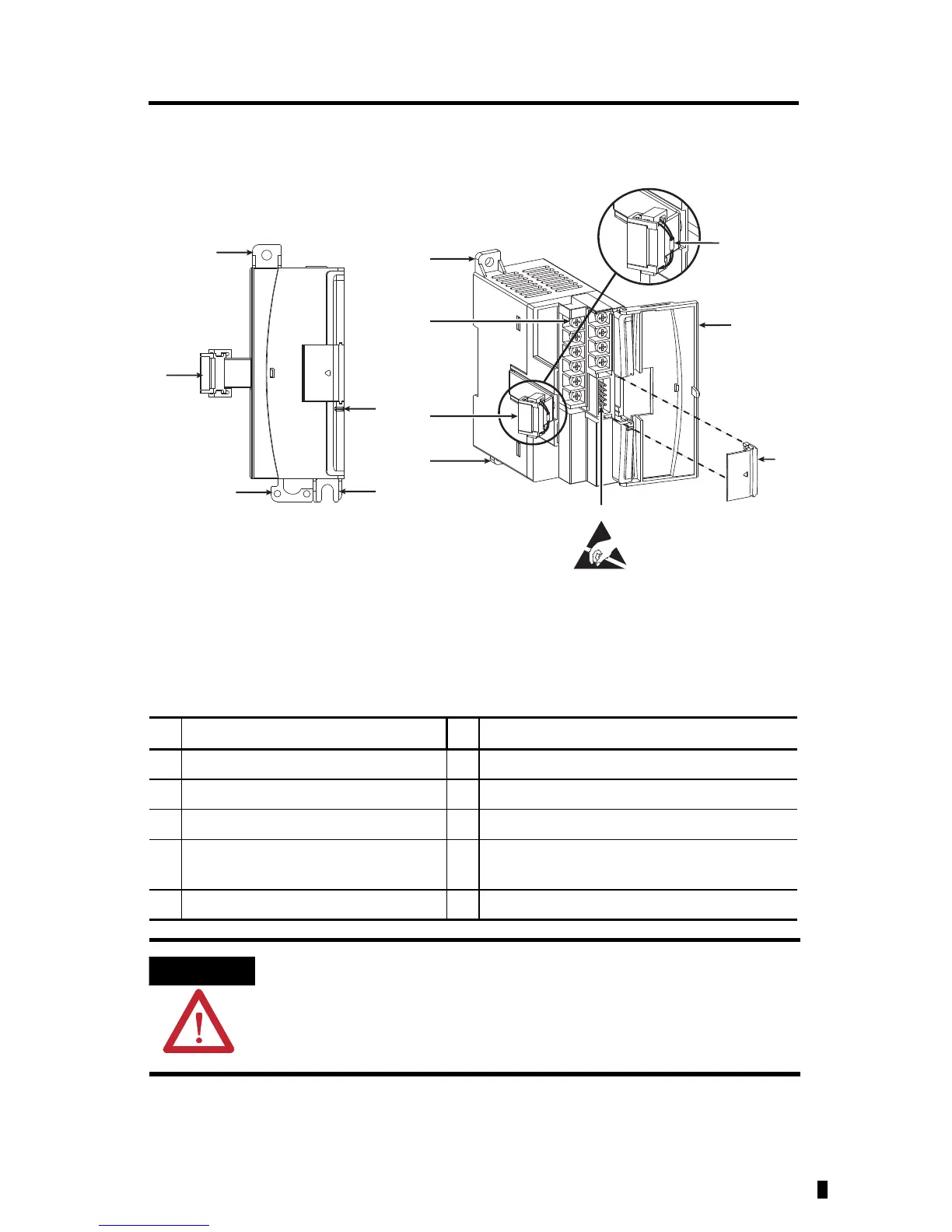

Allen-Bradley 1762-OF4 - Module Description; Component Identification and Features

Analog Output Module 7
Publication 1762-IN016D-EN-P - June 2013
Module Description
Description Description
1a upper panel mounting tab 5 pull loop
1b lower panel mounting tab 6 module door with terminal identification label
2 power diagnostic LED 7 bus connector cover
3 flat ribbon cable with bus connector
(female)
8 bus connector
with male pins
4 DIN rail latch 9 terminal block
ATTENTION
To comply with UL restrictions, this equipment must be powered from a source
compliant with Class 2 or Limited Voltage/Current.
1a
4
7
8
6
3
9
5
Left side view
Front view
This equipment is sensitive to electrostatic discharge (ESD).
Follow ESD prevention guidelines when handling this equipment.
45180
1a
1b
3
4
2
45156
