Allen-Bradley 1771-ASB User Manual

Addressing Modes for Your Remote I/O
Chapter 3
3-2

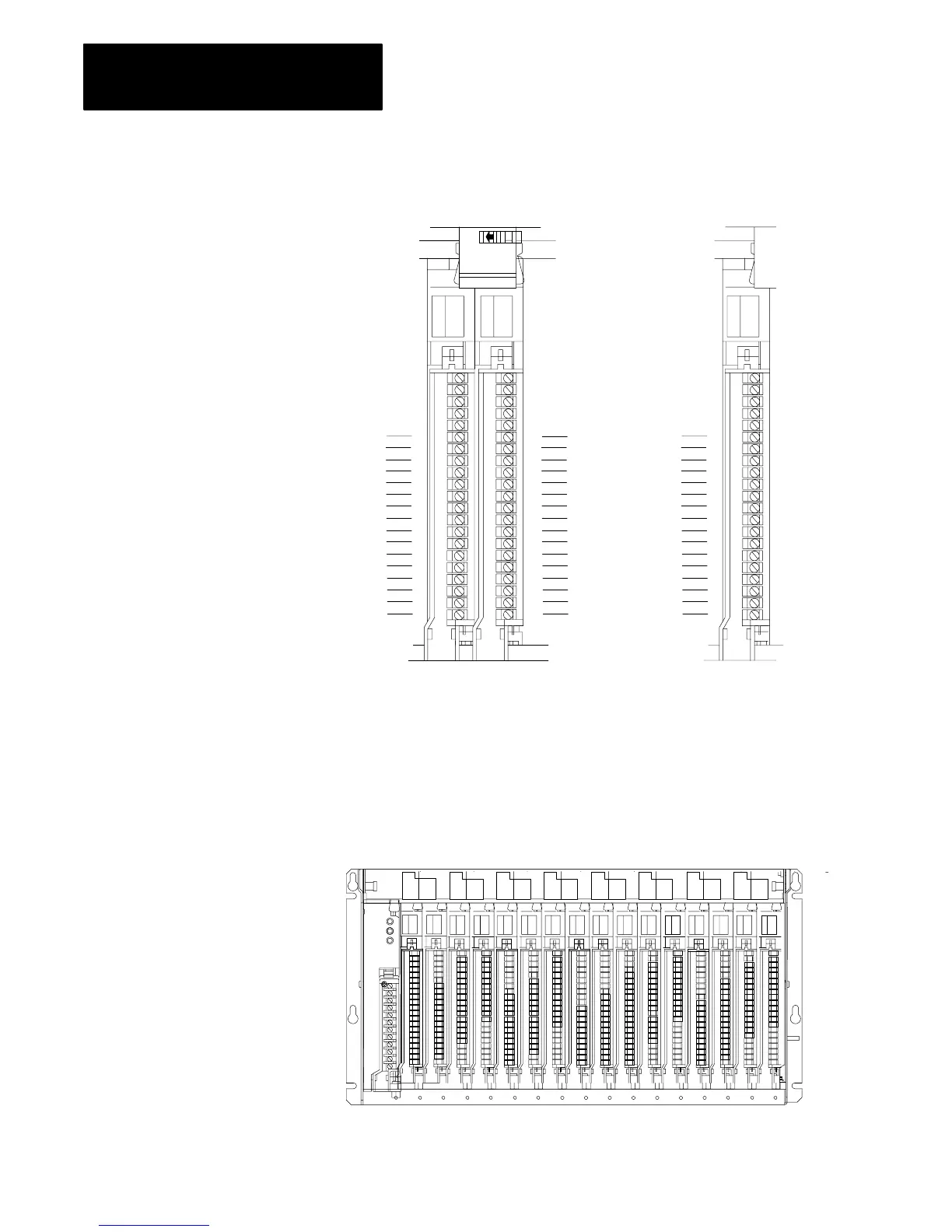

Figure 3.1
An
I/O Group  Up to 16 Input T erminals and 16 Output T erminals
00
01
02
03
04
05
06
07
10
11
12
13
14
15
16
17
00
01
02
03
04
05
06
07
10
11
12
13
14
15
16
17
Input
Terminals
Output
Terminals
00
01
02
03
04
05
06
07
10
11
12
13
14
15
16
17
Output or
Input
Terminals
13073
2slot I/O Group 1slot I/O Group
I/O racks are made up of I/O groups (Figure 3.2). An I/O rack is an
addressing unit that can contain up to eight I/O groups.
Figure 3.2
An
I/O Rack  Up to Eight I/O Groups
13074
01234567
Power Source Not Indicated
