Install and Wire Your Module Chapter 2
2080-DNET20 – 6-pin Female Terminal Block

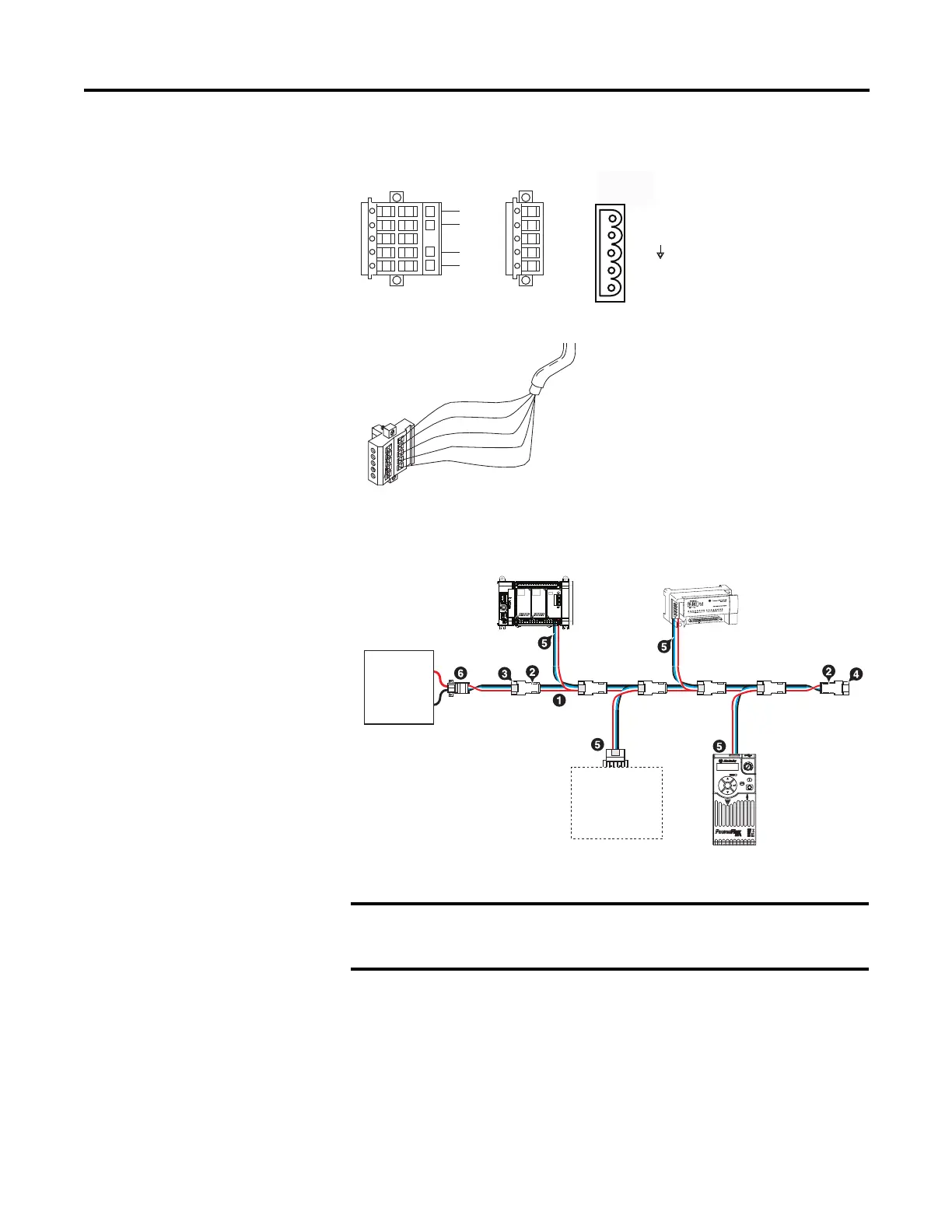

2080-DNET20: Sample network wiring using KwikLink™ Lite Flat media
Individually shielded, twisted-pair cable (or the type recommended by the
encoder or sensor manufacturer) should be used for the
2080-MOT-HSC plug-in.
Color Chips (dots)
Red Dot
Black Dot
Blue Dot
White Dot
10-position Plug
5-position Plug
D
D
D
D
D
Linear Plug
10-position
Drop Line or
DeviceNet
Trunk Cable
Red
White
Bare
Blue
Black
DeviceNet
Port Pinout
V+ (RED)
CANH (WHITE)
SHIELD
CANL (BLUE)
V- (BLACK)
Micro800 controller
CompactBlock LDX
COMM
power
supply
Component on
DeviceNet
network
PowerFlex
Drive 523 via
25-COMM-D
COMM
power
supply
1 KwikLink Lite IP20 flat media
2 Trunk line connector
3 Drop line connector
4 Terminating resistor
5 5-pin open style connector
6 Power tap with terminating resistor
