Allen-Bradley 2080-SERIALISOL User Manual

44 Rockwell Automation Publication 2080-UM004C-EN-E - March 2015
Appendix 5 DeviceNet Plug-in – 2080-DNET20
120 (394) 2.39 340 (1115) 0.85
140 (459) 2.05 360 (1181) 0.80
160 (525) 1.79 380 (1247) 0.76
180 (591) 1.60 400 (1312) 0.72
200 (656) 1.44 420 (1378) 0.69
(1) Exceeds NEC CL2/CECode 4A limit.

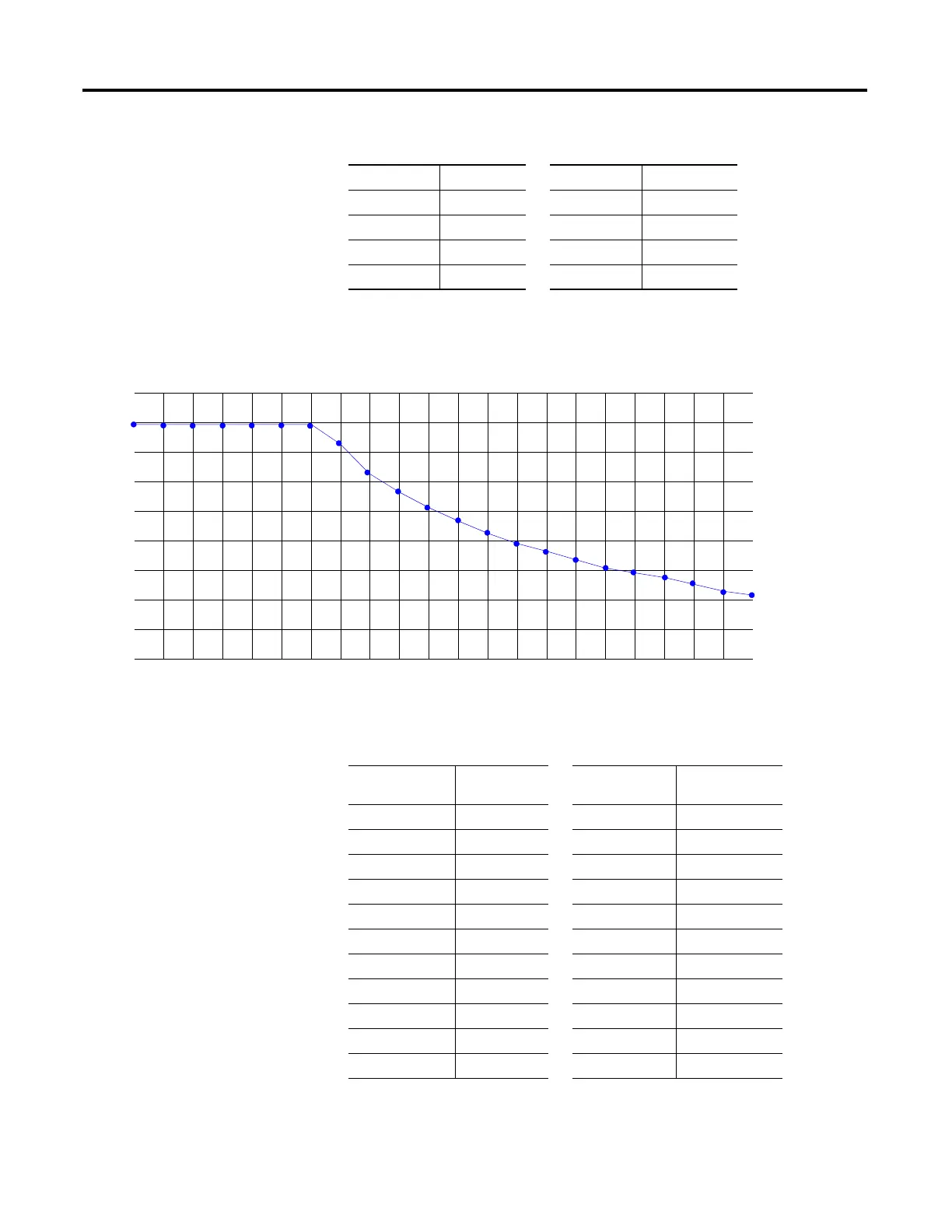

Single Source Power Supply – Trunkline Length and Maximum Current
Dual Source Power Supply (both ends – Kwiklink Lite Cable)
9.00
8.00
7.00
6.00
5.00
4.00
3.00
2.00
1.00
0.00
0 (0)
40
(131)
80
(262)
120
(394)
160
(525)
200
(656)
240
(787)
280
(919)
320
(1050)
360
(1181)
400
(1312)
Dual source power supply (both ends – Kwiklink Lite Cable)
Network length
in meters (ft)
Current, max Network length
in meters (ft)
Current, max
0 (0) 8.00
(1)
(1) Exceeds NEC CL2/CECode 4A limit.
220 (722) 4.69
20 (66) 8.00 240 (787) 4.30
40 (131) 8.00 260 (853) 3.97
60 (197) 8.00 280 (919) 3.69
80 (262) 8.00 300 (984) 3.44
100 (328) 8.00 320 (1050) 3.23
120 (394) 8.00 340 (1115) 3.04
140 (459) 7.35 360 (1181) 2.87
160 (525) 6.43 380 (1247) 2.72
180 (591) 5.72 400 (1312) 2.59
200 (656) 5.16 420 (1378) 2.46
