Allen-Bradley 2098-DSD-HV150 - Ultra3000 (460 V) Dimensions (2098-DSD-Hvxxx, -Hvxxxx, -Hvxxx-SE, -Hvxxx-DN

Publication 2098-IN003E-EN-P — April 2004
A-16 Specifications and Dimensions
Ultra3000 (460V) Dimensions
In the figure below, xxx is replaced by 030, 050, 100, 150, or 220 to
represent the Ultra3000 3, 5, 10, 15, and 22 kW drives respectively.

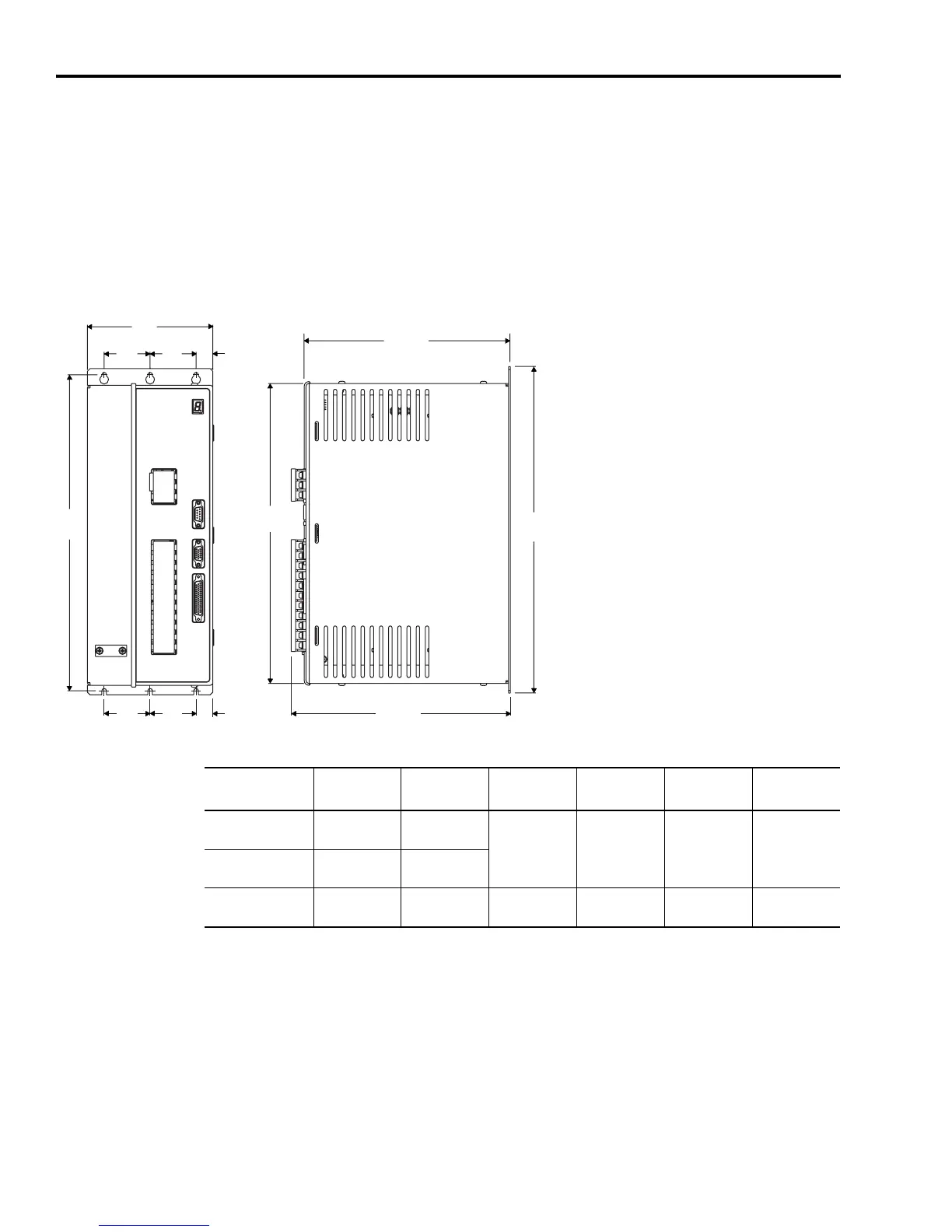

Figure A.4
Ultra3000 (460V) Dimensions (2098-DSD-HVxxx, -HVxxxX, -HVxxx-SE, -HVxxx-DN,
-HVxxxX-DN)
1
The x represents the indexing (X) option. The -xx represents the SERCOS interface (SE) or DeviceNet (DN) option.
SERCOS interface is not available with the DeviceNet option.
Ultra3000 Drive
1
2098-DSD-HV
ACBDHI
030x, 030-xx, 050x,
050-xx
138.7
5.46)
18.5
(0.73)
50.8
(2.0)
349.3
(13.75)
331.5
(13.05)
360.7
(14.2)
100x, 100-xx, 150x,
150-xx
151.6
(5.97)
25
(0.99)
220x, 220-xx
203.2
(8.0)
25.4
(1.0)
76.2
(3.0)
380.4
(14.98)
362.6
14.26)
391.8
(15.43)
225.8
(8.89)
A
C
B
B
D
I
H
242.2
(9.54)
C
B
B
Dimensions are in millimeters (inches)
Unit shown is the 2098-DSD-HV030
