Lift and Mount the Drive Chapter 3

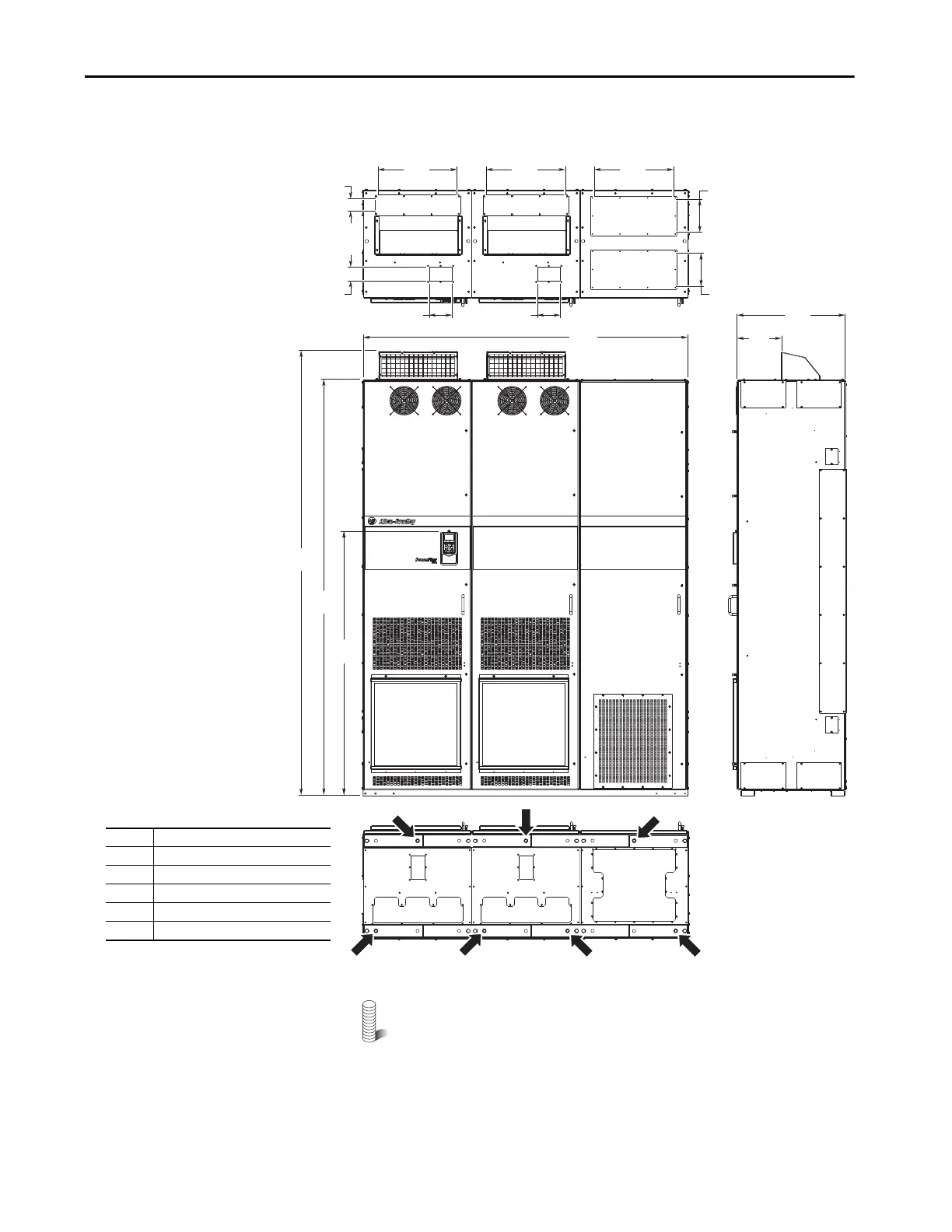

Figure 69 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 9
(Enclosure Code B with P14)
M12 (1/2 in.) Property Class 8.8 anchor hardware is recommended
to fasten the drive cabinet through its internal mounting angle to the
foundation. Anchor bolts can be pre-located and embedded in the
foundation before instillation.
600
(23.6)
240
(9.4)
1800
(70.9)
2453
(96.6)
2300
(90.6)
440
(17.3)
127
(5.0)
183
(7.2)
183
(7.2)
440
(17.3)
127
(5.0)
76
(3.0)
1
1
1
1
22
3
4
5
68
(2.7)
440
(17.3)
1464
(57.6)
No. Description
1 Power wiring conduit plates.
2 Control wiring conduit plates.
3 Optional exhaust hood.
4 Optional HIM.
5 Recommended seven-hole anchoring.
Bottom
Top
600 mm (23.6 in.) Deep Drive with Wiring Bay
