222 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 4 Power Wiring
Floor Mount Frames 8…10 Drive Assembly Jumper Removal and
Storage
Frame 8…10 drive assemblies use jumper plugs to complete an electrical
connection when installed. Install or remove jumper plugs according to the
recommendations in Table 46
.

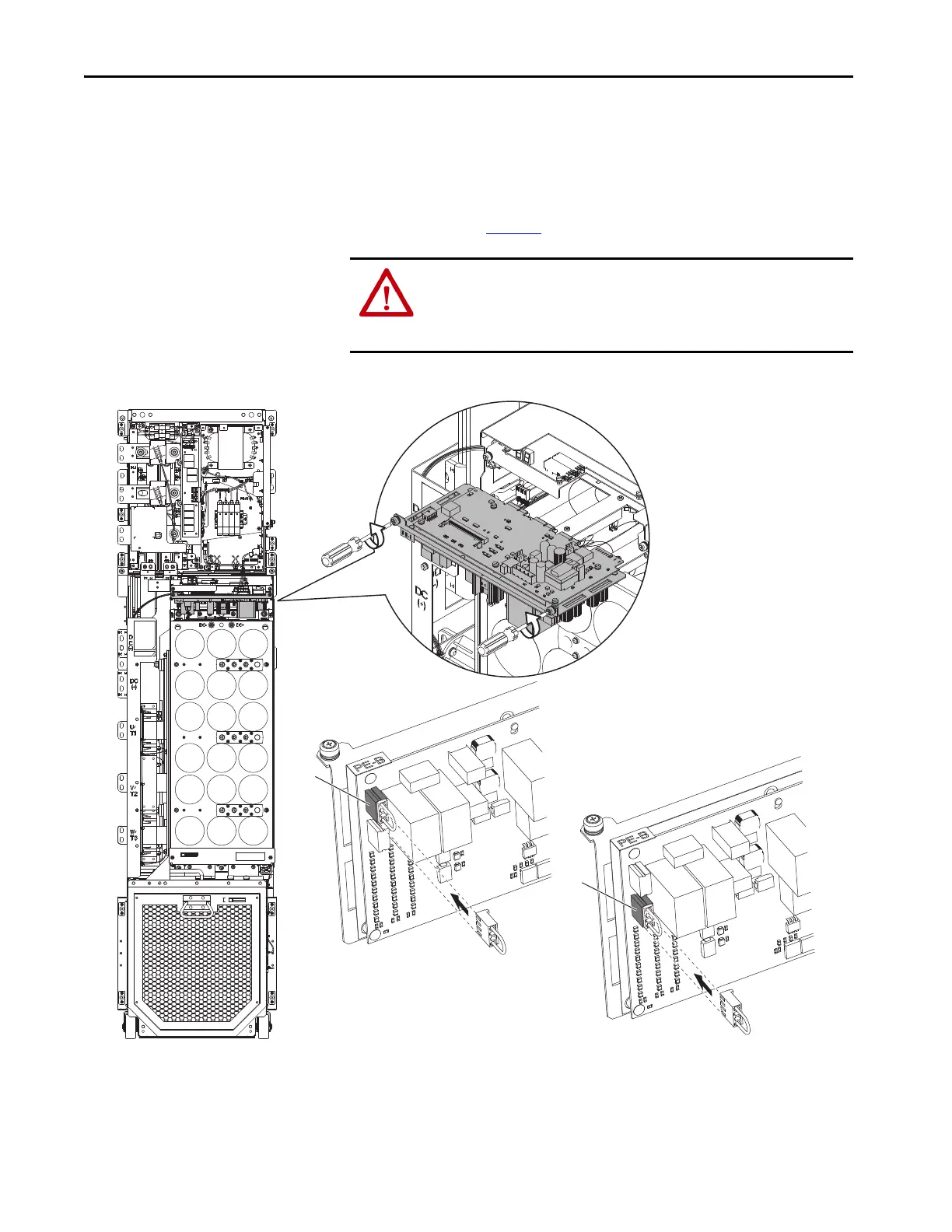

Figure 126 - Frames 8…10 Drive Assembly PE-B Common Mode Jumper Location
For removal and installation of the inverter power control board tray, use this
torque and tool:
• Recommended torque = 1.86 N•m (16.0 lb•in)
• Recommended screwdriver = T20 Hexalobular
ATTENTION: Hazard of equipment damage exists if jumpers are not properly
disconnected or are set differently between drive assemblies. For Frame
8…10 drive assemblies, secure the disconnected jumper plug in the socket
that is provided and verify that all drive assemblies are configured the same.
J4
J3
Disconnected
Connected
AC Input Drive Shown
