Rockwell Automation Publication 750-IN001P-EN-P - April 2017 281
I/O Wiring Chapter 5

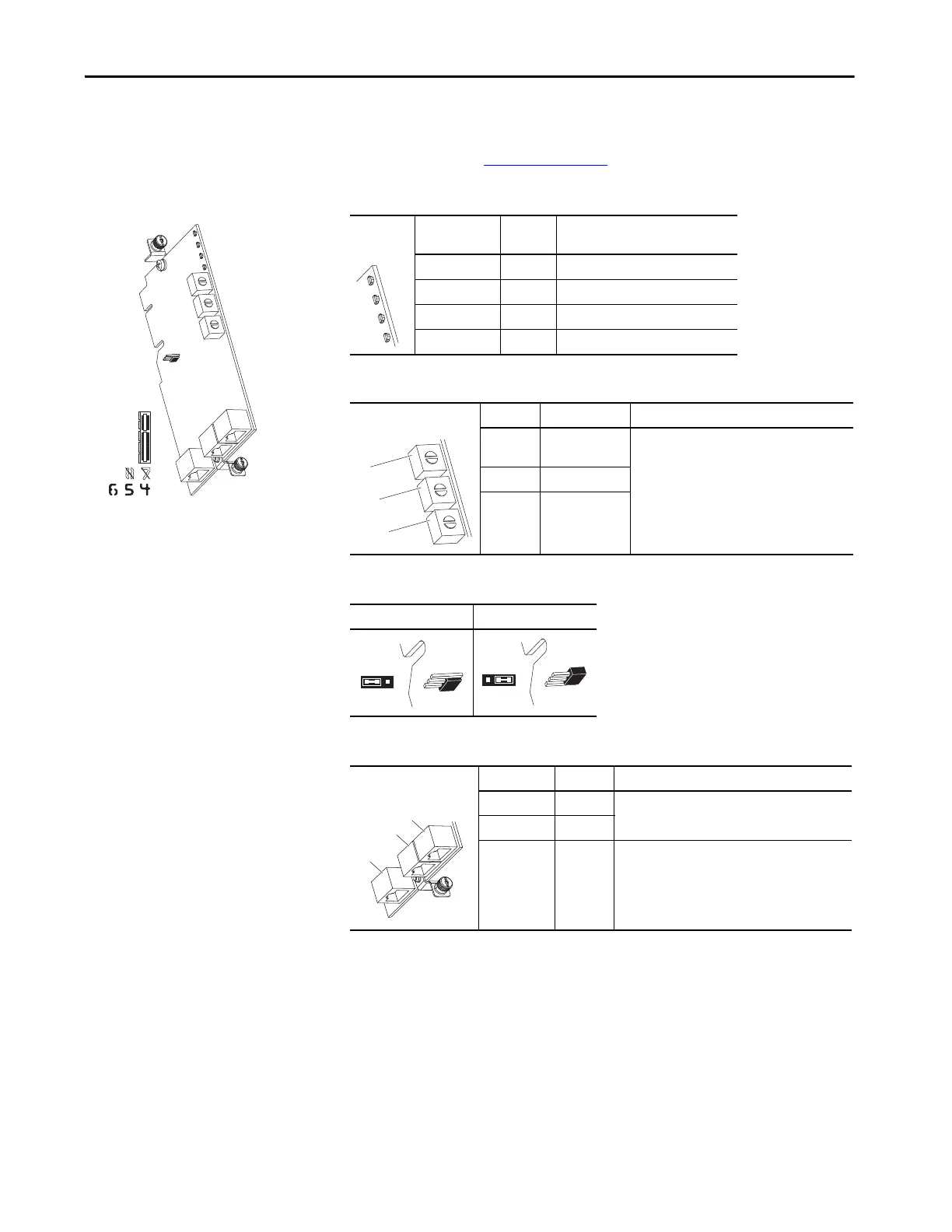

Dual-port EtherNet/IP Option
Module
For complete information on the Dual-Port EtherNet/IP option module, see
the PowerFlex 20-750-ENETR Dual-port EtherNet/IP Option Module User
Manual, publication 750COM-UM008
.
Table 95 - EtherNet/IP Option Module Status Indicator Indication
Table 96 - EtherNet/IP Option Module Rotary Switches
Table 97 - J4 Jumper
Table 98 - Ethernet Connectors
20-750-ENETR
Status
Indicator
Name Description
1 PORT DPI Connection Status
2 MOD Option Module Status
3 NET A Network Port 1 Status
4 NET B Network Port 2 Status
Switch Name Description
1HUNDREDS
Switch
Sets the node address of the option module.
2 TENS Switch
3ONES Switch
Adapter Mode Tap Mode
Connector Name Description
1 ENET1 Ethernet RJ45 connection to the network.
2 ENET2
3 ENET3
(DEVICE)
Connection for the short Ethernet cable (provided
with option module) to the Ethernet port on the
PowerFlex 755 drive embedded EtherNet/IP adapter.
This connector is used only for integrated motion on
the EtherNet/IP network data transfer.
1
2
3
4
1
2
3
ADPTR J4 TAP
MODE
ADPTR J4 TAP
MODE
1
2
3
