Rockwell Automation Publication 750-IN001P-EN-P - April 2017 121
Lift and Mount the Drive Chapter 3

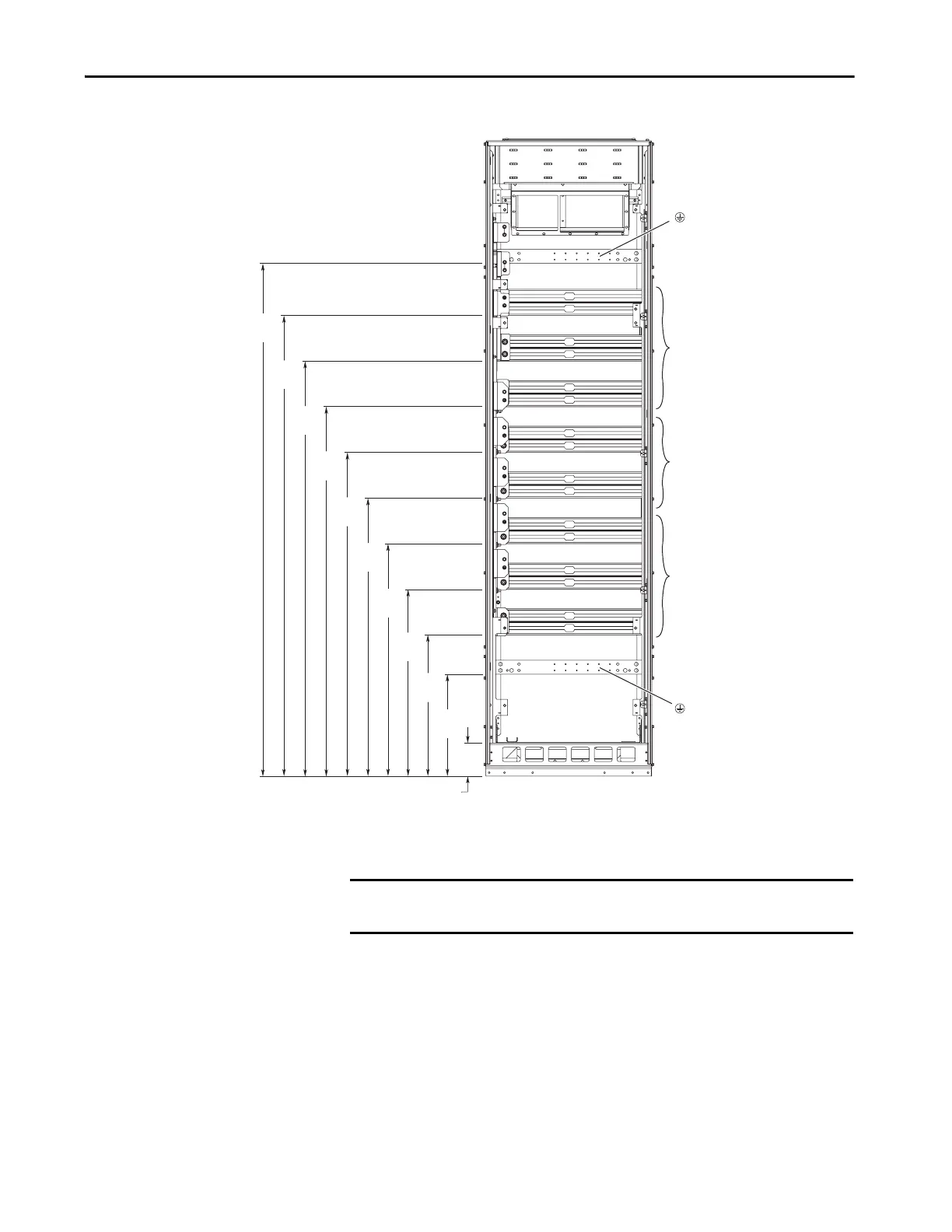

Figure 85 - Bus Bar Dimensions (AC Input)
Dimensions are in millimeters and (inches).
369
(14.5)
511
(20.1)
671
(26.4)
841
(33.1)
1006
(39.6)
1171
(46.1)
1336
(52.6)
1501
(59.1)
1666
(65.6)
1854
(73.0)
125
(4.9)
R / L1
S / L2
T / L3
DC+
DC-
U / T1
V / T2
W / T3
PE
PE
DC Bus Connection Kit (Catalog
Number 20-750-BUS1A-F8) Is
Required.
IMPORTANT To connect to the DC bus bars, a PowerFlex 750-Series DC bus connection kit
(catalog number 20-750-BUS1A-F8) is required.
