128 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 3 Lift and Mount the Drive

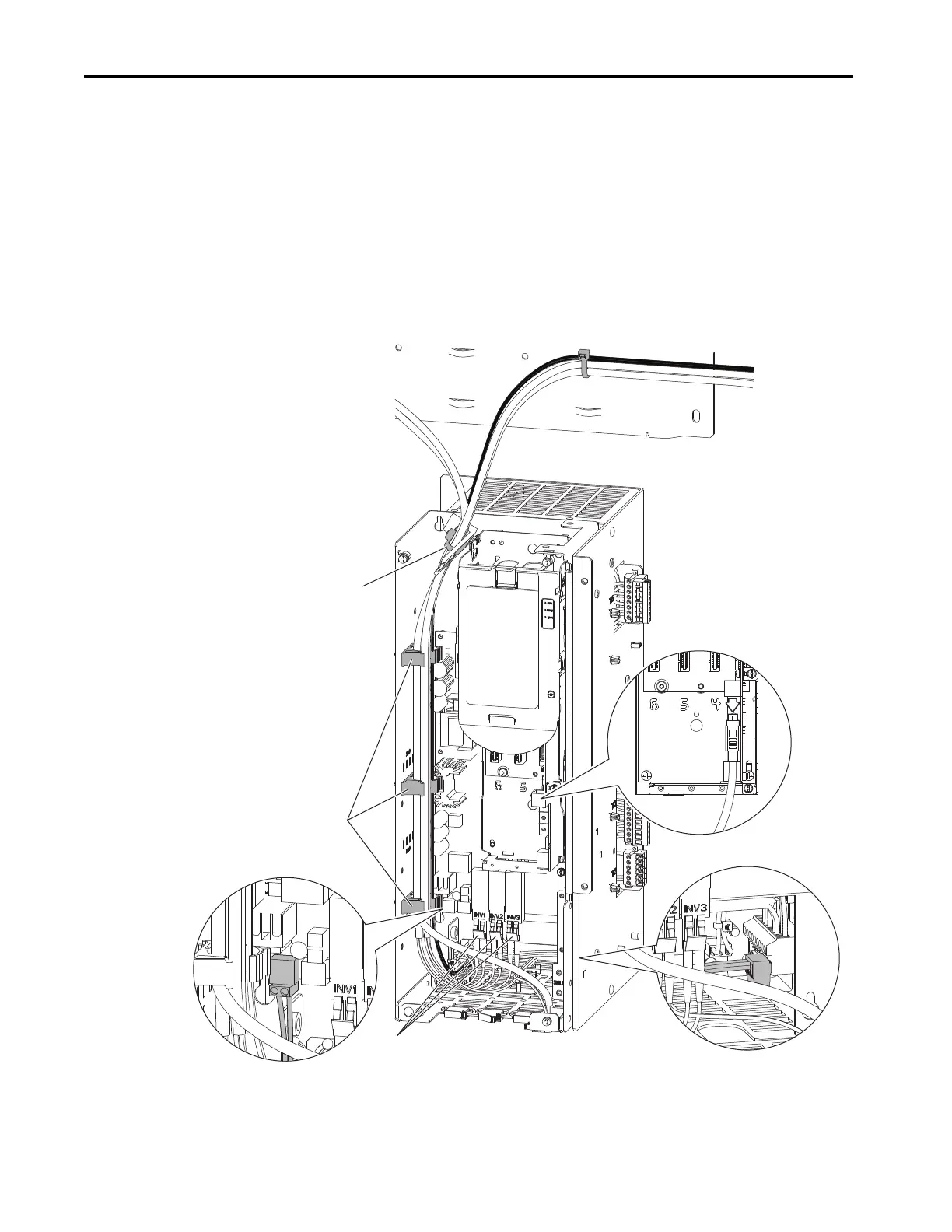

2. Disconnect the HIM cable (see number 1).
3. Disconnect the 24V wire harness from TB1 and P14 on the fiber
interface board (see number 2).
4. Disconnect any fiber-optic cables from the fiber interface board. This
step is not necessary on Frame 8 drives (see number 3).
5. Unlock the three cable supports along the left inside wall of the drive
control pod (see number 4).
6. Open the releasable cable tie at the top of the drive control pod (see
number 5).
TB1
P14
1
4
5
2
2
3
