30
Rockwell Automation Publ
ication 750-IN001P-EN-P -
April 2017
Chapt
er 2
Prepare for Installation

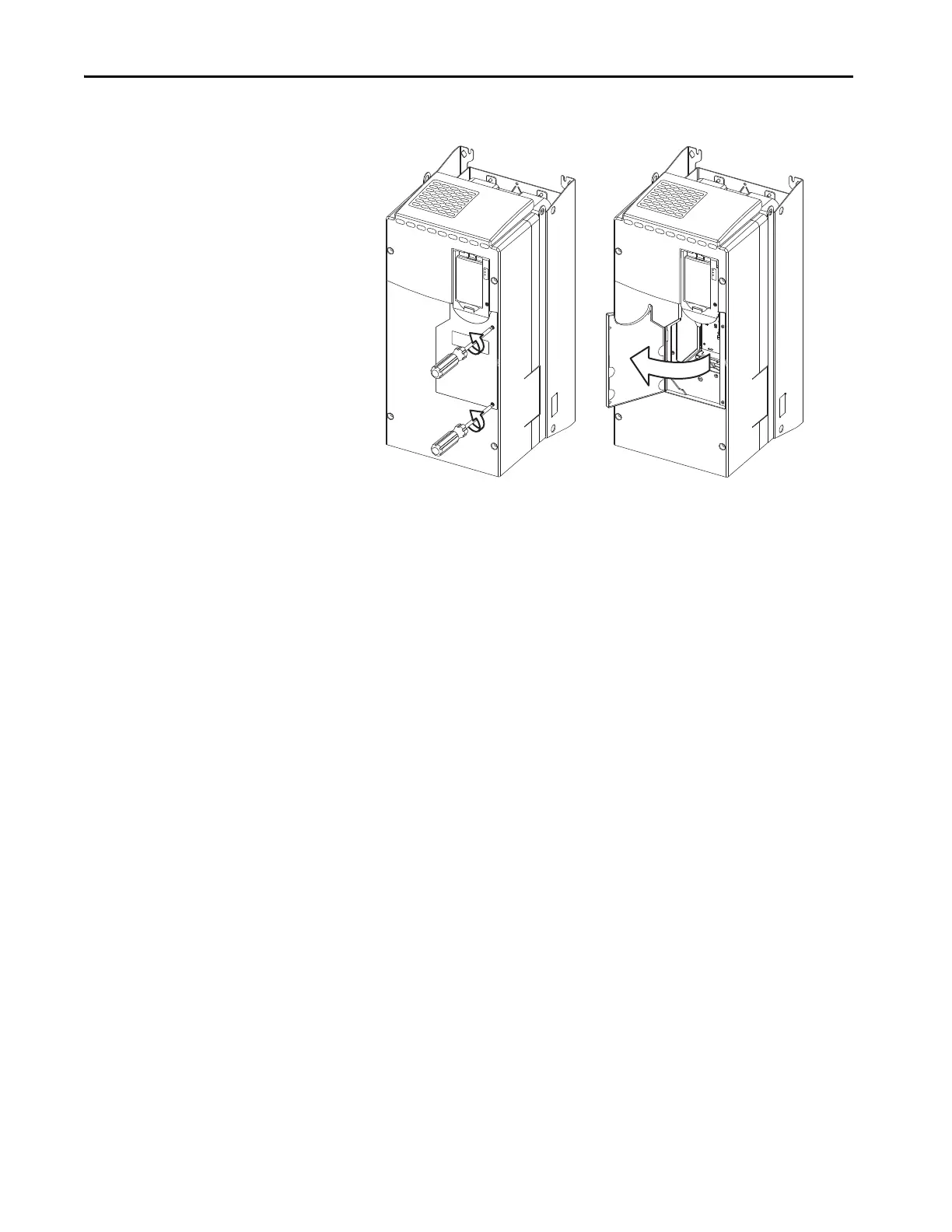

Figure 5 - Enclosur
e Code N (IP00, NEMA/UL Open T
ype) Wa
ll Mount, Frames 6 and 7 Access Door
T
o open or secur
e the acces
s door
, use t
h
is tool
:
•
Re
commended screwdriv
er = 6.4 mm (0.25 in.) flat or T20 H
exa
lobular
29
31
