Rockwell Automation Publ
ication 750-IN001P-EN-P -
April 2017
33
Prepa
re for Insta
llation
Chapt
er 2
Figure 8 - F

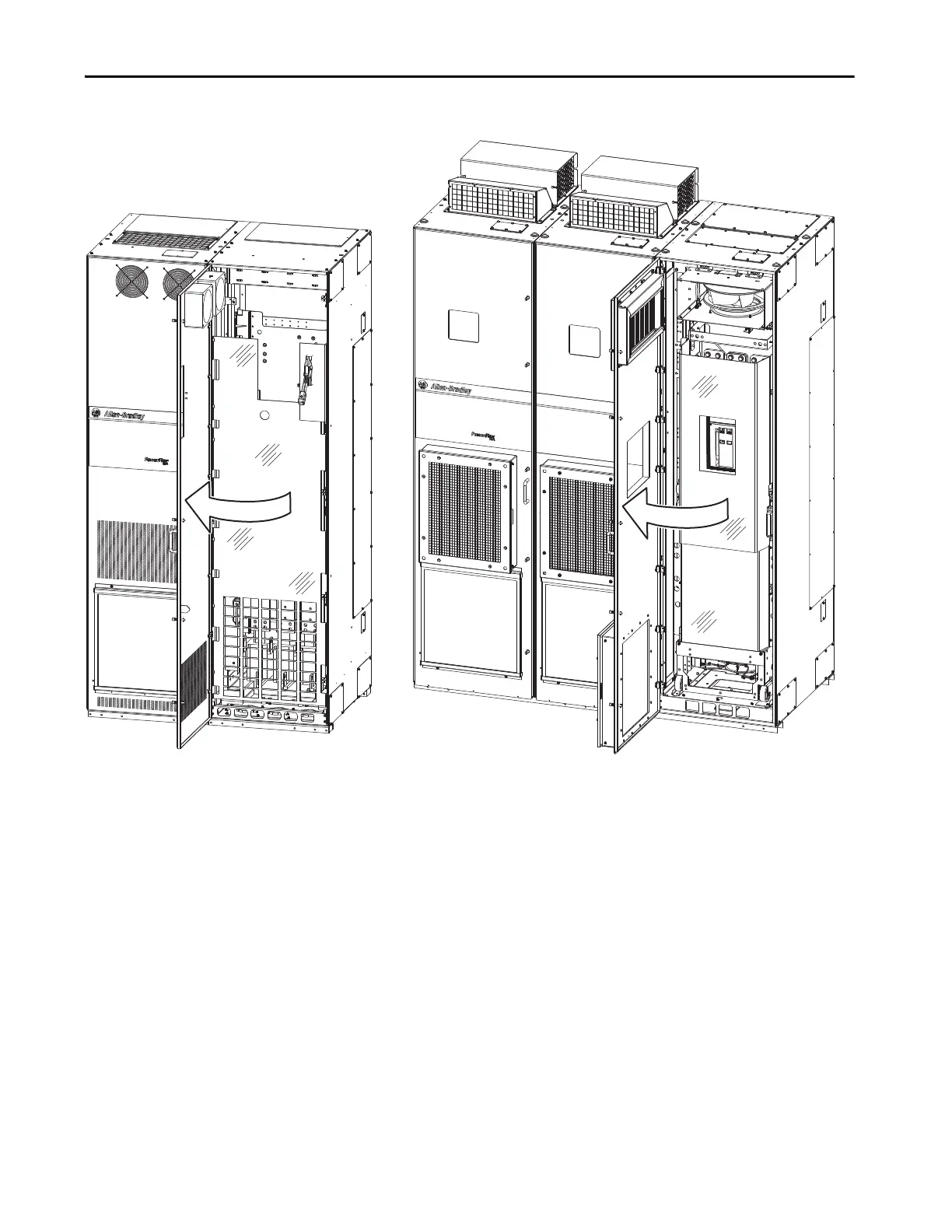

loor Mount Cabinet Options Bay A
ccess Door
T
o open or secur
e the acces
s door
, use t
h
is tool
:
•
Re
comme
nded screwdriver = 9.5 m
m (0.375 in.) flat
Floor Mount F
rame 8 – IP20, NEM
A/UL T
ype 1
Floor Mount F
rame 9 – IP54, N
EMA 12
32
34
Table of Contents
