Lift and Mount the Drive Chapter 3

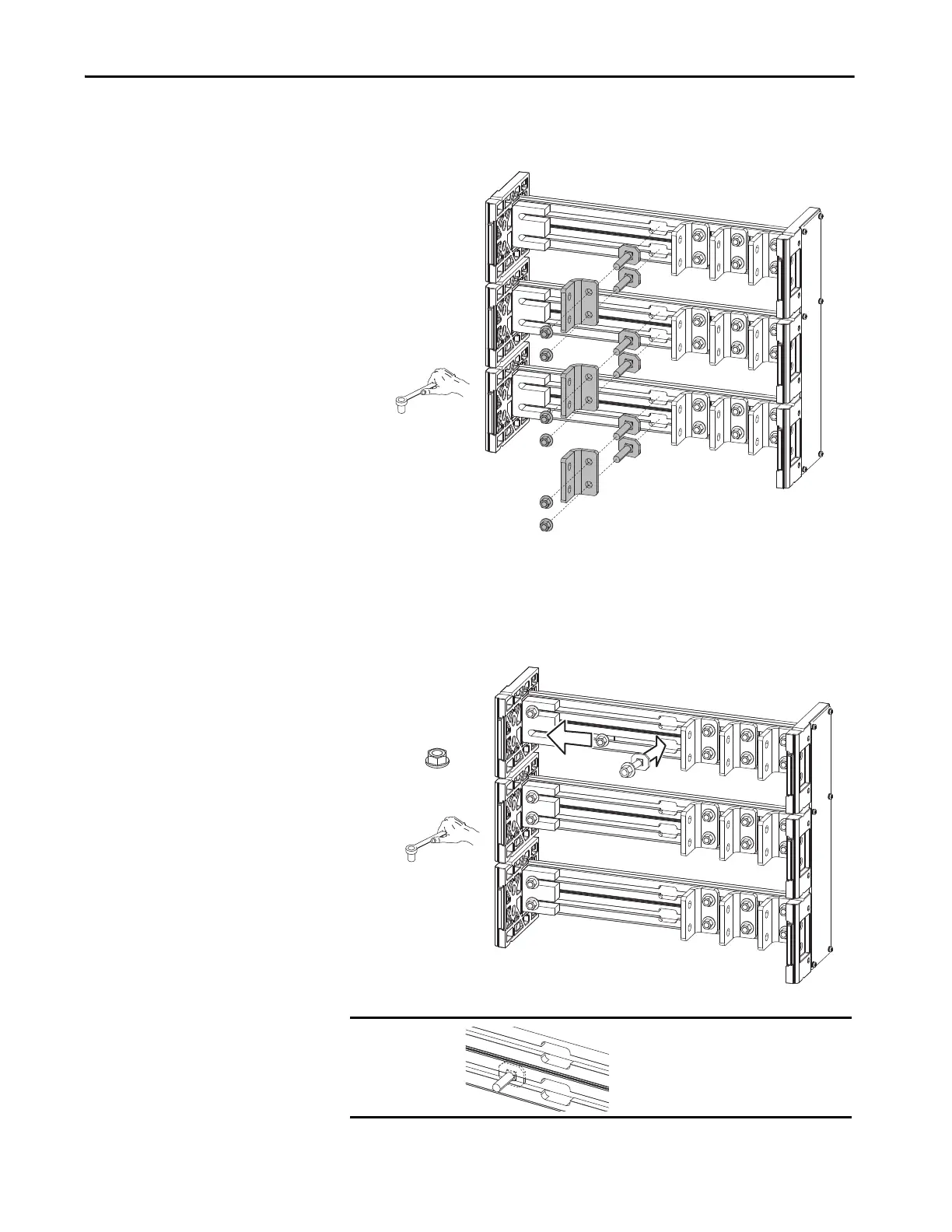

5. To access the channel notches, remove the left-most L-bracket from each
of the six wiring bay bus bars.
6. Insert the 12 carriage bolt assemblies into the 12 wiring bay bus bar
channels.
7. Slide the carriage bolt assemblies into the bus bar couplers on the left
and tighten.
IMPORTANT Verify that clamp fits squarely in the bus
bar channel.
17 mm
M10 x 1.5
38.0 N•m (336 lb•in)
17 mm
