96 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 3 Lift and Mount the Drive

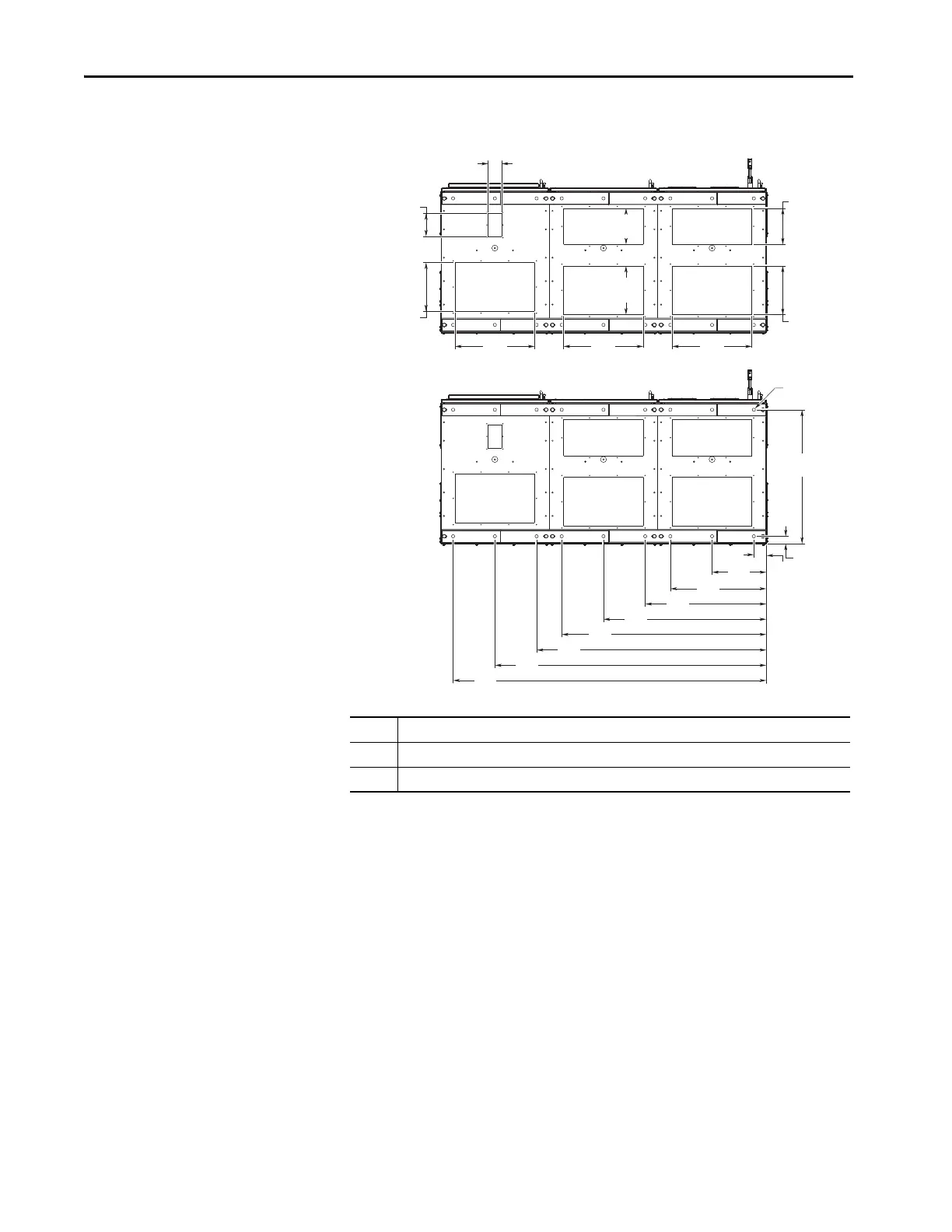

Figure 60 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8 Bottom Access
(Enclosure Code L, P, W)
300
(11.8)
531
(20.9)
669
(26.3)
900
(35.4)
1131
(44.5)
1269
(50.0)
1500
(59.1)
1731
(68.1)
69
(2.7)
ø18.0
(0.71)
742
(29.2)
43
(1.7)
1269
(50.0)
1500
(59.1)
1731
(68.1)
270
(10.6)
1
1
1
1
1
2
127
(5.0)
76
(3.0)
440
(17.3)
200
(7.9)
440
(17.3)
270
(10.6)
200
(7.9)
270
(10.6)
440
(17.3)
800 mm (31.5 in.) Deep Drive with Wiring Bay and Cabinet Options
Bay
No. Description
1 Power wiring conduit plates.
2 Control wiring conduit plates.
