Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 139

Safety Module Features Chapter 5

Off to On Delay

An input signal is treated as Logic 0 during the Off to On delay time after the

rising edge of the input contact.

The input turns on only if the input contact remains on after the Off to On

delay time has elapsed. This setting help prevent rapid changes of the input

data due to contact bounce.

You can delay the Off to On transition by the following times:

• 0 ms (default)

•1 ms

•2 ms

•5 ms

• 10 ms

• 20 ms

• 50 ms

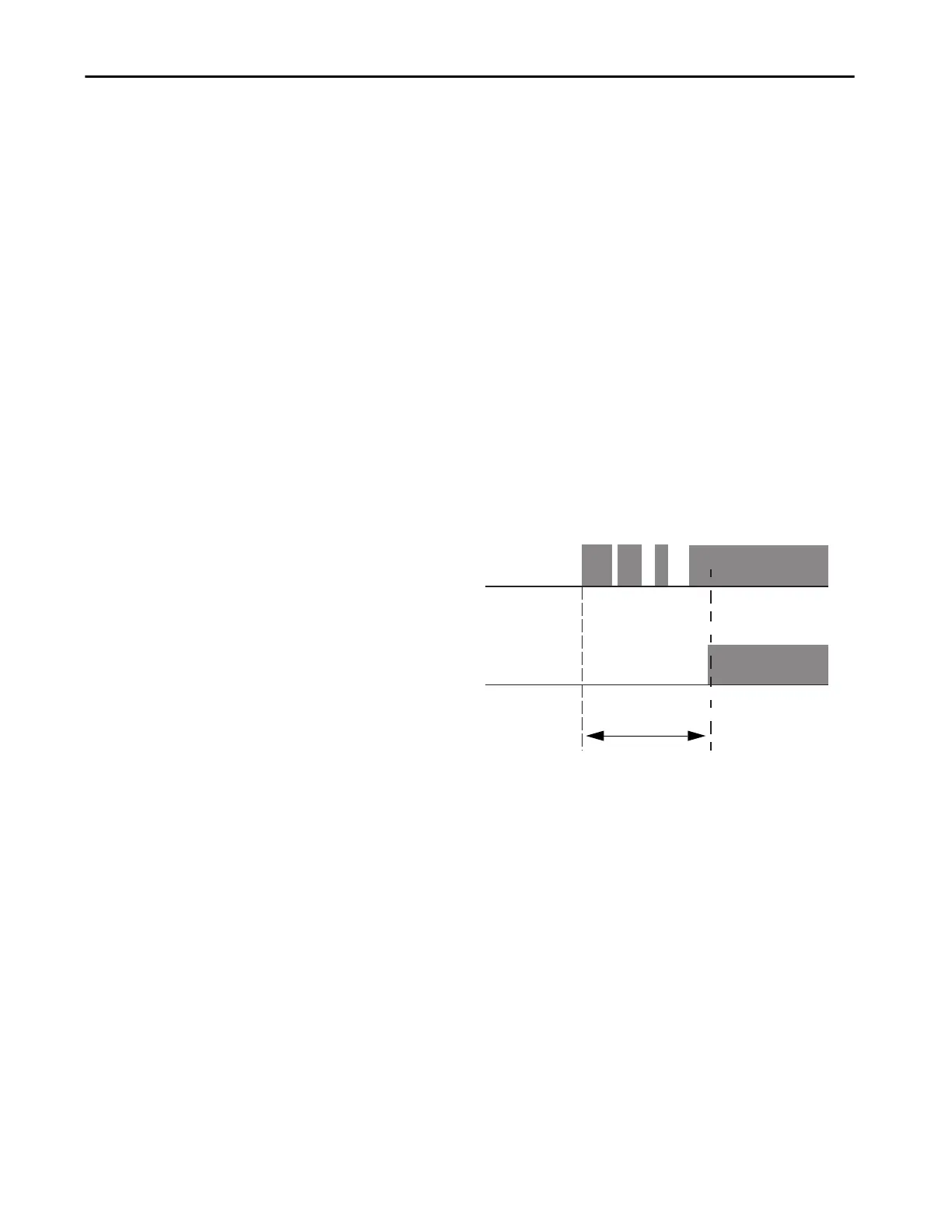

Figure 15 - Off to On Delay

OFF

Input Signal

Safety Input

Network Data

Off to On Delay

Default Chapter3
