154 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019

Chapter 6 Configure a Standard Module

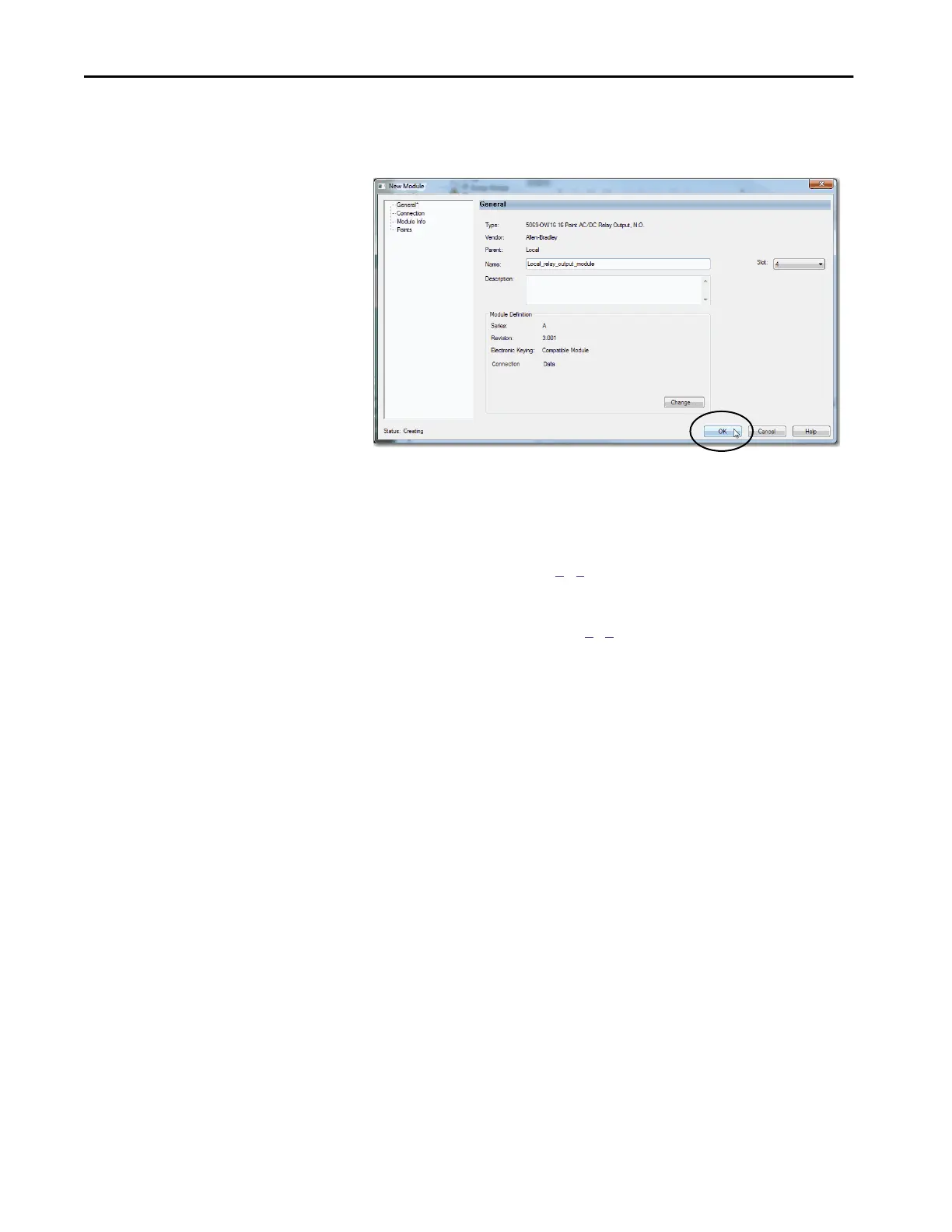

3. At the New Module window, configure the module properties and

click OK.

To add additional local I/O modules with this method, complete one of

the following:

• If you cleared the Close on Create checkbox when you created the first

I/O module, repeat steps

2…3.

• If you did not clear the Close on Create checkbox when you created the

first I/O module, repeat steps

1…3.
