Rockwell Automation Publication 857-QS001B-EN-P - April 2017 17
Mounting and Wiring Instructions Chapter 2

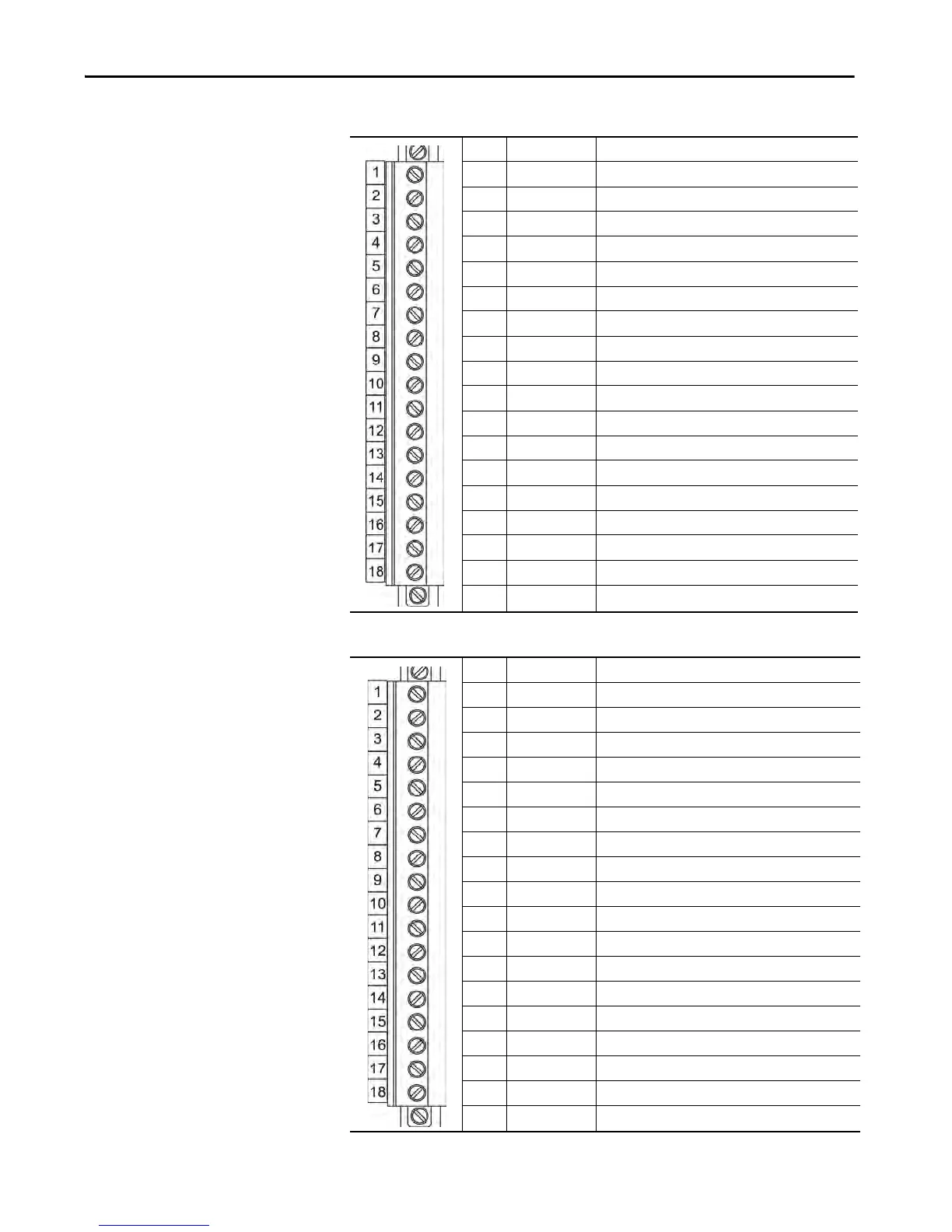

Table 5 - Terminal X3
Table 6 - Terminal X7
No: Symbol Description
1 48V Internal control voltage for digital inputs 1…6
2 DI1 Digital input 1
3 DI2 Digital input 2
4 DI3 Digital input 3
5 DI4 Digital input 4
6 DI5 Digital input 5
7 DI6 Digital input 6
8-- --
9 A1 COM Alarm relay 1, common connector
10 A1 NO Alarm relay 1, normal open connector
11 A1 NC Alarm relay 1, normal closed connector
12 T2 Trip relay 2
13 T2 Trip relay 2
14 T1 Trip relay 1
15 T1 Trip relay 1
16 -- --
17 Uaux Auxiliary voltage
18 Uaux Auxiliary voltage
No: Symbol Description
1 DI7 Digital input 7
2 DI8 Digital input 8
3 DI9 Digital input 9
4 DI10 Digital input 10
5 DI11 Digital input 11
6 DI12 Digital input 12
7 COM1 Common potential of digital inputs 7…12
8 DI13 Digital input 13
9 DI14 Digital input 14
10 DI15 Digital input 15
11 DI16 Digital input 16
12 D117 Digital input 17
13 DI18 Digital input 18
14 COM2 Common potential of digital inputs 13…18
15 T4 Trip relay 4
16 T4 Trip relay 4
17 T3 Trip relay 3
18 T3 Trip relay 3
