Set the Valid Protection Stages
Depending on the application mode that is selected, the default protective
settings are automatically selected but not fully configured.
The fundamental protection element selection, which is related to the load and
controller characteristics, is selected in the VALID PROTECTION STAGES
section of the SetPointPS software. Figure 11
shows a typical summary of the
Valid Protective Stages within the Protection System. You can also enable or
disable a protective stage by selecting the stages through this screen. Or by
going to the individual protection element settings page and enabled or
disabled each protection element individually.

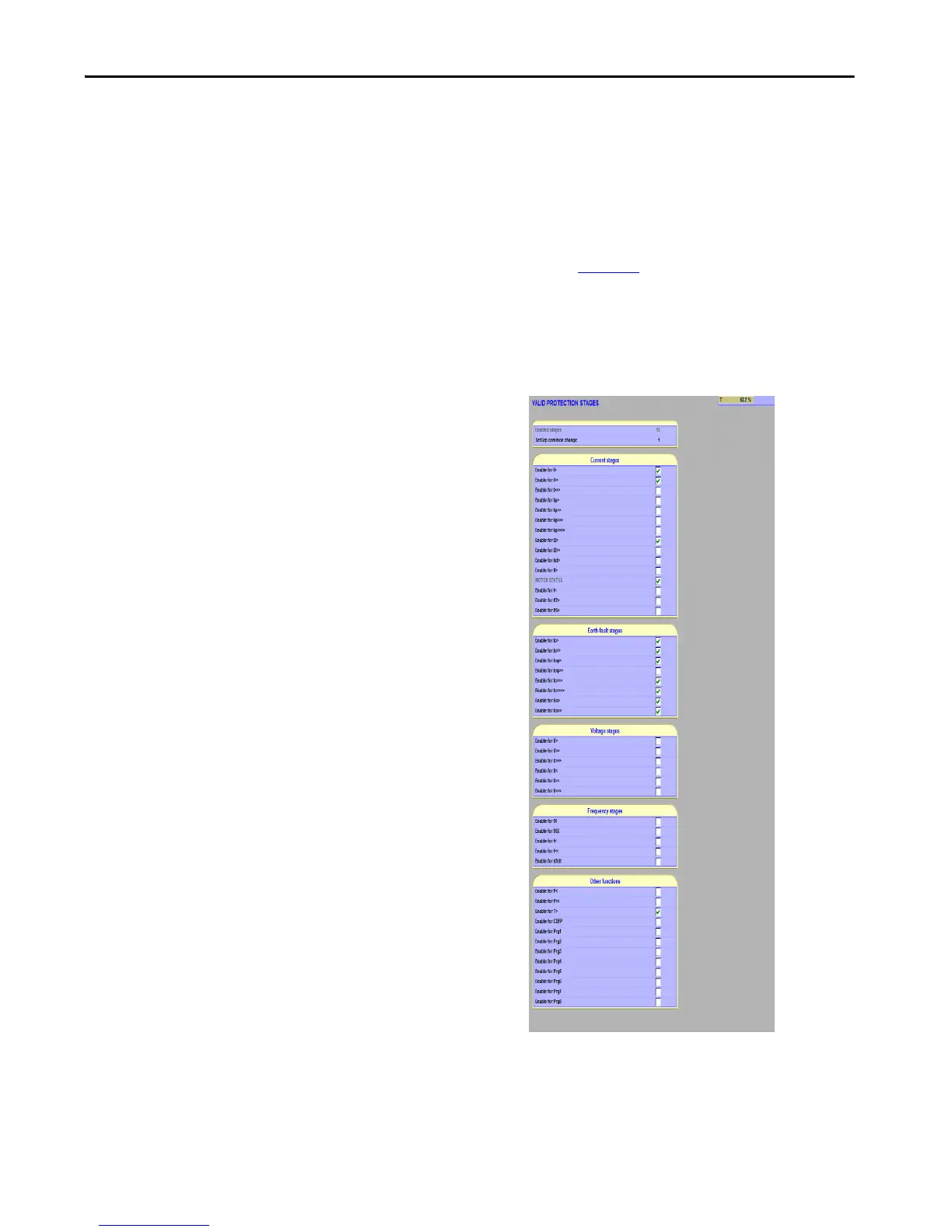

Figure 11 - Valid Protective Stages
