POINT I/O Input Module 11
Publication 1734-IN051D-EN-P - April 2004

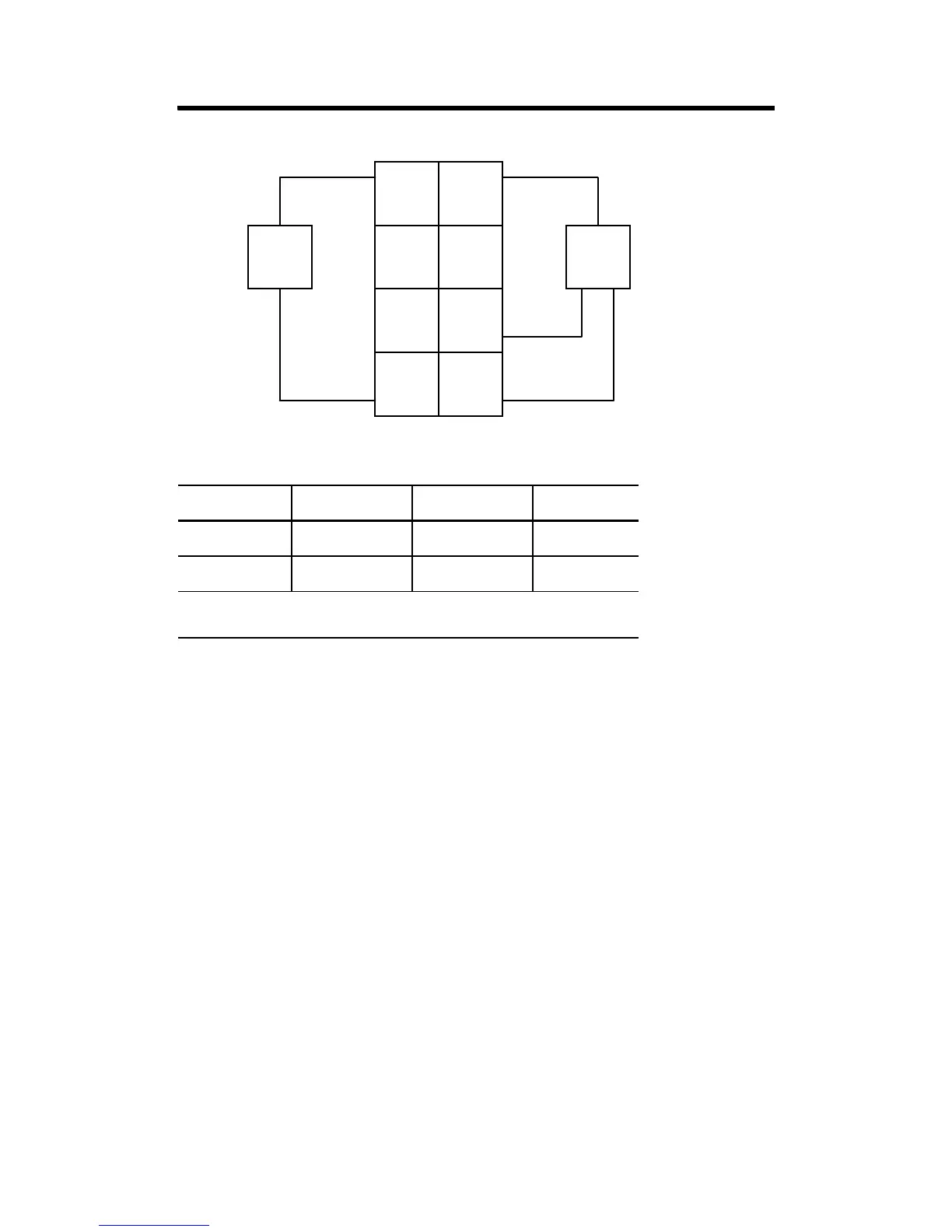

Wiring for 1734-IB2
Channel Input Common Voltage
0 0 4 6
1 1 5 7
Connect common on 3-wire proximity switches.
12/24V dc is supplied through the internal power bus.
Prox
In 0 In 1
NC
C
VV
C
NC
Prox
V = 12/24V dc
C = Common
41966
3-wire
Sink Input
2-wire
3
5
7
01
2
4
6
