Allen-Bradley C Series User Manual

14 POINT I/O Input Module
Publication 1734-IN051D-EN-P - April 2004
4V dc 2 Input Sink Module Cat. No. 1734-IB2

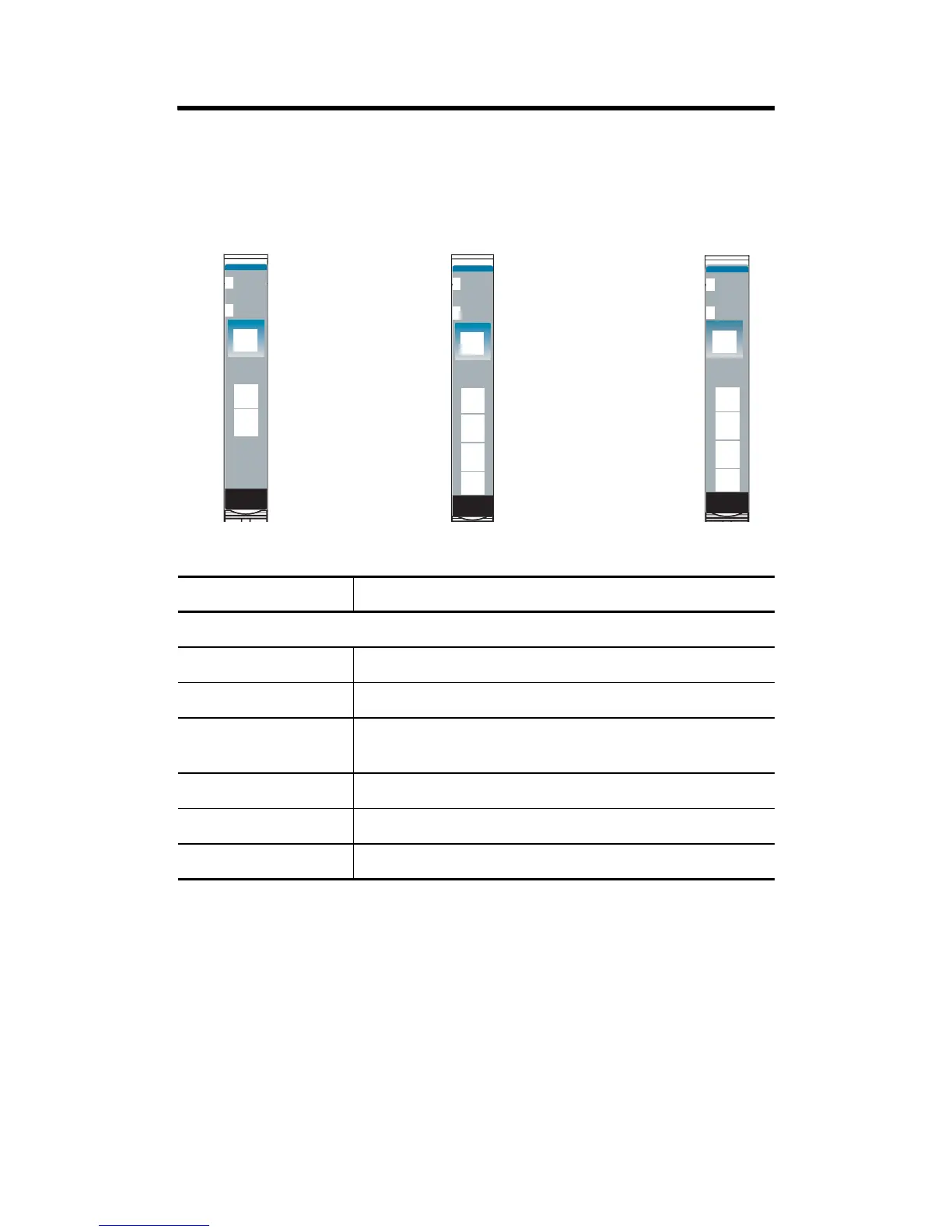

Troubleshooting with the Indicators
Indication Probable Cause
Module Status
Off No power applied to device
Green Device operating normally
Flashing Green Device needs commissioning due to configuration
missing, incomplete or incorrect.
Flashing Red Recoverable fault.
Red Unrecoverable fault may require device replacement
Flashing Red/Green Device is in self-test
Module Status
Network Status
Status of Input 0
Status of Input 1
24VDC
Sink
Input
Module
Status
Network
Status
1734
IB4
NODE:
0
1
2
3
24VDC
Sink
Input
Module
Status
Network
Status
1734
IB2
NODE:
0
1
1734-IB2
1734-IB4
1734-IB8
Status of Input 0 & 4
Status of Input 1 & 5
Status of Input 2 & 6
Status of Input 3 & 7
Module Status
Network Status
24VDC
Sink
Input
Module
Status
Network
Status
1734
IB8
NODE:
0
1
2
3
4
5
6
7
Status of Input 2
Status of Input 3
