Allen-Bradley Compact GuardLogix 5380 Reference Manual

Rockwell Automation Publication 1756-RM100F-EN-P - October 2018 35
Replacement Considerations with ControlLogix 5580 and GuardLogix 5580 Systems Chapter 2
Port Configuration Tab
When online, the Port Configuration tab lets you view and configure the
Ethernet port settings:
•View Link Status
• Enable/Disable the Ethernet port
• Configure Auto-Negotiate
• Configure Selected Speed up to 1 Gbps (or set to auto-negotiate)
•View Current Speed
• Configure Selected Duplex
The 5580 controllers only support full-duplex.
•View Current Duplex
• Access the Port Diagnostics dialog
You can change the Port Configuration parameters without resetting
the controller.

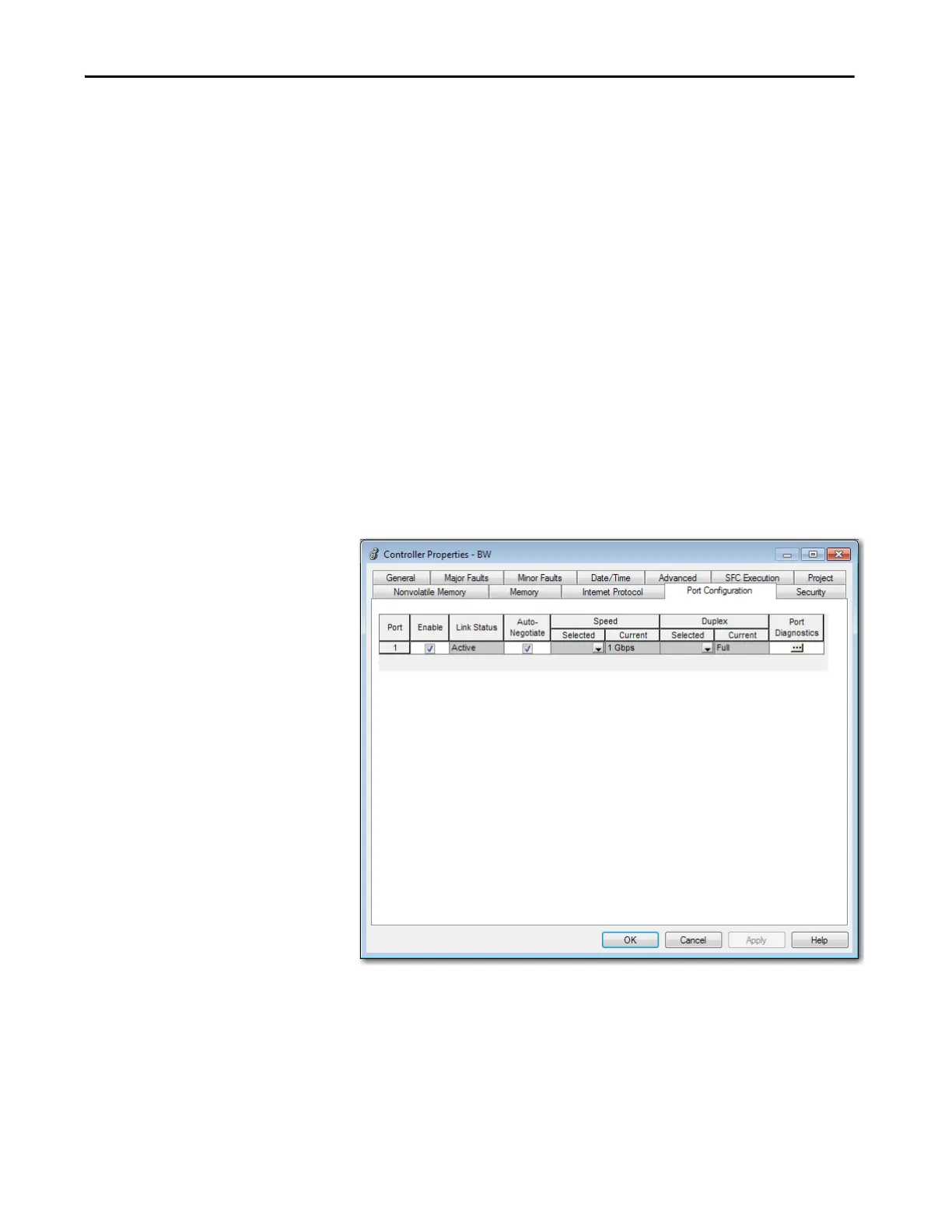

Figure 6 - Controller Properties Dialog Box - Port Configuration Tab
