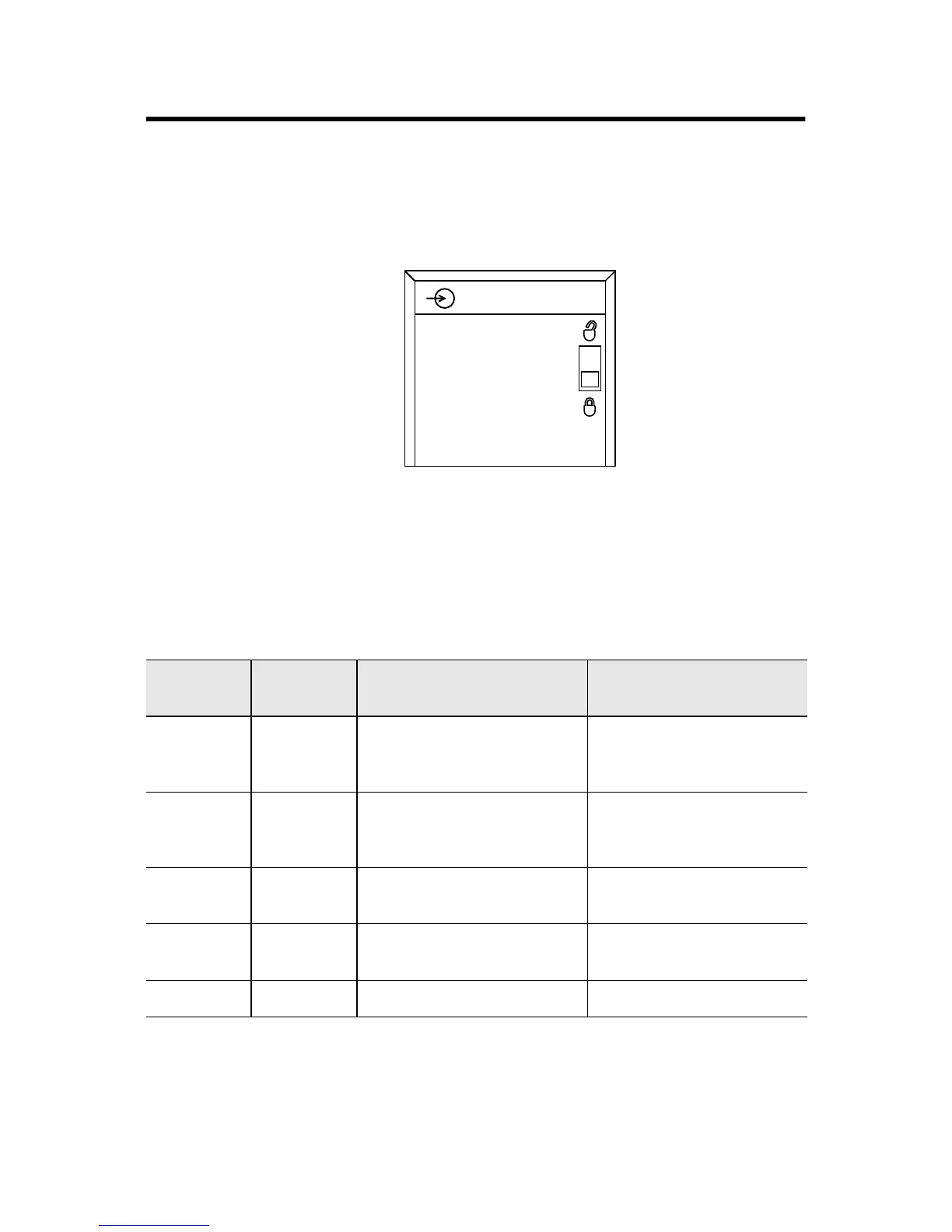

Page #10 background image
10 ControlLogix DC (10-30V) Sourcing Input Module
Publication 1756-IN006A-EN-P - December 2000
Check the Indicators
The indicators show individual I/O status (yellow) for each point and
a bi-colored LED for module "OK" (red/green).
During power up, an indicator test is done and the following occurs:
The "OK" indicator turns red for 1 second and then turns to
flashing green if it has passed the self-test.
The I/O status indicators turn ON for a maximum of 2 seconds
and then turn OFF.
This completes installation of the module. Use the information below
to remove the module.
LED
indicator:
This
display:
Means: Take this action:
OK Steady
green light
The inputs are being
multicast and in normal
operating state.
None
OK Flashing
green light
The module has passed
internal diagnostics but is not
multicasting inputs.
Configure the module.
OK Flashing red
light
Previously established
communication has timed out.
Check controller and chassis
communication.
OK Steady red
light
An unrecoverable error has
occurred on the module.
Replace the module.
I/O State Yellow The input is active. None
20945-M
DC INPUT
ST01234567
ST 8 9 10 11 12 13 14 15
O
K
