Because the controllers have 32-bit data integrity, this only applies to data
structures larger than 32 bits. If word-level integrity is your primary concern,
the 32-bit data integrity does not impact your data use.
Good programming practice dictates the use of two unique words at the
beginning and the end of data. The controller validates the words to assure the
entire structure has data integrity. We recommend that the handshake data is
changed and the application code validates it every transaction before the
controller application code or higher-level system reading controller data acts
on it.
Download the Program to
the Controller
The first time that you download a program, it can take longer than subsequent
downloads. These situations can affect download/compile times:
• The capability of the personal computer or laptop.
• You download the project immediately after a project import or upload,
but before Logix Designer has compiled the project once.
• You edit a User Defined Tag (UDT), Add-On Instruction (AOI), or an
object that is used in many places.
• Increased load when Logix Designer compiles and generates code.
Build Button

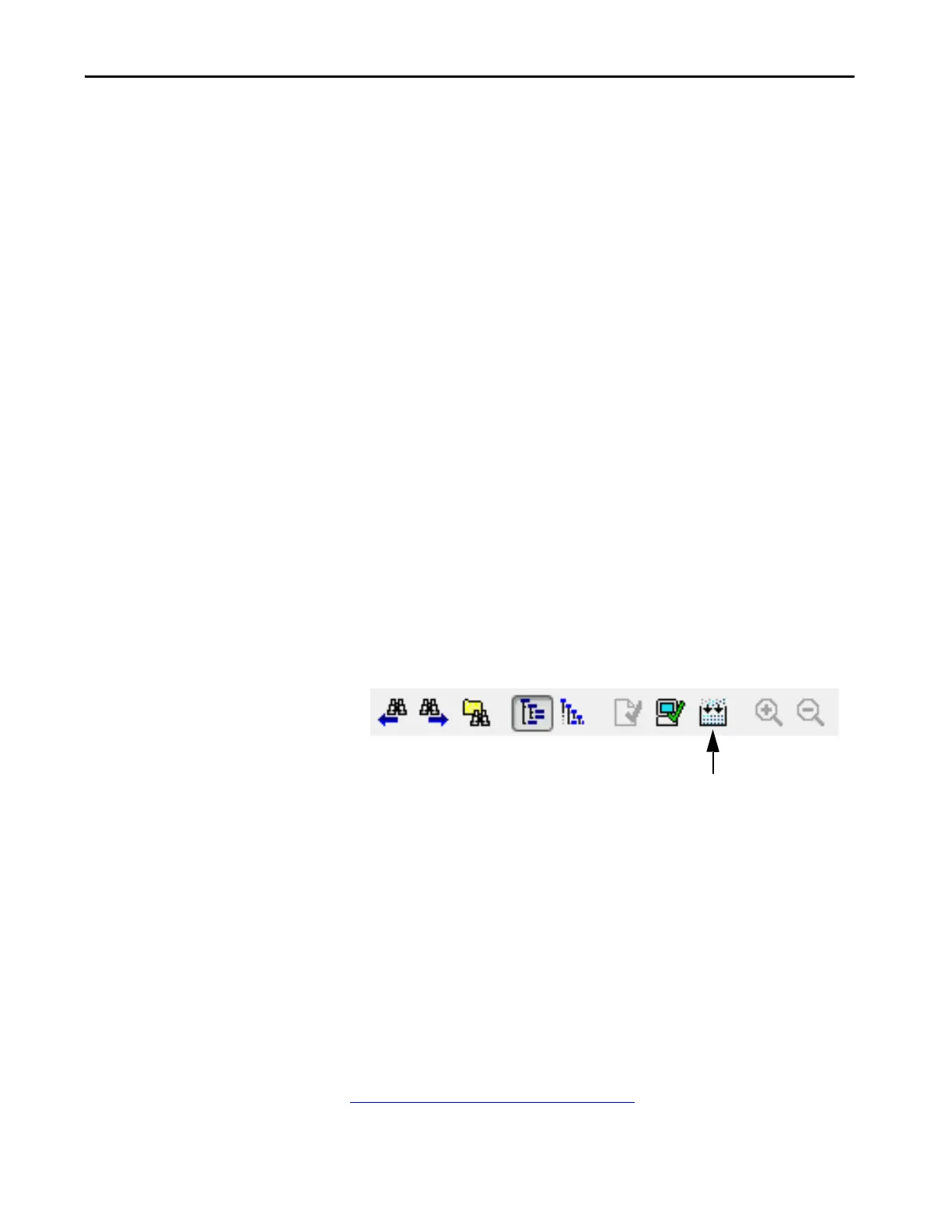

The new Build button in Logix Designer creates binary files that are compiled
from user subroutines, and caches them in the project .ACD file.
If these files are present in the project during a download, then Logix Designer
does not have to recompile them, and saves time during the download process.
Every download requires that only the changed subroutines must be
recompiled. You can perform a build offline, save the project .ACD file, and
later distribute it to many controllers without recompilation.
This manual build step is optional. If you do not use the build button, Logix
Designer builds all necessary files when you initiate a download.
An imported project requires a complete rebuild, and extends the download
process the first time you attempt a download.
Downloading Workflow Change on page 42
provides an explanation of the
download changes.
