Approximate Dimensions
and Weight
Attributes Values and Descriptions
Width 46 mm ( 1.81 in.)
Height 124 mm ( 4.88 in.)
Depth
127 mm ( 5.0 in.)
The DIN rail height must be added to the unit depth to calculate the total required
installation depth.
Weight 700 g (1.54 lb)
DIN rail
Use 35 mm (1.38 in.) DIN rails according to EN 60715 or EN 50022 with a height of 7.5 mm
(0.295 in.) or 15 mm (0.59 in.).
Housing material
Body: Aluminum alloy
Cover: Zinc-plated steel
Installation clearances
Keep the following min installation clearances:
• 40 mm (1.57 in.) on the top
• 20 mm (0.79 in.) on the bottom
• 5 mm (0.20 in.) on the left side
• 5 mm (0.20 in.) on the right side
• If the adjacent device is a heat source, increase the side clearances from 5 mm
(0.20 in.) to 15 mm (0.59 in.).
Penetration protection Small parts like screws and nuts with a diameter larger than 3.5 mm (0.14 in.).

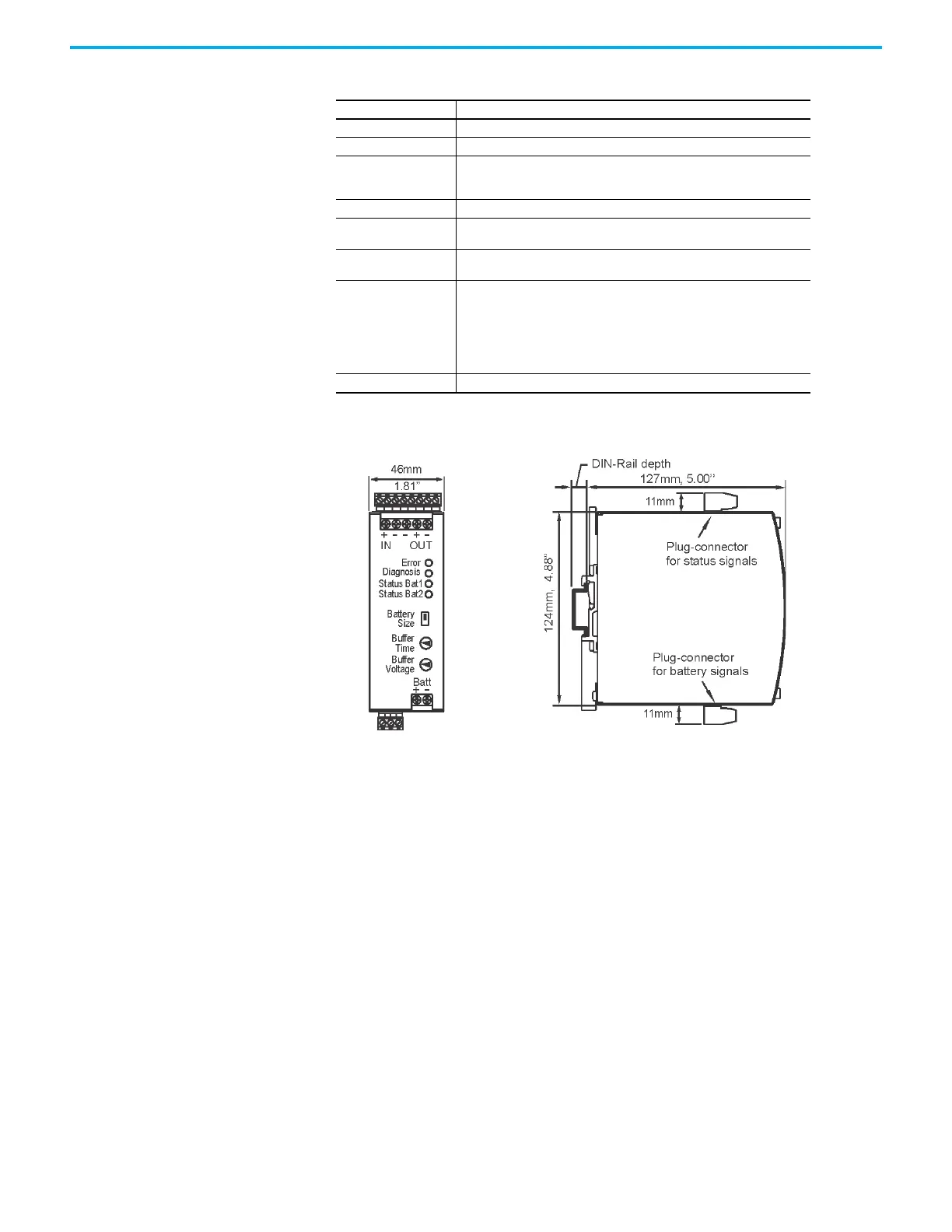

Figure 20 - Front View Figure 21 - Side View
