About Accessories
Accessories
This chapter highlights the accessories you can use with the Micro810 controller.
External AC Power Supply
Use this optional power supply (2080-PS120-240VAC) in applications with
smaller systems when a 24V DC power supply is not readily available.

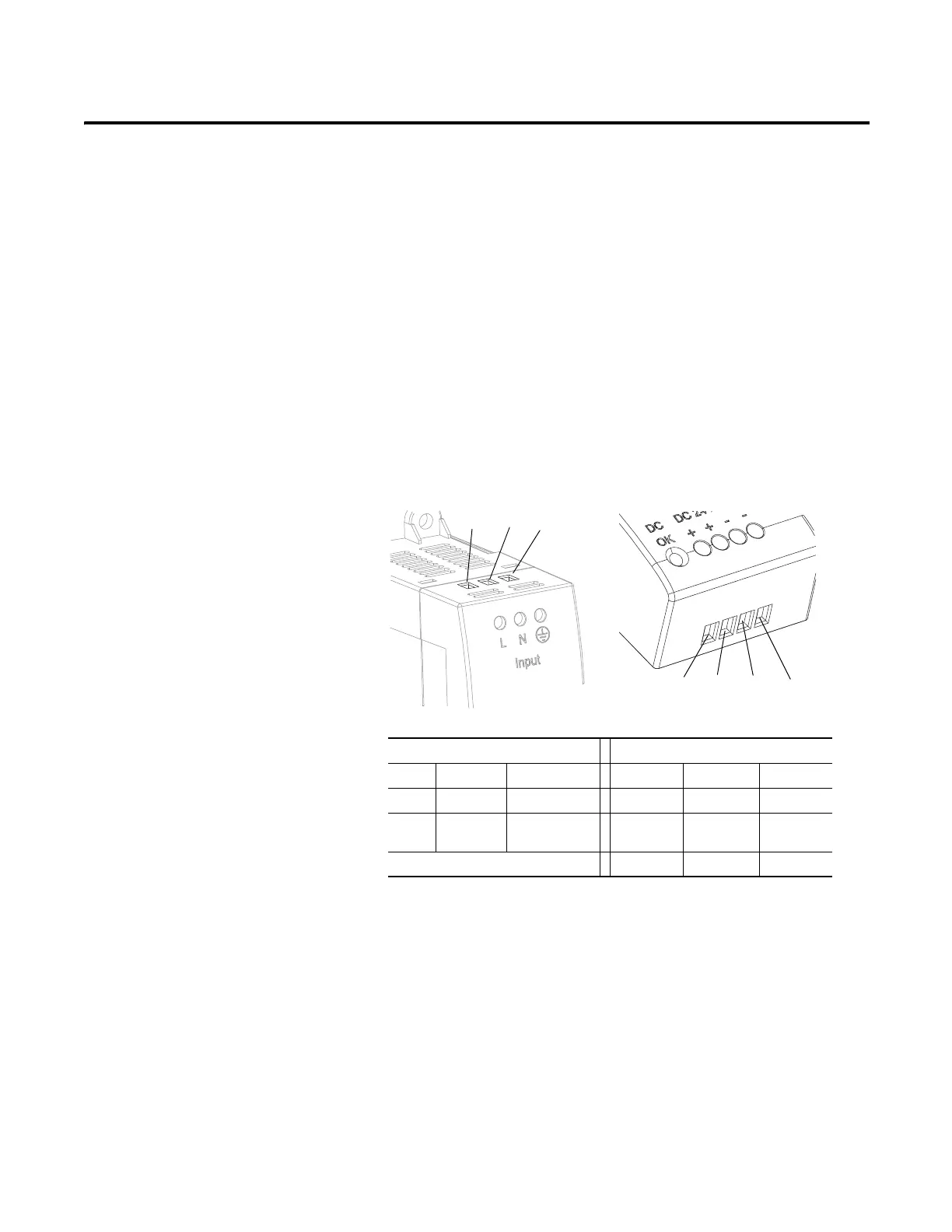

Wire the Module
PAC-1 PAC-2 PAC-3
DC-1 DC-2 DC-3 DC-4
AC Input Connectors DC Output Connectors (DC 24V/ 1.6 A)
PAC-1 AC hot 100…240V AC DC-1 +
PAC-2 AC neutral 100…240V AC DC-2 +
PAC-3 Safety
ground
DC-3 -
DC-4 -
45061
45062
