Quickstarts Appendix E

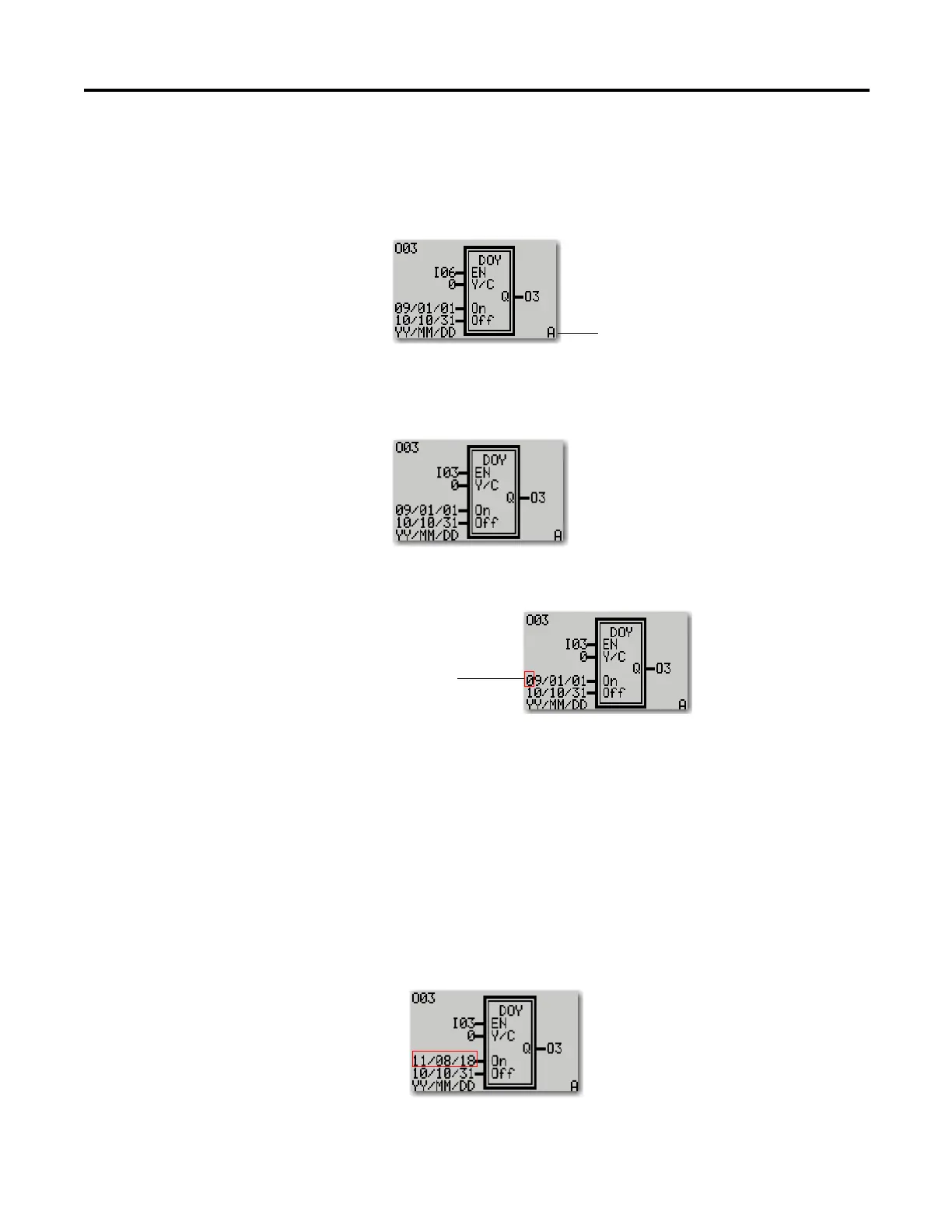

5. Press the RIGHT arrow button once to select the DOY instruction
parameter field.
6. Press the RIGHT arrow button once. The CHANNEL parameter field is
selected and it shows CHANNEL A.
7. Press the RIGHT arrow button to select the EN parameter field.
Press the DOWN arrow button four times to change the EN parameter
value to I03.
8. Press the RIGHT arrow button twice to select the first digit entry in the
ON parameter field.
Change the On date settings to 11/08/18 (YY/MM/DD). To do this,
follow these steps:
a. Press the UP arrow button once to get the digit value of 1.
b. Press the RIGHT arrow button once to select the second entry in the
ON parameter field, then press the UP arrow button twice to turn this
digit value to 1.
c. Press the RIGHT arrow button once to select the third and fourth digit
entries in the ON parameter field, then press the DOWN arrow button
five times to get the digit value 08.
d. Press the RIGHT arrow button once to select the fourth and fifth digit
entries in the ON parameter field, then press the UP arrow button 17
times to get the digit value of 18.
First digit entry in
the ON parameter
To Next Page
