Allen-Bradley Micro820 User Manual

Rockwell Automation Publication 2080-UM005B-EN-E - March 2015 97
Using microSD Cards Chapter 9

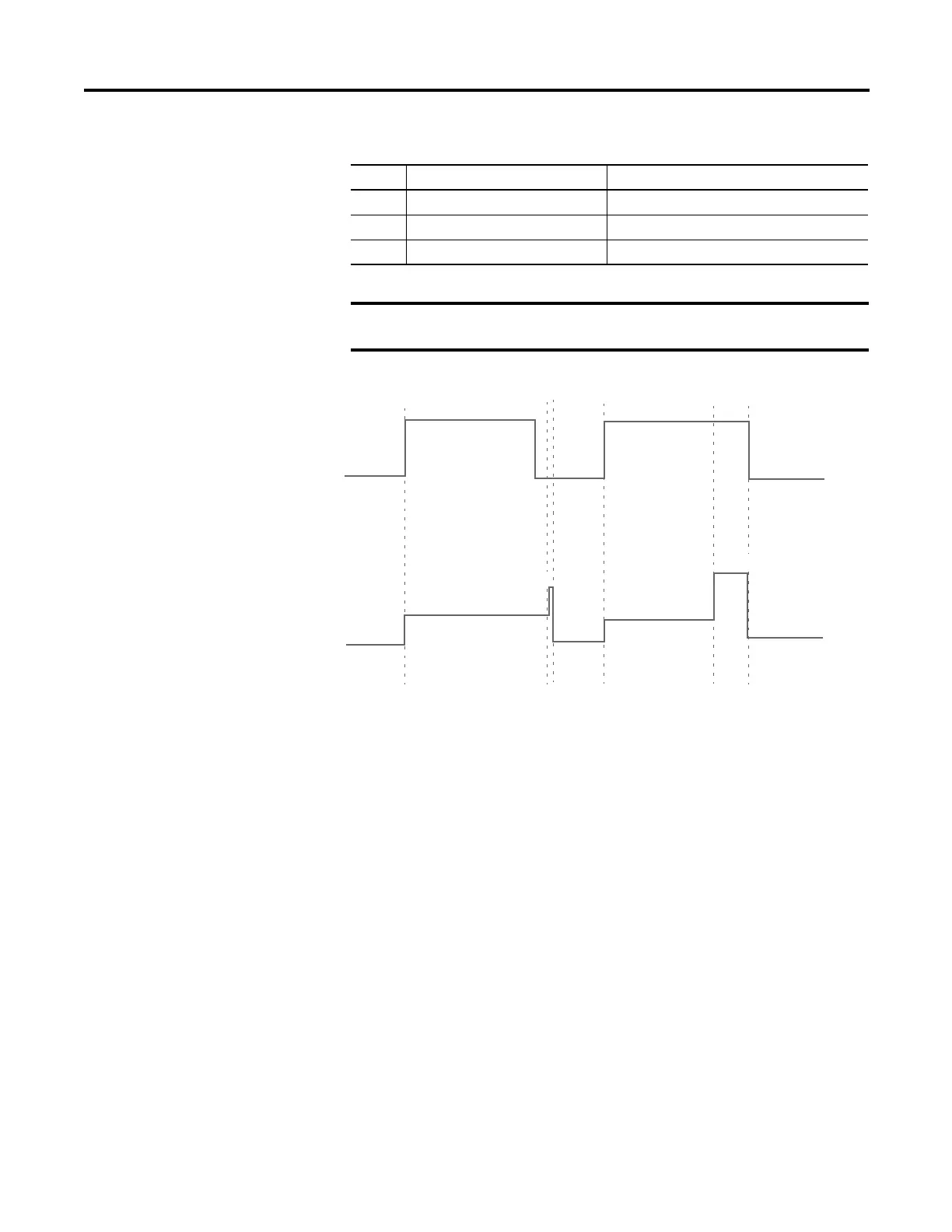

Recipe Function Block Timing Diagram
12 RCP_ERR_DATAFILE_ABSENT Recipe data file is absent.
13 RCP_ERR_DATAFILE_FORMAT Recipe data file contents are wrong.
14 RCP_ERR_DATAFILE_SIZE Recipe data file size is too big (>4K).
IMPORTANT
File access error will be returned during RCP function block execution
when card is full.
RCP Function Block Errors
Error ID Error name Description
Disable(0)
Enable(1)
Disable(0)
Enable(1)
Disable(0)
Idle(0)
Busy(1)
Succeed(2)
Idle(0)
Busy(1)
Error(3)
Idle(0)
Enable(1)
Status(0)
