Allen-Bradley Micro820 User Manual

140 Rockwell Automation Publication 2080-UM005B-EN-E - March 2015
Appendix C Quickstarts
Establish Communications
between RSLinx and a
Micro820 Controller
through USB Port on
2080-REMLCD
This quick start shows you how to get RSLinx RSWho to communicate with a
Micro820 controller through a USB.
RSLinx Classic is installed as part of the Connected Components Workbench
software installation process. The minimum version of RSLinx Classic with full
Micro820 controller support is 3.60.01 (released on December 2013).
1. Power up the Micro820 controller.
2. Plug USB A/B cable directly between your PC and the USB port on the
2080-REMLCD.

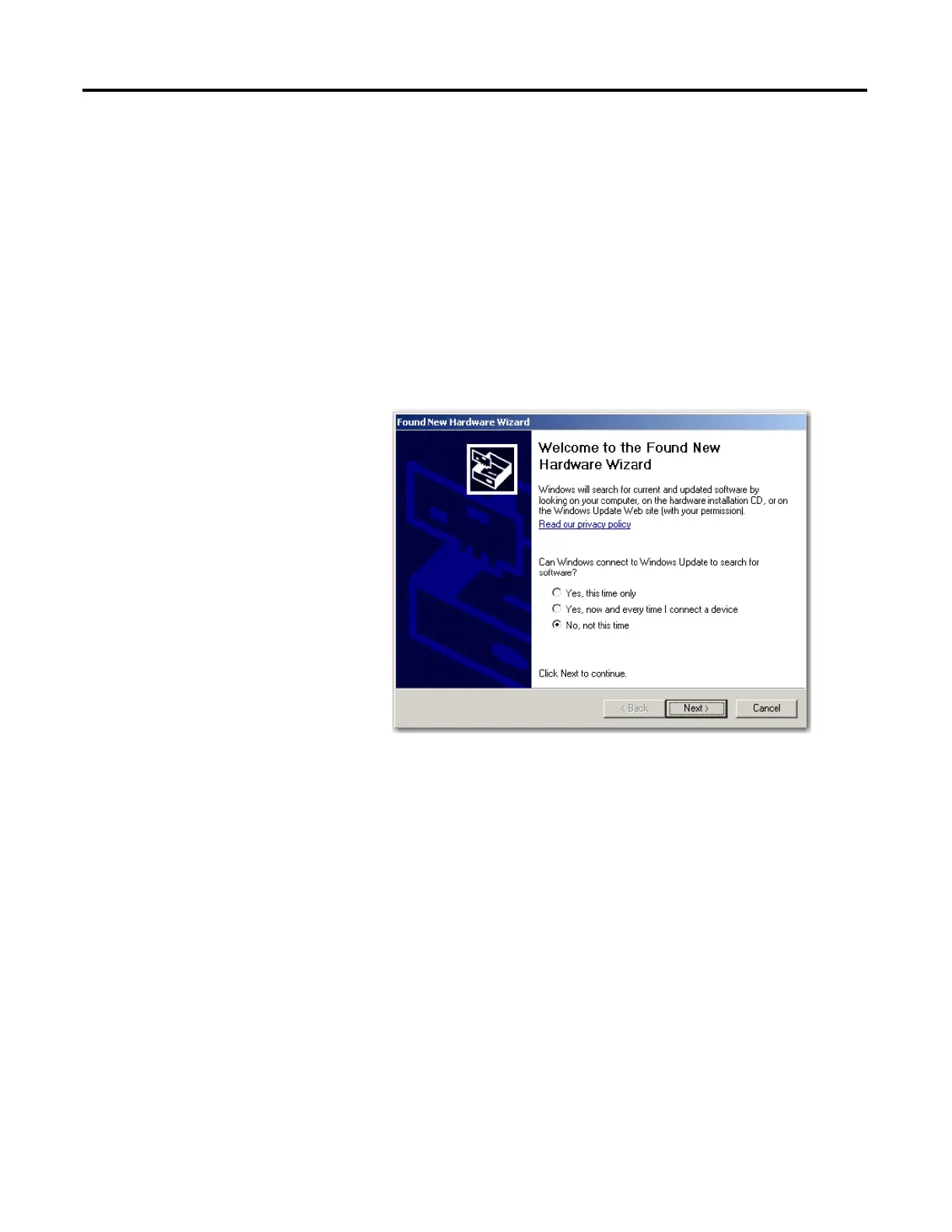

3. Windows should discover the new hardware. Click No, not this time and
then click Next.
