Allen-Bradley Micro820

100 Rockwell Automation Publication 2080-UM005B-EN-E - March 2015
Chapter 9 Using microSD Cards

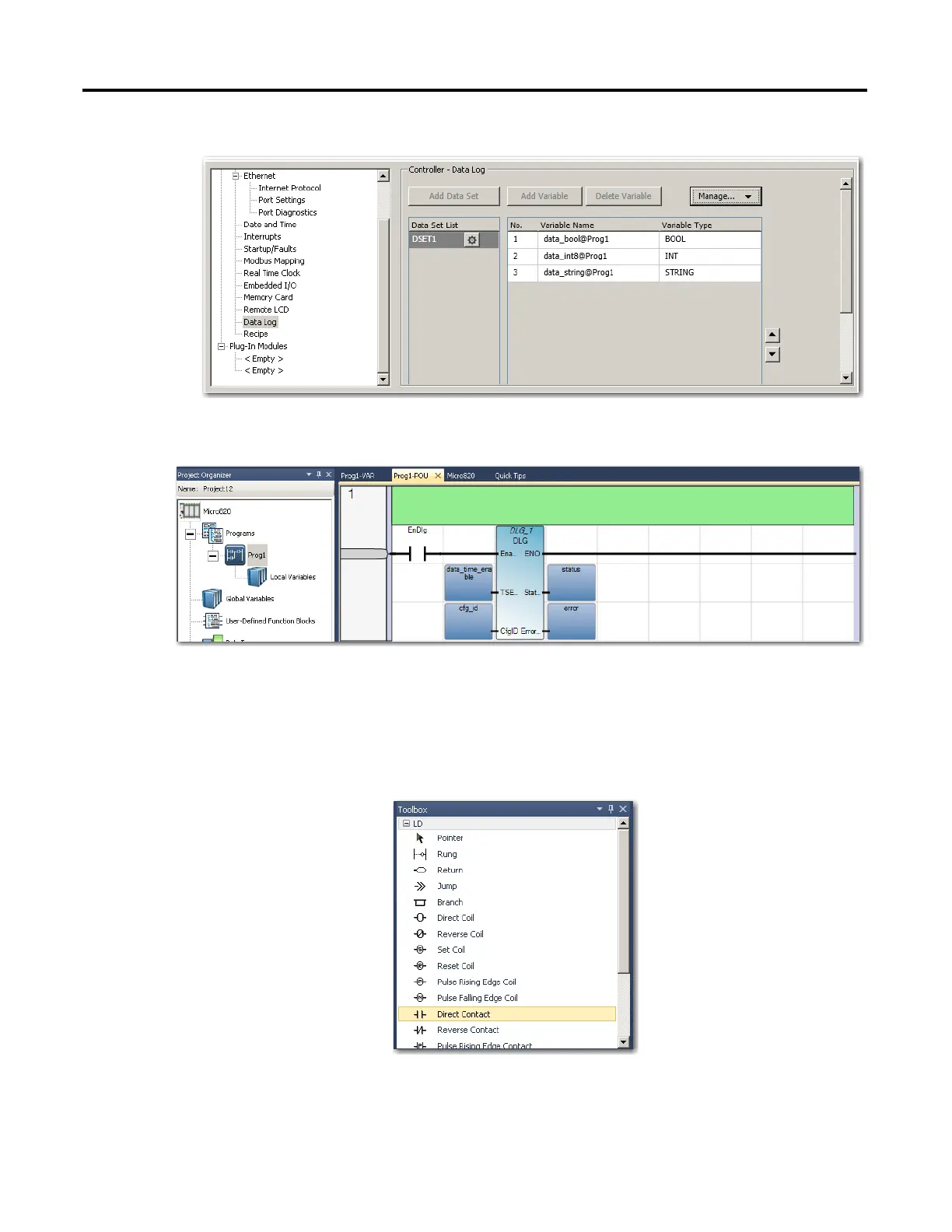

Create datalog ladder program
1. Launch Connected Components Workbench. Create a user program for
your Micro820 controller.
2. Right-click Programs. Select Add New LD: Ladder Diagram. Name the
Program (for example, Prog1).
3. From the Toolbox, double-click Direct Contact to add it to the rung.
4. From the Toolbox, double-click Block to add it to the rung.
