Chapter 9 Using microSD Cards
Create Recipe ladder program

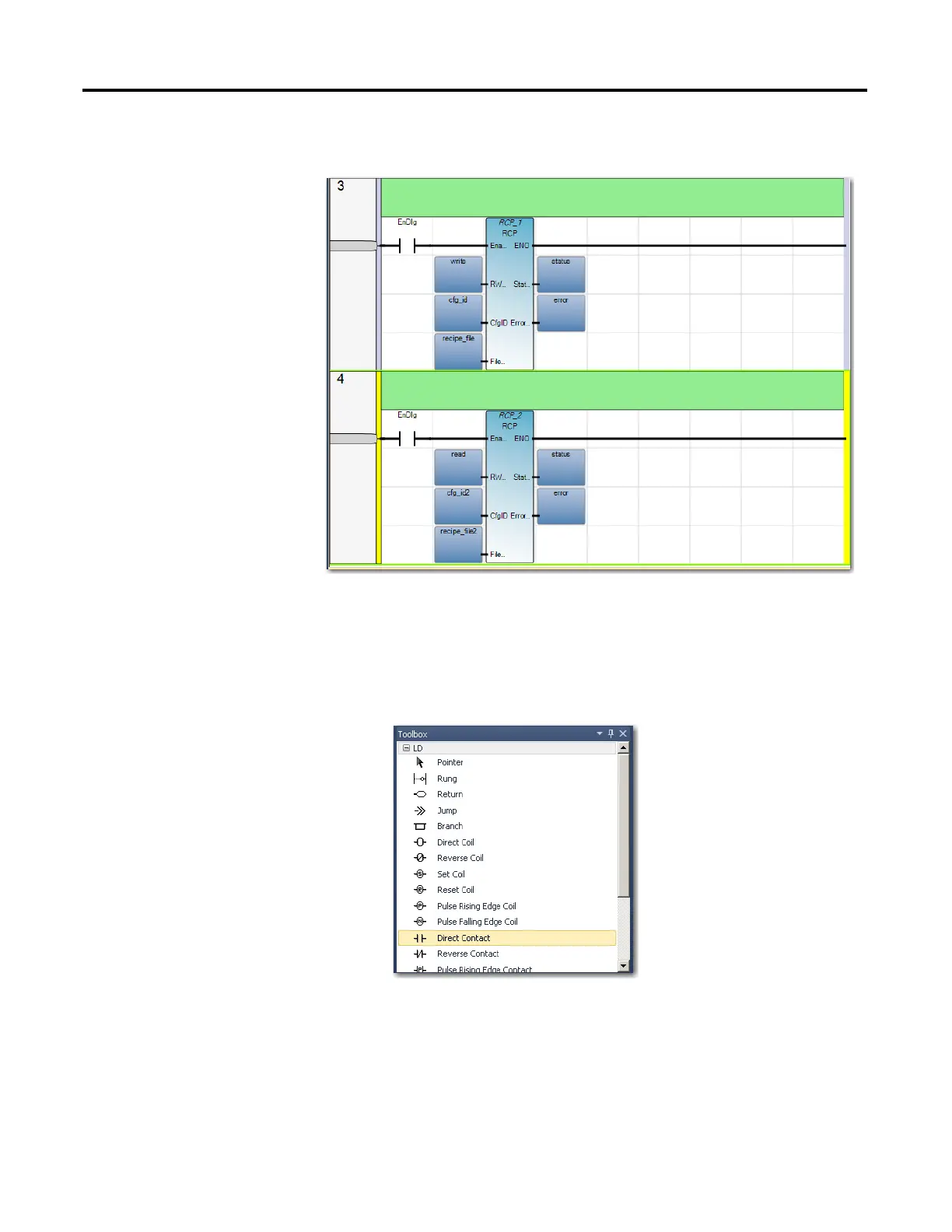

1. Launch Connected Components Workbench. Create a user program for
your Micro820 controller.
2. Right-click Programs. Select Add New LD: Ladder Diagram. Name the
Program (for example, Prog2).
3. From the Toolbox, double-click Direct Contact to add it to the first rung.
4. From the Toolbox, double-click Block to add it to the rung.
