Allen-Bradley Micro820 User Manual

42 Rockwell Automation Publication 2080-UM005B-EN-E - March 2015
Chapter 4 Wire Your Controller

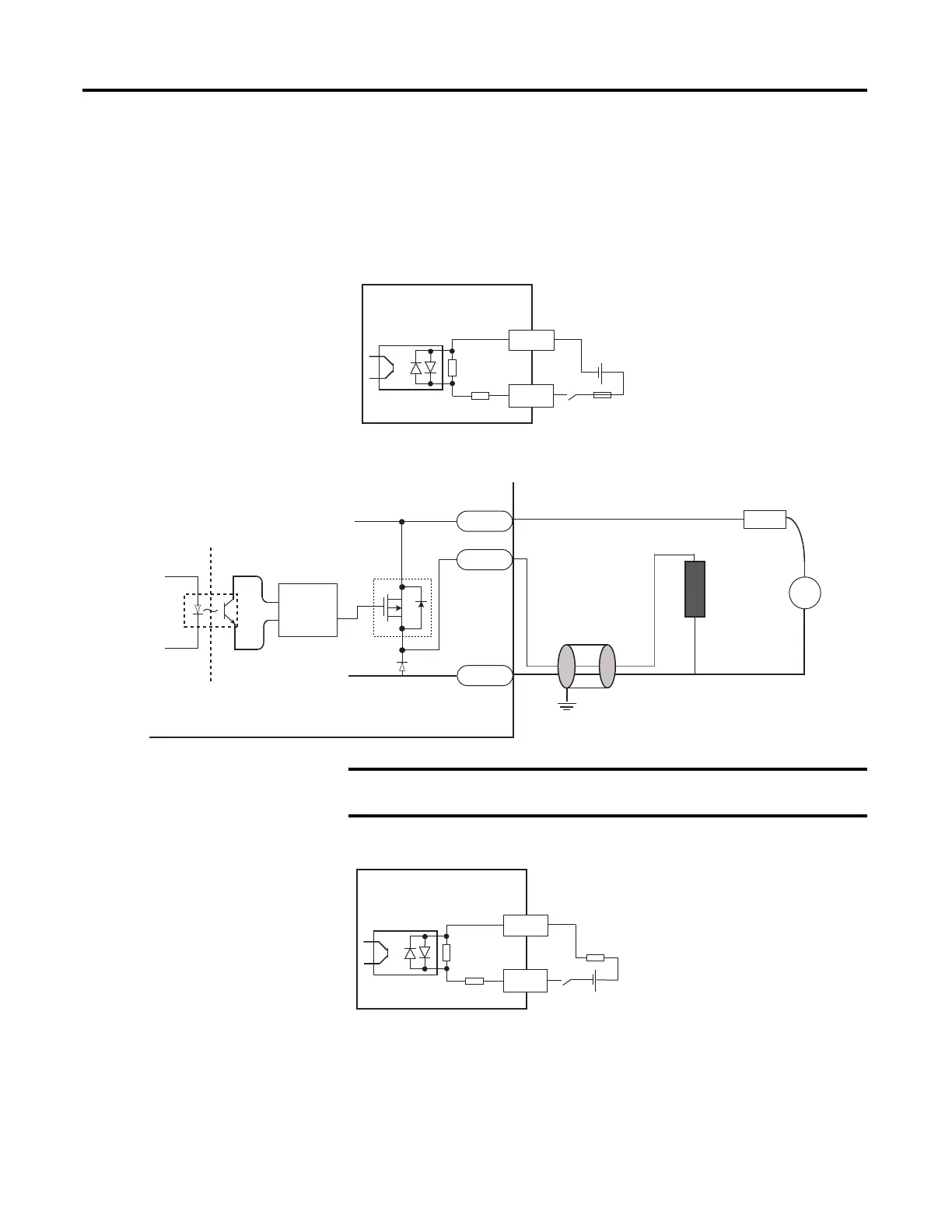

Wiring Examples
Examples of sink/source, input/output wiring are shown below.
Sink Input Wiring Example
Source Output Wiring Example
Source Input Wiring Example
Com
Fuse
24V
DC
I/P
+
~
45627
D
DC COM
OUT
+V DC
S
G
Logic side
User side
+
–
24V Supply
Load
Fuse
45626
IMPORTANT
For 2080-LC20-20QBB(R) discrete output 06, shielded cable is required if
the output is used as PWM. Otherwise, unshielded cable can be used.
Com
Fuse
24V
DC
I/P
+
~
45625

Allen-Bradley Micro820 Specifications

General

Processor	32-bit
Power Supply	24V DC
Programming Software	Connected Components Workbench
Series	Micro800
Mounting	DIN Rail
Memory	Embedded
Expansion	Yes
Controller Type	Programmable Logic Controller (PLC)
Communication	Ethernet/IP
Programming Language	Ladder Diagram, Function Block Diagram, Structured Text
I/O	Embedded
