Allen-Bradley Micro820 User Manual

58 Rockwell Automation Publication 2080-UM005B-EN-E - March 2015
Chapter 5 Communication Connections

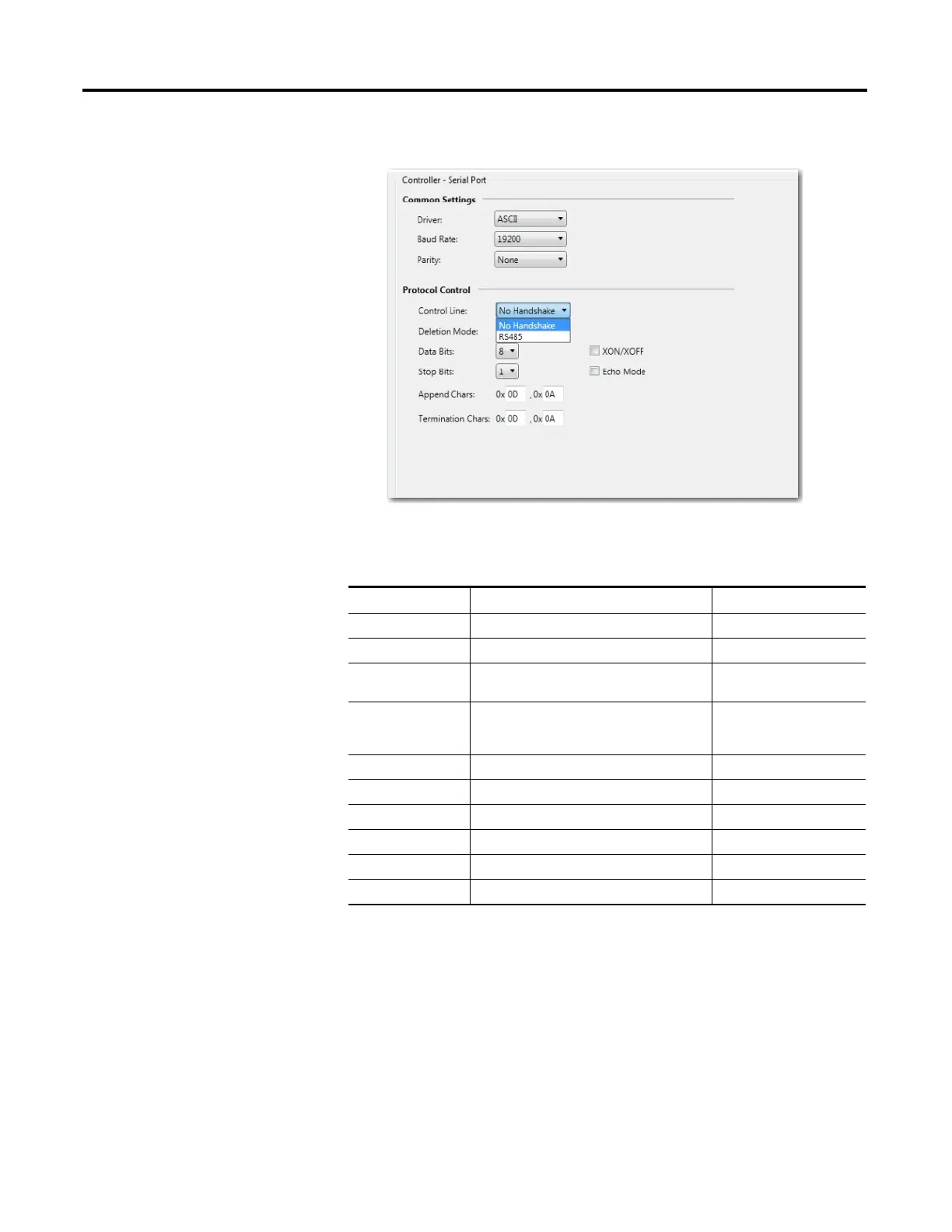

2. Select ASCII on the Driver field.
3. Specify baud rate and parity.
ASCII Parameters
Parameter Options Default
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400 19200
Parity None, Odd, Even None
Control Line RS485
No Handshake
No Handshake
Deletion Mode CRT
Ignore
Printer
Ignore
Data Bits 7, 8 8
XON/XOFF Enabled or Disabled Disabled
Stop Bits 1, 2 1
Echo Mode Enabled or Disabled Disabled
Append Chars 0x0D,0x0A or user-specified value 0x0D,0x0A
Termination Chars 0x0D,0x0A or user-specified value 0x0D,0x0A

Allen-Bradley Micro820 Specifications

General

Processor	32-bit
Power Supply	24V DC
Programming Software	Connected Components Workbench
Series	Micro800
Mounting	DIN Rail
Memory	Embedded
Expansion	Yes
Controller Type	Programmable Logic Controller (PLC)
Communication	Ethernet/IP
Programming Language	Ladder Diagram, Function Block Diagram, Structured Text
I/O	Embedded
