Preface
MicroLogix 1000 Programmable Controllers User Manual
9–4

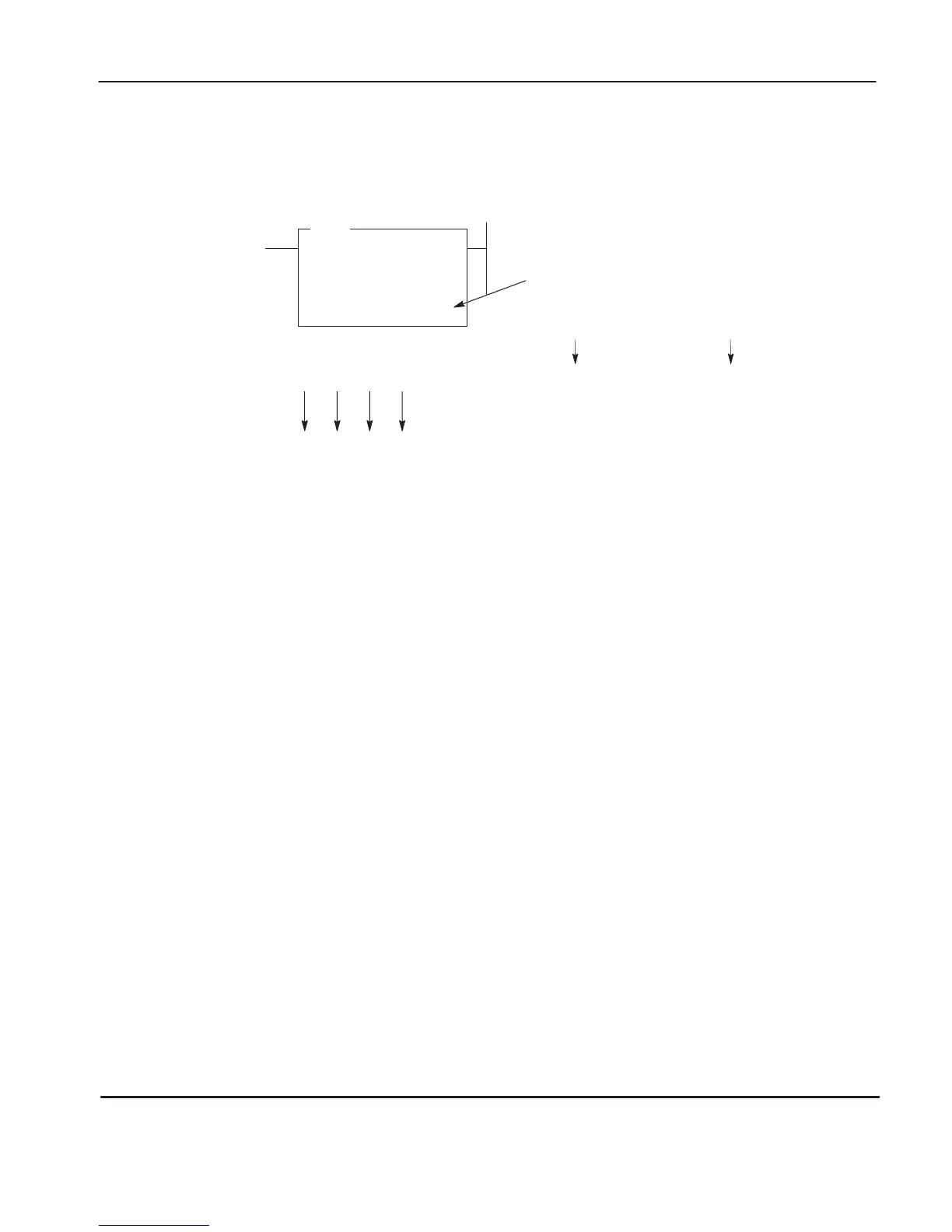

Example
The
integer value 9760 stored at N7:3 is converted to BCD and the BCD equivalent
is stored in N7:0. The maximum BCD value is 9999.
TOD
TO BCD
Source N7:3
9760
Dest N7:0
9760
MPS displays the destination value in
BCD format.
9760
9760
N7:3 Decimal
0010 0110 0010 0000
N7:0 4-digit BCD 1001 0111 0110 0000
MSB LSB
