MicroLogix 1000 Programmable Controllers User Manual

D–4

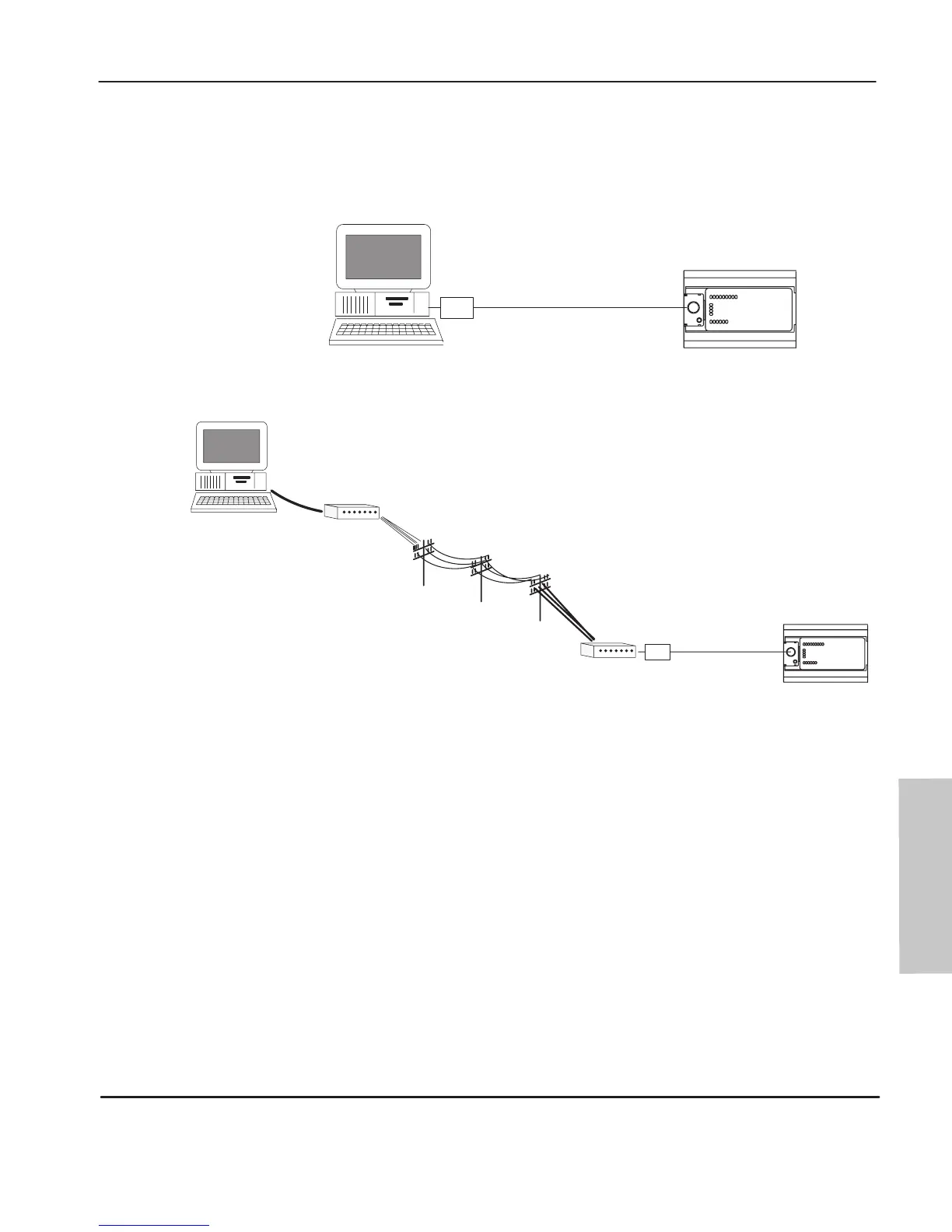

Example DF1 Full-Duplex Connections

For information about required network connecting equipment, see chapter 3,

Connecting the System.

1761-CBL-PM02

Micro Controller

Personal Computer

Optical Isolator

➀

(recommended)

Personal

Computer

Modem

Cable

1761-CBL-PM02

Micro Controller

Optical Isolator

➀

(recommended)

➀ We

recommend using an AIC+, catalog number 1761-NET

-AIC, as your optical isolator

. See page 3–12 for

specific AIC+ cabling information.
