MicroLogix Remote Packet Support
Series D MicroLogix controllers and all MicroLogix analog controllers can respond
to communication packets (or commands) that do not originate on the local DH-485
network. This is useful in installations where communication is needed between the
DH-485 and DH+ networks.

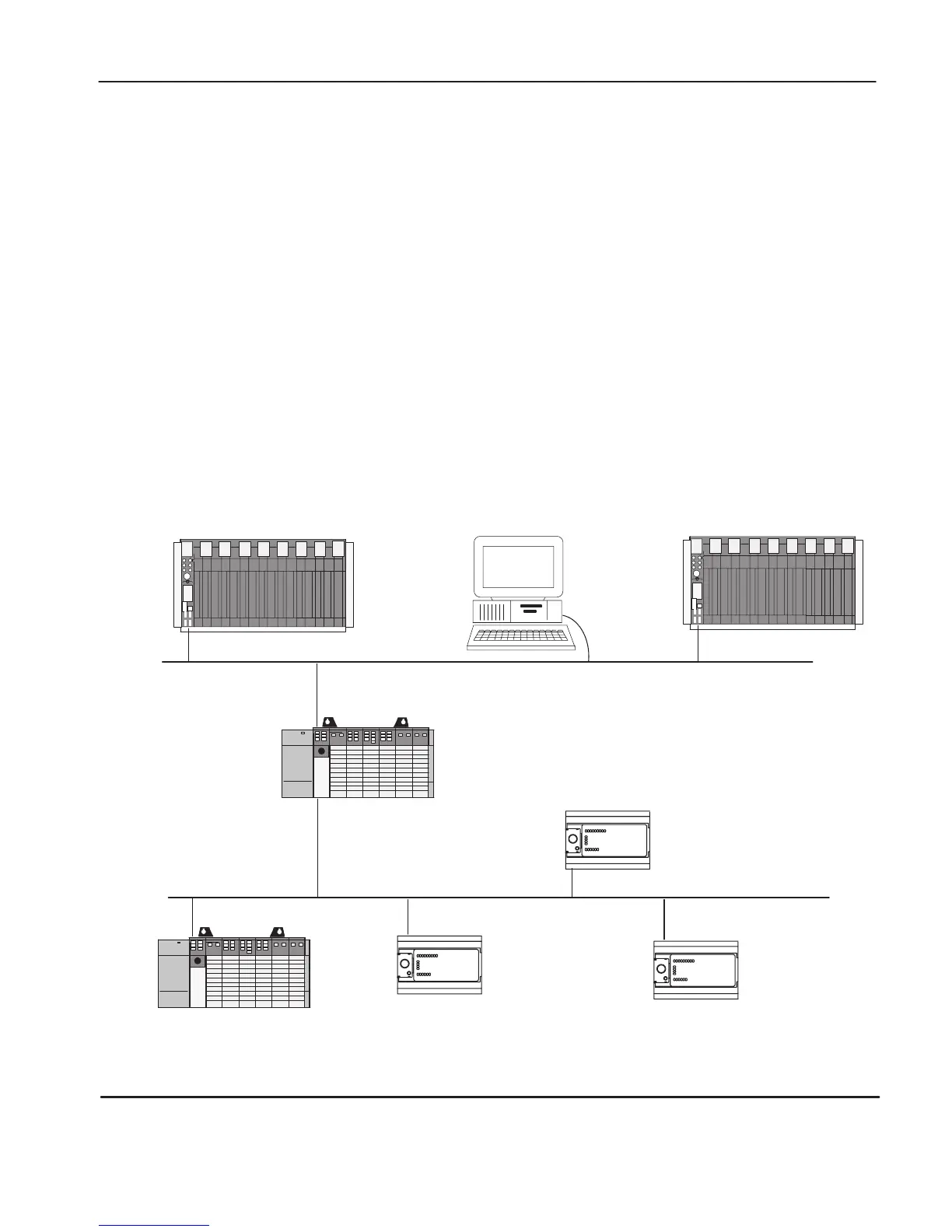

The example below shows how to send messages from a PLC device or a PC on the
DH+ network to a MicroLogix 1000 controller on the DH-485 network. This
method uses an SLC 5/04 processor bridge connection.
When using this method:
• PLC-5 devices can send read and write commands to MicroLogix controllers.
• MicroLogix 1000 controllers can respond to MSG instructions received. The
MicroLogix controllers cannot initiate MSG instructions to devices on the DH+
network.
• PC can send read and write commands to MicroLogix controllers.
• PC can do remote programming of MicroLogix controllers.
DH+ Network
PLC-5
SLC 5/04
Modular I/O Controller
DH-485 Network
MicroLogix 1000
Programmable
Controller
MicroLogix 1000
Programmable
Controller
MicroLogix 1000
Programmable
Controller
PLC-5
SLC 5/03 System
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1000 Specifications

General

Communication Ports	RS-232
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Manufacturer	Allen-Bradley
Category	Controller
Series	MicroLogix
Programming Language	Ladder Logic
Input Voltage	24V DC or 120/240V AC
I/O Points	10 to 32 points
Processor Type	8-bit
Operating Temperature	0…55 °C (32…131 °F)
Processor	8-bit
