PanelView Component HMI Terminals 15
Publication 2711C-IN001H-EN-P - July 2014
The panel clamp will release and return to its unlocked position.
2. Reinstall the terminal in the panel after unlocking all the panel clamps.
Mount the C400 or C1000 Terminal in a Panel
Mounting levers secure the PanelView Component C1000 or C400 terminal to the panel.
Follow these steps to mount the terminal in a panel.
ATTENTION: Follow these guidelines when mounting the terminal in a panel.
• Disconnect all electrical power from the panel before making the panel cutout.
• Make sure the area around the panel cutout is clear.
• Take precautions so metal cuttings do not enter any components already installed in the
panel.
• Failure to follow these instructions may result in personal injury or damage to panel
components.

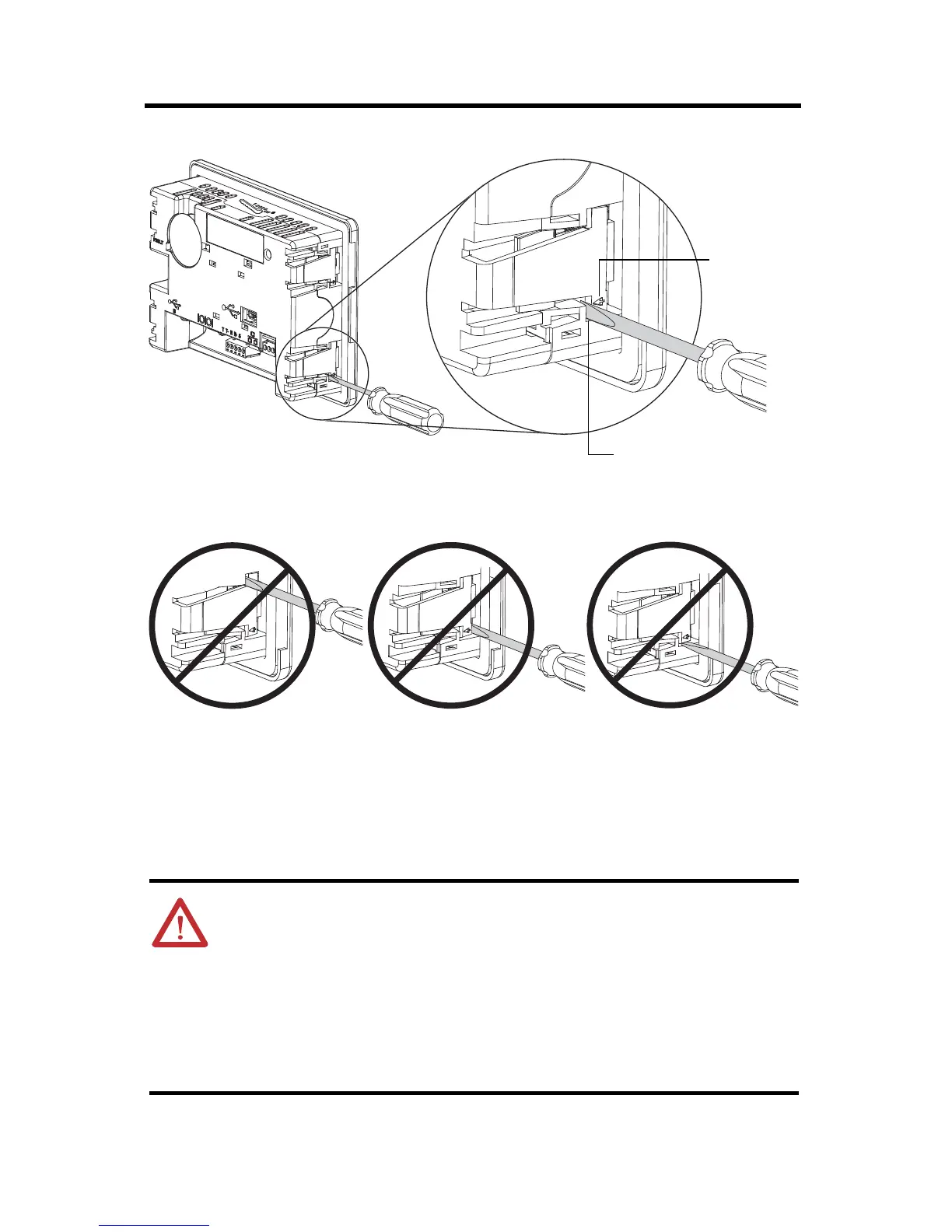

Other incorrect locations for inserting the screwdriverIncorrect side of clamp
Arrow icon
44876
44875
Insert screwdriver here.
