16 PanelView Component HMI Terminals
Publication 2711C-IN001H-EN-P - July 2014
1. Cut an opening in the panel using the template shipped with the terminal.
2. Make sure the sealing gasket is properly positioned on the terminal.
This gasket forms a compression type seal. Do not use sealing compounds.
3. Place the terminal in the panel cutout.
4. Insert all mounting levers into the mounting slots on the terminal.
Slide each lever until the short, flat side of lever touches the surface of the panel.
5. When all levers are in place, slide each lever an additional notch or two until you hear a click.
6. Rotate each lever in direction indicated until it is in the final latch position.
The terminal temperature must be greater than 0 °C (32 °F) during panel installation.

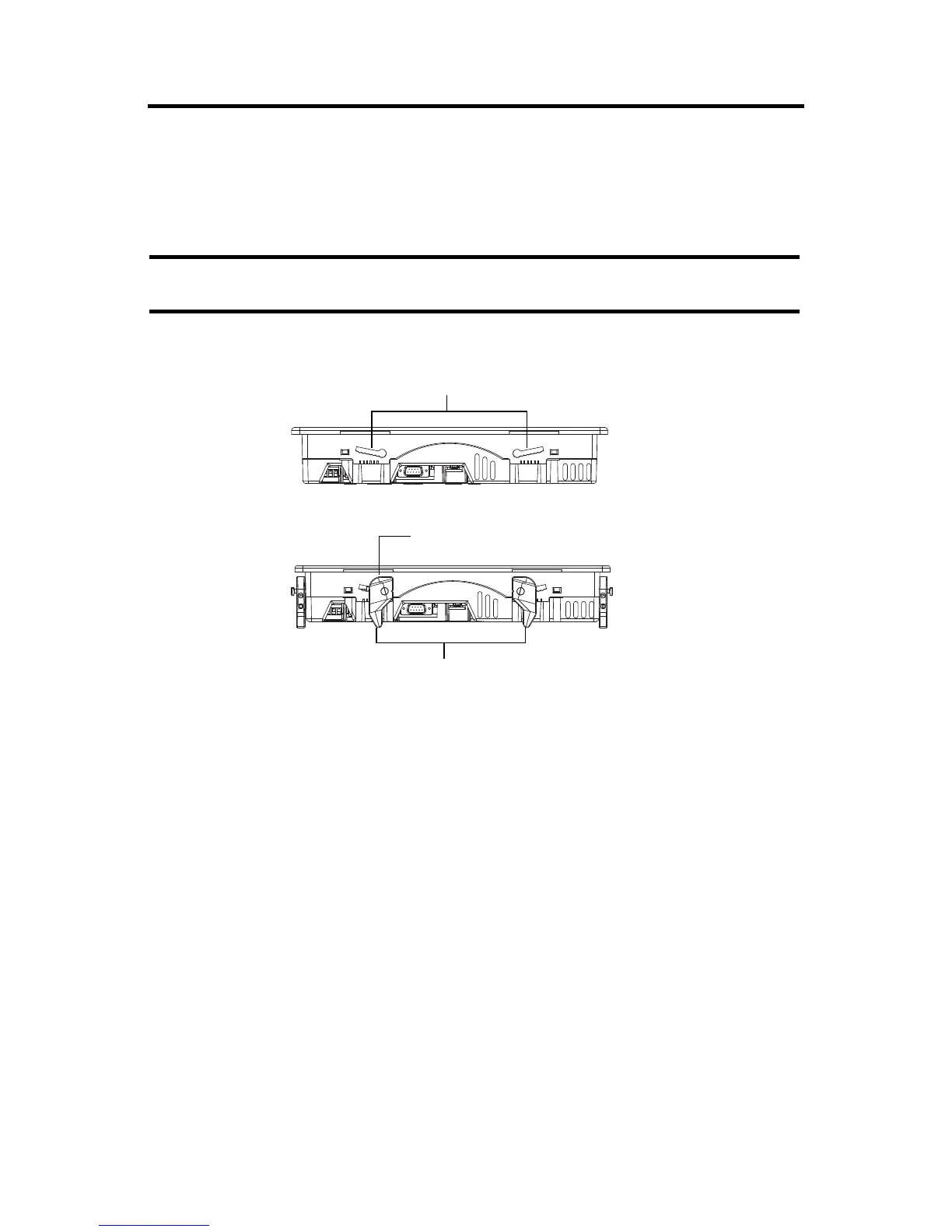

Mounting slots
Short, flat side of mounting lever
44878
44879
Mounting levers
