Allen-Bradley PanelView Plus 600 Installation Instructions

18 PanelView Plus and PanelView Plus Compact 400 and 600 Terminals
Publication 2711P-IN002G-EN-P - November 2009
Connect DC Power

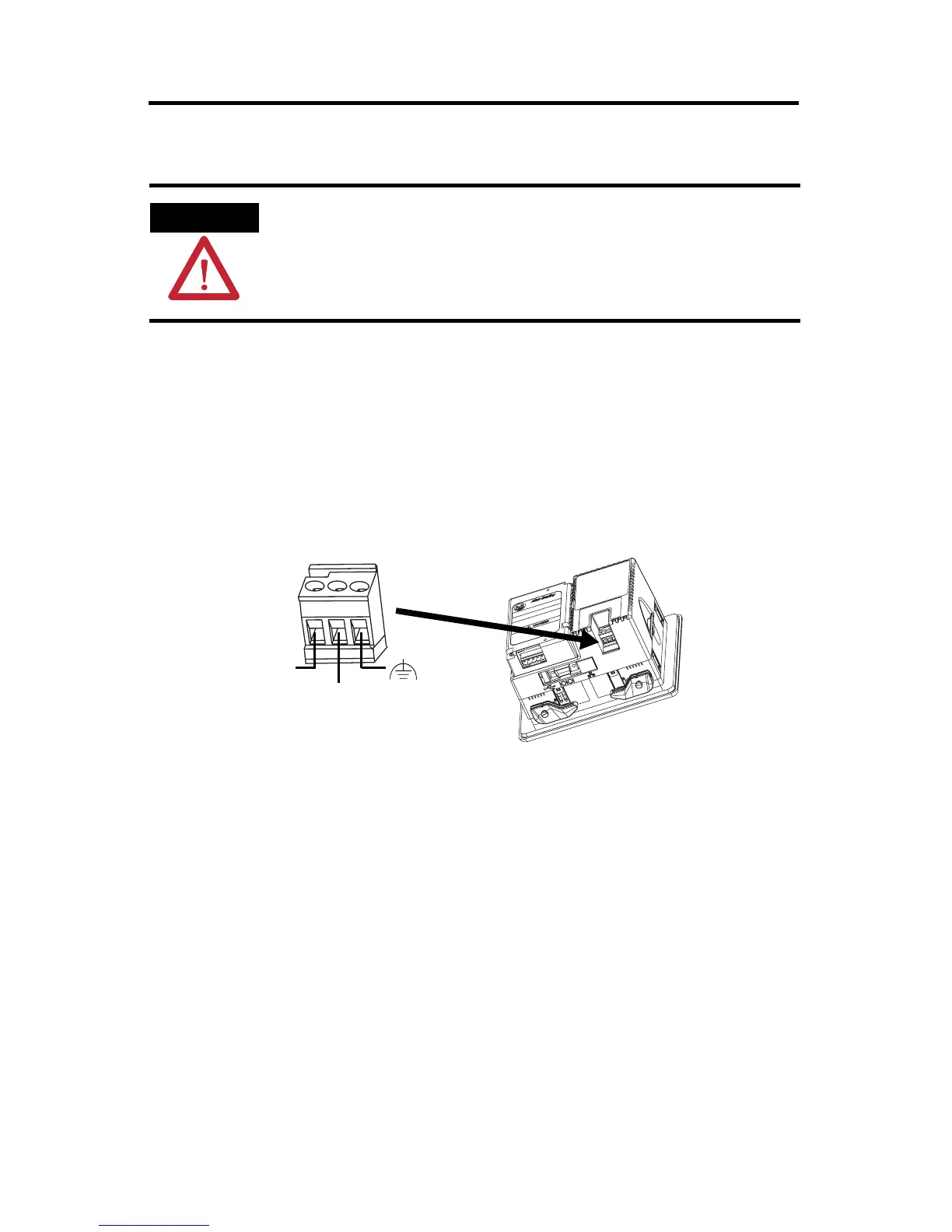

Follow these steps to connect DC power.
1. Disconnect power to the terminal.
2. Secure the DC power wires to the terminal block screws.
Follow the markings on terminal blocks and terminal for proper connections.
3. Secure the functional earth ground wire to the functional earth ground terminal screw
on the input power terminal block.
4. Apply 24V DC power to the terminal.
WARNING
Explosion Hazard - Do not disconnect equipment unless power has been switched off and
area is known to be nonhazardous.
Disconnect all power before installing or replacing components. Failure to disconnect
power may result in electrical shock and/or damage to the terminal.
DC+
DC-
Functional
Earth Ground
to Ground Bus

Allen-Bradley PanelView Plus 600 Specifications

General

Resolution	320 x 240 pixels
Touchscreen	Analog resistive
Backlight	LED
Operating System	Windows CE
Power Supply	24V DC
Communication Ports	Ethernet, RS-232
Memory	64 MB RAM
Operating Temperature	0°C to 50°C
Enclosure Rating	NEMA 4X
Processor	XScale processor
