Rockwell Automation Publication 750-PM001N-EN-P - February 2017 315
Troubleshooting Chapter 6
158 DigIn Cfg C Alarm 2 Digital input conflict. Input functions that cannot be assigned to the
same digital input have been selected (for example run and stop).
Correct Digital Input configuration.

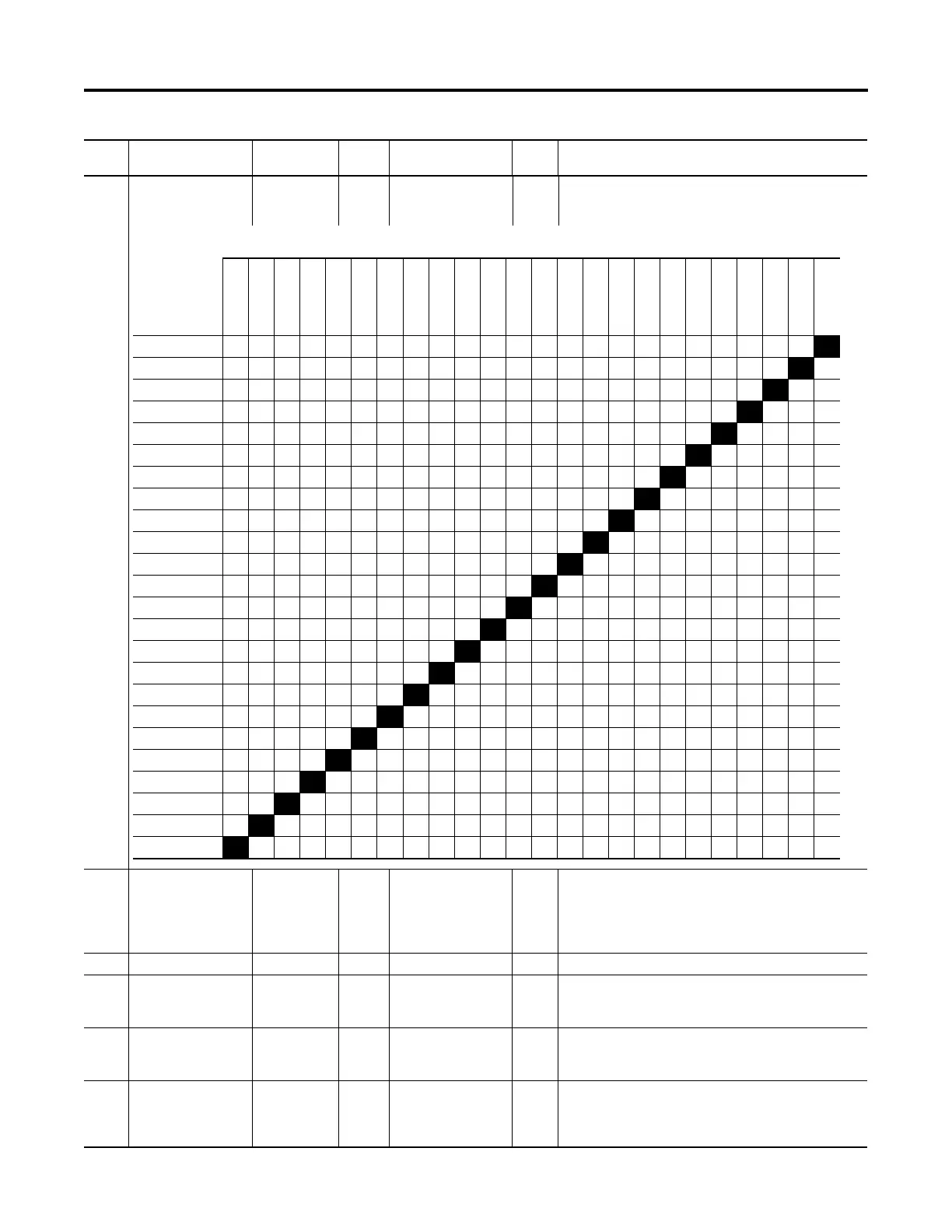

Digital Input combinations marked “
•” cause an alarm.
161 Sleep Config Alarm 2 There is a Sleep/Wake configuration error. With Sleep Wake Mode =
Direct, possible causes include:
Drive is stopped and Wake Level < Sleep Level.
Stop=CF, Run, Run Fwd, or Run Rev is not configured in Digital Input
functions.
162 Waking Alarm 1 The Wake timer is counting toward a value that starts the drive.
168 HeatSinkUnderTmp Resettable Fault Heatsink temperature sensor is reporting a value below -18.7 °C (-
1.66 °F) or the sensor feedback circuit is open.
See P943 [Drive Temp Pct] and/or P944 [Drive Temp C].
169 PWM Freq Reduced Alarm 1 The PWM Frequency has been reduced from the value set in P38
[PWM Frequency] due to excessive IGBT junction temperatures.
See also P420 [Drive OL Mode].
170 CurLimit Reduced Alarm 1 The current limit value has been reduced from the value set in
[Current Limit n] due to excessive IGBT junction temperatures or P940
[Drive OL Count] = 95 %.
See also P420 [Drive OL Mode].
Event
No.
Fault/Alarm Text Type Fault
Action
Configuration
Parameter
Auto
Reset
Description/Action(s)
