Allen-Bradley powerflex 700 Technical Data

PowerFlex 700 Technical Data
24 20B-TD001F-EN-P
Frame 9 Blower Operation
Frame 9 drives use a single-phase capacitor bank fan and a three-phase blower for cooling. Proper phasing must be
supplied to terminals R, S, and T of the Power Terminal Block (AC drives) or the Blower Terminal Block (DC drives) to
assure correct blower rotation. To verify this, a Phase Monitor is used.

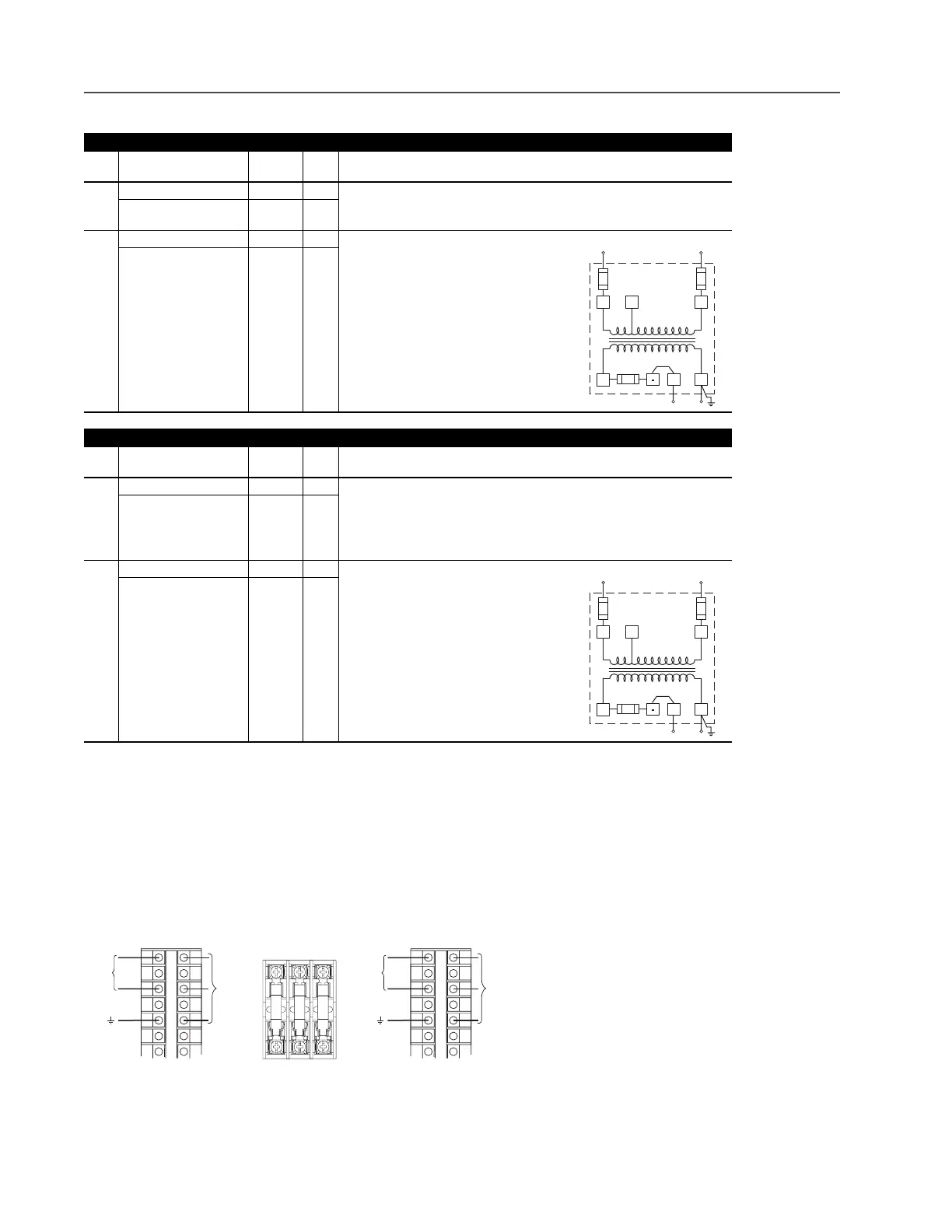

Fan/Blower Terminal Blocks
Frame 8 Fan Connections
Drive
Type Enclosure
Rating
(120VAC)
No. of
Fans Connect at …
DC
Input
IP00, NEMA/UL Type Open 500 VA 1 TB9
Requires user supplied 120V AC. See page 20 for TB location and page 24 for
terminal designations.
IP20, NEMA/UL Type 1 500 VA 1
AC
Input
IP00, NEMA/UL Type Open 500 VA 1 TB9
A transformer matches the input line voltage to the
internal fan voltage. If line voltage is different than
the voltage class specified on the drive nameplate,
it may be necessary to change transformer taps
(see diagram).
IP20, NEMA/UL Type 1 500 VA 1
Frame 9 Fan Connections
Drive
Type Enclosure
Rating
(120VAC)
No. of
Fans Connect at …
DC
Input
IP00, NEMA/UL Type Open 500 VA 2 TB9
Requires user supplied 120V AC for cap. bank fan and phase monitor.
Blower Terminal Block
Three-phase power must be supplied to the Blower TB.
See page 20 for TB locations and page 24 for terminal designations.
IP20, NEMA/UL Type 1 500 VA 2
AC
Input
IP00, NEMA/UL Type Open 500 VA 2 TB9
A transformer matches the input line voltage to the
internal voltage used for the capacitor fan and
phase detector module. If the line voltage is
different than the voltage class specified on the
drive nameplate, it may be necessary to change
transformer taps (as shown).
IP20, NEMA/UL Type 1 500 VA 2
Input Line Voltage
480/400V AC, 50/60 Hz
F2
H3
480 400
F3
to TB9
JMP
0
115 0
F1
H2H1
X1 XF X2
Input Line Voltage
480/400V AC, 50/60 Hz
F2
H3
480 400
F3
to TB9
JMP
0
115 0
F1
H2H1
X1 XF X2
120V
120V
N
120V
AC Input
N
PE
PE
7
Line
Neutral
To Fa n(s )
Ground
NC
RTS
120V
120V
N
120V
AC Input
N
PE
PE
7
Line
Neutral
To Fa n(s )
Ground
NC
TB9 (Frames 8…10)
TB10 (Frame 10)
TB12
(Frame 10, AC Input, IP20 Only)
Blower TB
(Frame 9)
