PowerFlex 700 Technical Data
50 20B-TD001F-EN-P

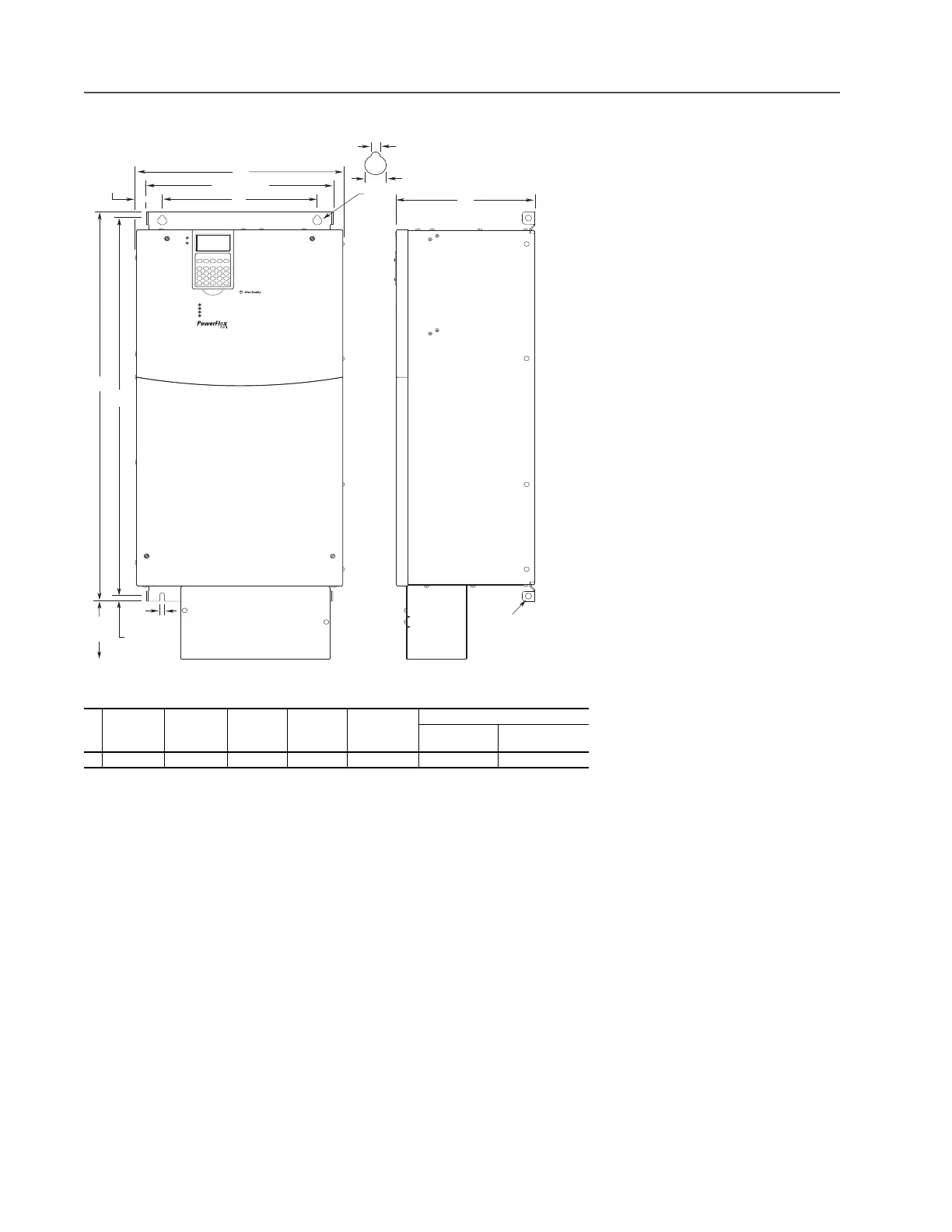

Frame 6
Dimensions are in millimeters and (inches)
Frame
(1)
(1)
Refer to page 47 for frame information.
A (Max.) B
(2)
(2)
Junction Box can be removed if drive is mounted in a cabinet.
C (Max.) DE
Approx. Weight
(3)
kg (lbs.)
(3)
Weights include HIM and Standard I/O. Add 13.60 kg (30.0 lbs.) for the following drives; 20BB260, 20BC260 and 20BD248.
Drive Drive & Packaging
6 403.9 (15.90) 850.0 (33.46) 275.5 (10.85) 300.0 (11.81) 825.0 (32.48) 71.44 (157.5) 100.9 (222.0)
E
13.5 (0.53)
126.3
(4.97)
8.5 (0.33)
B
Lifting Holes
4 Places
12.7 (0.50) Dia.
D
C
A
360.6 (14.20)
Detail
18.0 (0.71)
8.5 (0.33)
49.6 (1.95)

Allen-Bradley powerflex 700 Specifications

General

Series	PowerFlex 700
Category	AC Drive
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Enclosure	Type 1
Control Method	Sensorless Vector
Communication	EtherNet/IP, ControlNet, DeviceNet, PROFIBUS DP, Modbus
