Allen-Bradley powerflex 700 - Motor Control File

PowerFlex 700 Technical Data
58 20B-TD001F-EN-P

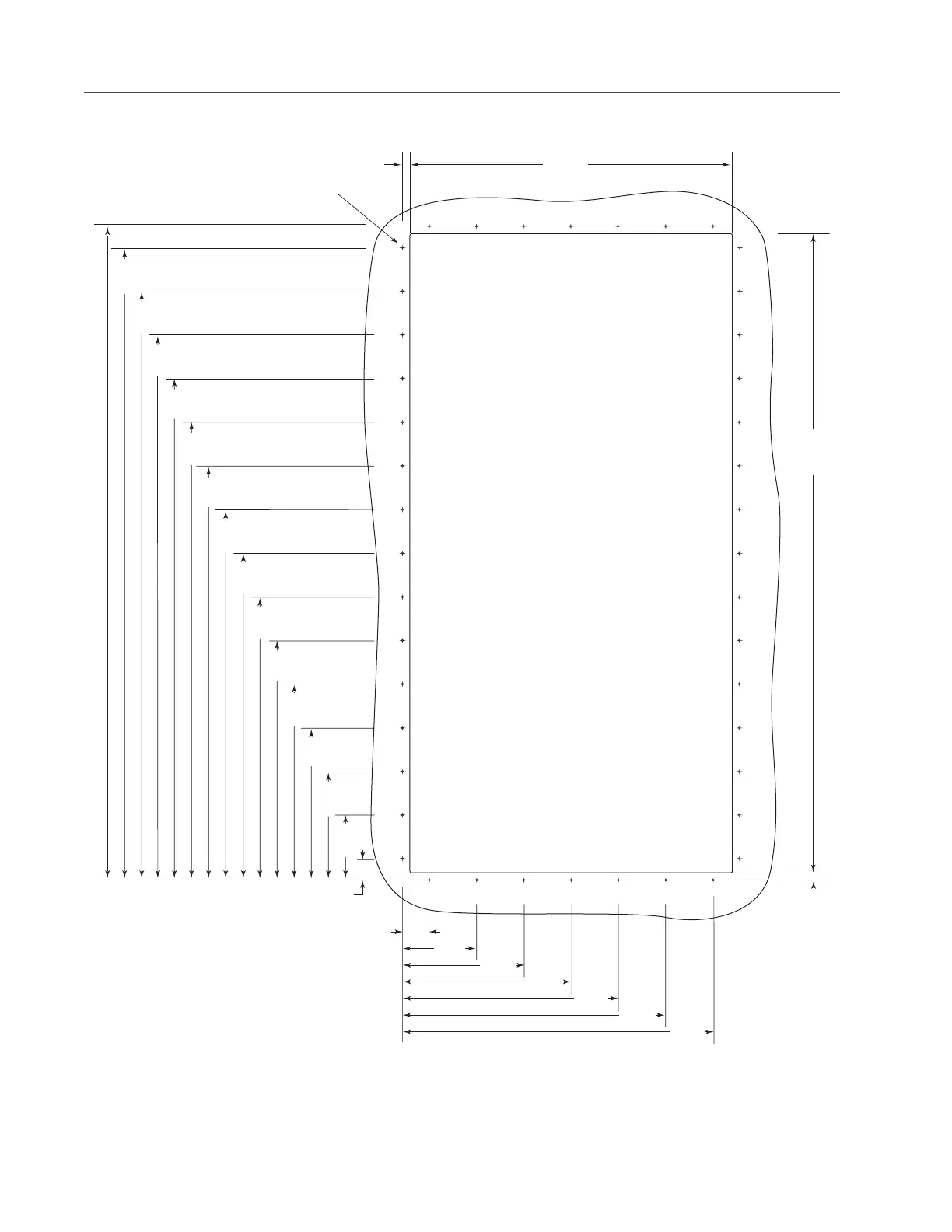

Frame 6 Flange Mount Cutout
Dimensions are in millimeters and (inches)
532.0
(20.90)
12.0
(0.50)
1043.0
(41.10)
971.0
(38.20)
899.0
(35.40)
827.0
(32.60)
755.0
(29.70)
683.0
(26.90)
611.0
(24.10)
539.0
(21.20)
467.0
(18.40)
395.0
(15.60)
323.0
(12.70)
251.0
(9.90)
179.0
(7.00)
107.0
(4.20)
35.0
(1.40)
1078.0
(42.40)
4.00 (0.157) Dia. Holes (44 Places)
in Minimum 14 GA. (1.9) Steel
Mounting Surface. Deburr Pilot Holes
and Drive Cutout.
1054.0
(41.5)
Cutout
12.0
(0.50)
44.0
(1.70)
122.0
(4.80)
200.0
(7.90)
278.0
(10.90)
356.0
(14.00)
434.0
(17.10)
512.0
(20.20)
